M6119265

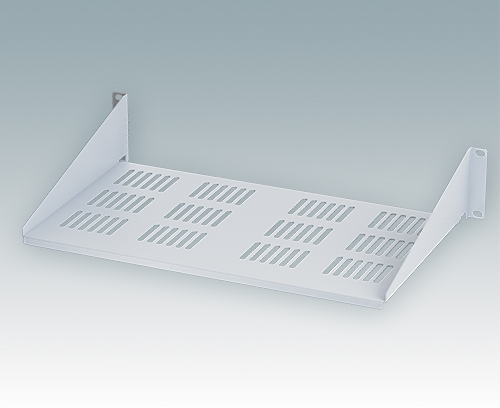

19"x2U Cantilever Rack Shelf

Universal 19" cantilever rack shelf designed to mount to any standard 19" rack or cabinet. Allows easy installation of equipment that does not have any built-in rack mounting facilities. The shelf is made of CR4 mild steel and is painted in a tough powder polyester paint finish. Slots in the bottom aid in-rack ventilation. Other sizes can be made to order.

Version

With ventilation

Supply

Cantilever rack shelf

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for M6119265

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
Material

Colour
Light grey RAL 7035
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
Height
88.1 mm
Width
482.6 mm
Depth
280 mm
Height Unit
2 U

Catalogue Pages

Drawings

3D Models

Weight/1 part
1.5 kg
Customs tariff number
(METCASE product)
73269098
Country of manufacture
UK

View our customising options and don't forget to request a quotation!
