19" Enclosures
M6200265
Mounting plate (265mm)
Internal mounting plate kit for COMBIMET 19" rack cases 265 mm deep. For mounting PCBs and electronic assemblies. Mounts to pre-punched holes in case base panels with the nylon pillars and screws supplied.
SupplyMounting plate, M3 nylon screw pillars (x9), M3 x 6 mm screws (x18).
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for M6200265
Please select the product details you would like to include in the PDF.
Add to my basket

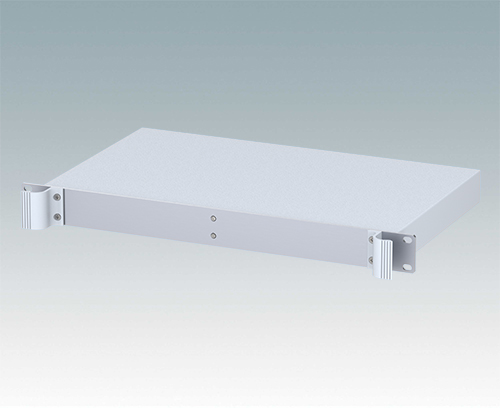

M6219115
COMBIMET 19" 1Ux265mm Solid Top
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of a solid wrap around top cover with removable base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Unventilated, solid top cover
Supply 19" front panel, top cover, base panel, rear panel, handle extrusion (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219115
COMBIMET 19" 1Ux265mm Solid Topproduct added to your basket
Light grey RAL 7035
43.6x482.6x265mm
M6219119
COMBIMET 19" 1Ux265mm Solid Top
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of a solid wrap around top cover with removable base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Unventilated, solid top cover
Supply 19" front panel, top cover, base panel, rear panel, handle extrusion (x2), M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219119
COMBIMET 19" 1Ux265mm Solid Topproduct added to your basket
Black RAL 9005
43.6x482.6x265mm

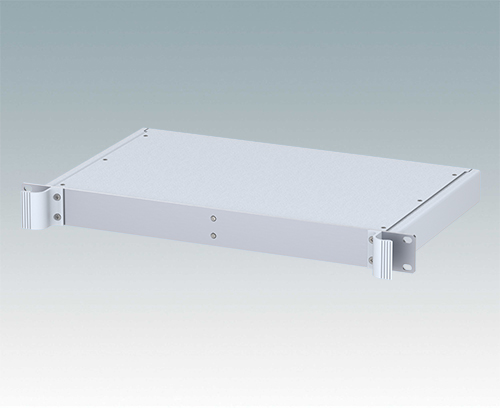

M6219135
COMBIMET 19" 1Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, rear panel, 2 handle extrusions, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219135
COMBIMET 19" 1Ux265mmproduct added to your basket
Light grey RAL 7035
43.6x482.6x265mm

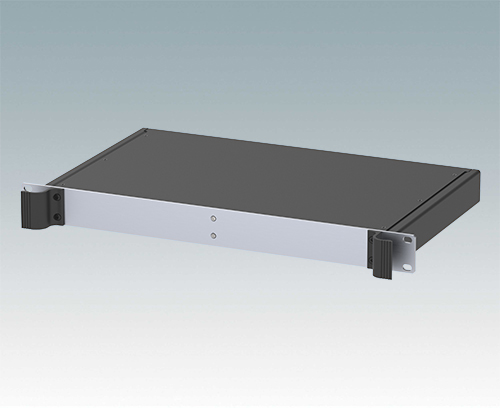

M6219139
COMBIMET 19" 1Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, rear panel, 2 handle extrusions, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219139
COMBIMET 19" 1Ux265mmproduct added to your basket
Black RAL 9005
43.6x482.6x265mm
M6219145
COMBIMET 19" 1Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, rear panel, 2 handle extrusions, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219145
COMBIMET 19" 1Ux265mm Ventedproduct added to your basket
Light grey RAL 7035
43.6x482.6x265mm
M6219149
COMBIMET 19" 1Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, rear panel, 2 handle extrusions, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219149
COMBIMET 19" 1Ux265mm Ventedproduct added to your basket
Black RAL 9005
43.6x482.6x265mm

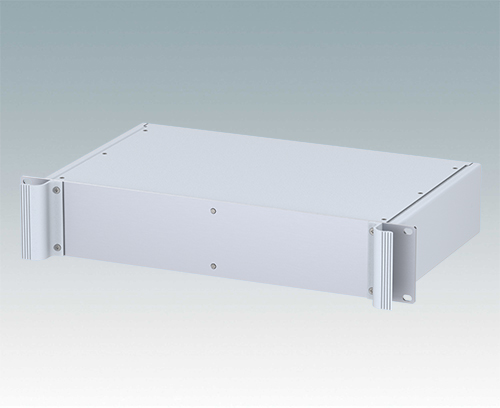

M6219235
COMBIMET 19" 2Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219235
COMBIMET 19" 2Ux265mmproduct added to your basket
Light grey RAL 7035
88.1x482.6x265mm

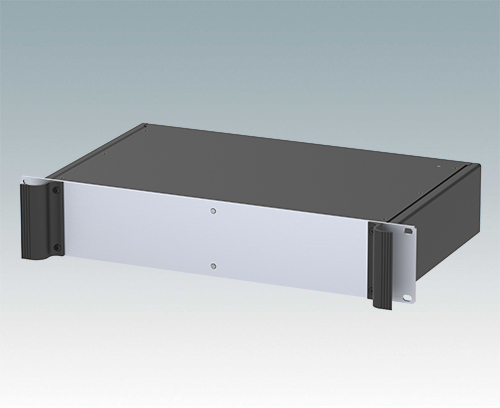

M6219239
COMBIMET 19" 2Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219239
COMBIMET 19" 2Ux265mmproduct added to your basket
Black RAL 9005
88.1x482.6x265mm

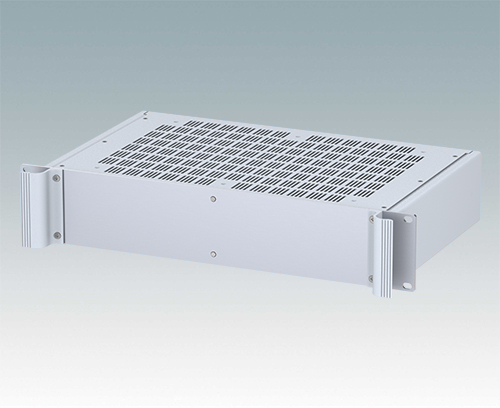

M6219245
COMBIMET 19" 2Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219245
COMBIMET 19" 2Ux265mm Ventedproduct added to your basket
Light grey RAL 7035
88.1x482.6x265mm

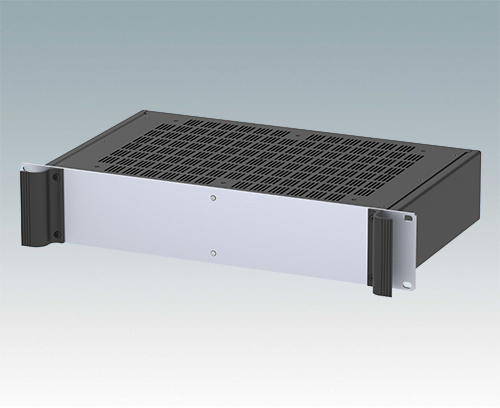

M6219249
COMBIMET 19" 2Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219249
COMBIMET 19" 2Ux265mm Ventedproduct added to your basket
Black RAL 9005
88.1x482.6x265mm

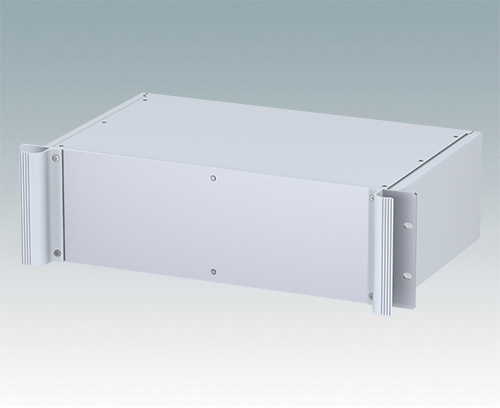

M6219335
COMBIMET 19" 3Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219335
COMBIMET 19" 3Ux265mmproduct added to your basket
Light grey RAL 7035
132.5x482.6x265mm

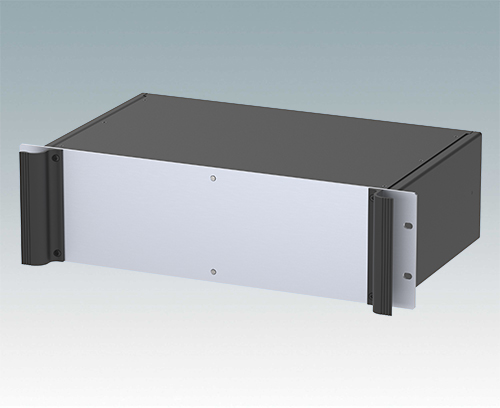

M6219339
COMBIMET 19" 3Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219339
COMBIMET 19" 3Ux265mmproduct added to your basket
Black RAL 9005
132.5x482.6x265mm

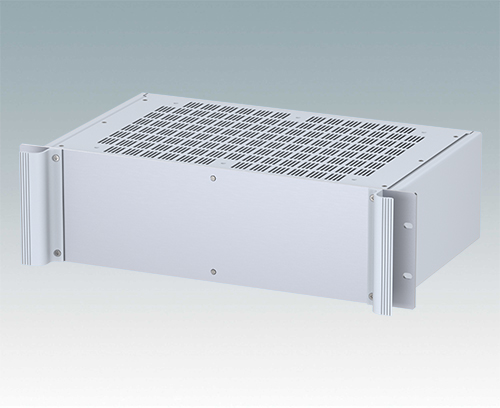

M6219345
COMBIMET 19" 3Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219345
COMBIMET 19" 3Ux265mm Ventedproduct added to your basket
Light grey RAL 7035
132.5x482.6x265mm
M6219349
COMBIMET 19" 3Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219349
COMBIMET 19" 3Ux265mm Ventedproduct added to your basket
Black RAL 9005
132.5x482.6x265mm

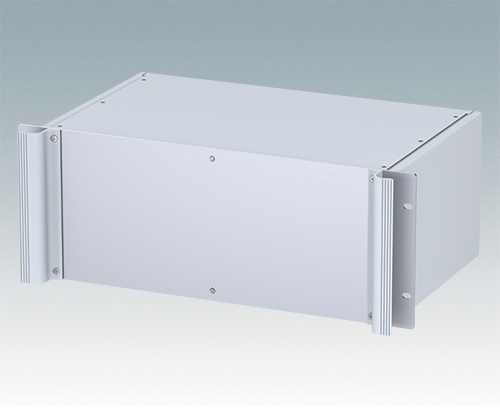

M6219435
COMBIMET 19" 4Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219435
COMBIMET 19" 4Ux265mmproduct added to your basket
Light grey RAL 7035
177x482.6x265mm

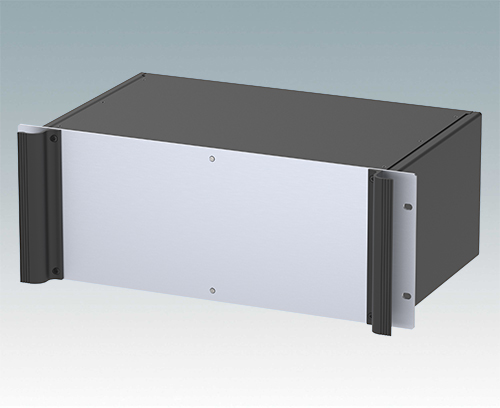

M6219439
COMBIMET 19" 4Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219439
COMBIMET 19" 4Ux265mmproduct added to your basket
Black RAL 9005
177x482.6x265mm

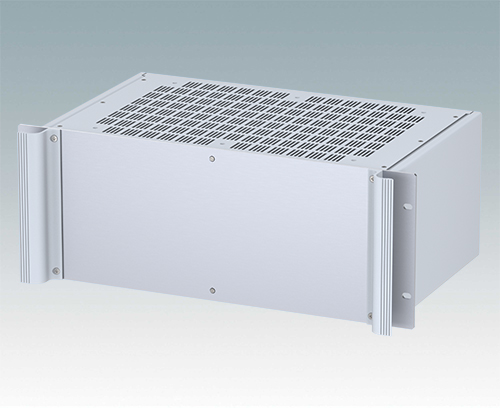

M6219445
COMBIMET 19" 4Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219445
COMBIMET 19" 4Ux265mm Ventedproduct added to your basket
Light grey RAL 7035
177x482.6x265mm

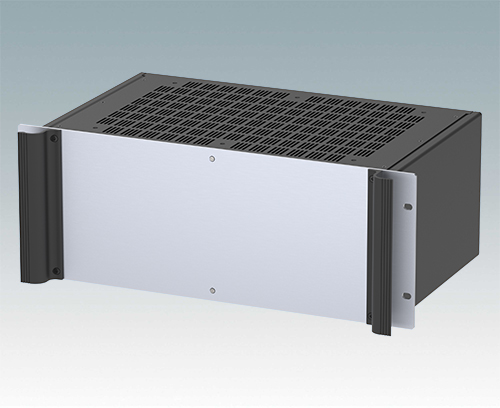

M6219449
COMBIMET 19" 4Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219449
COMBIMET 19" 4Ux265mm Ventedproduct added to your basket
Black RAL 9005
177x482.6x265mm

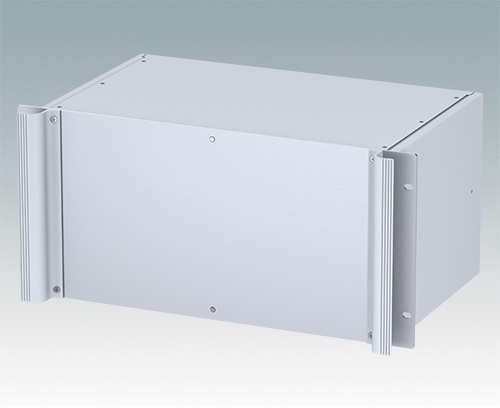

M6219535
COMBIMET 19" 5Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219535
COMBIMET 19" 5Ux265mmproduct added to your basket
Light grey RAL 7035
221x482.6x265mm

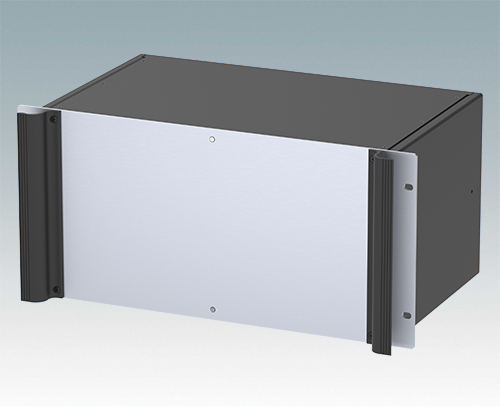

M6219539
COMBIMET 19" 5Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219539
COMBIMET 19" 5Ux265mmproduct added to your basket
Black RAL 9005
221x482.6x265mm

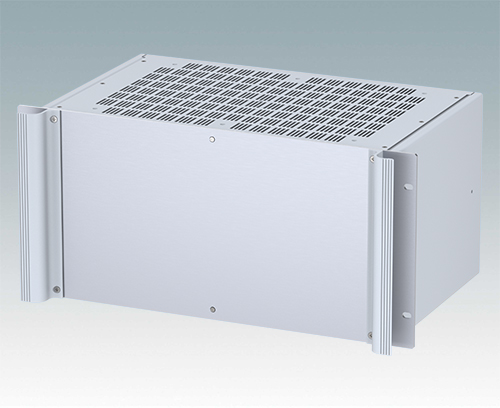

M6219545
COMBIMET 19" 5Ux265mm Vented
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219545
COMBIMET 19" 5Ux265mm Ventedproduct added to your basket
Light grey RAL 7035
221x482.6x265mm
M6219549
COMBIMET 19" 5Ux265mm Vented
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x14), M3 x 8 mm (x6). Supplied fully assembled.
M6219549
COMBIMET 19" 5Ux265mm Ventedproduct added to your basket
Black RAL 9005
221x482.6x265mm

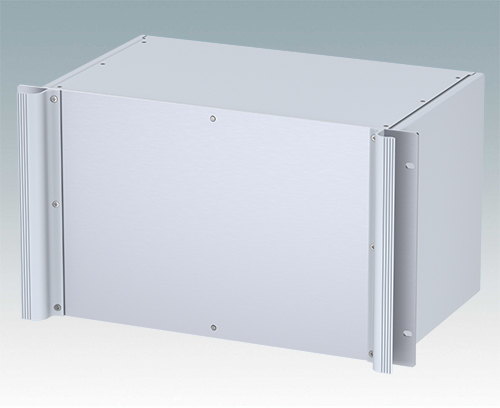

M6219635
COMBIMET 19" 6Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6).. Supplied fully assembled.
M6219635
COMBIMET 19" 6Ux265mmproduct added to your basket
Light grey RAL 7035
266x482.6x265mm

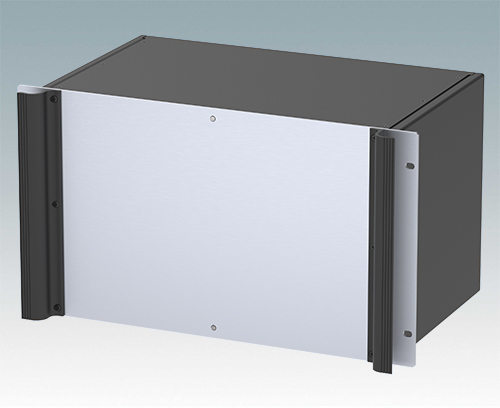

M6219639
COMBIMET 19" 6Ux265mm
Modern aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version Without ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6).. Supplied fully assembled.
M6219639
COMBIMET 19" 6Ux265mmproduct added to your basket
Black RAL 9005
266x482.6x265mm

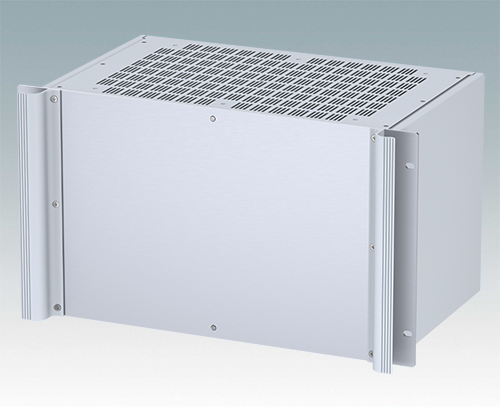

M6219645
COMBIMET 19" 6Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6).. Supplied fully assembled.
M6219645
COMBIMET 19" 6Ux265mm Ventedproduct added to your basket
Light grey RAL 7035
266x482.6x265mm

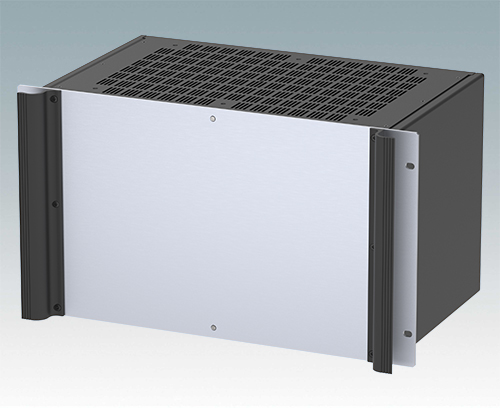

M6219649
COMBIMET 19" 6Ux265mm Vented
Modern ventilated aluminium 19" rack case with an anodised front panel and two ergonomic front panel handles. The case body consists of two side panels with removable top, base and rear panel. The base is pre-punched for fitting PCB mounting pillars or the accessory internal mounting plate. All parts are provided with M4 earth studs for electrical continuity.
Version With ventilation
Supply 19" front panel, top panel, base panel, 2 side panels, 2 handle extrusions, rear panel, M4 x 16 mm (x6), M3 x 8 mm (x14), M3 x 8 mm (x6).. Supplied fully assembled.
M6219649
COMBIMET 19" 6Ux265mm Ventedproduct added to your basket
Black RAL 9005
266x482.6x265mm
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Colour
Natural finish
Standards
REACH compliant
RoHS compliant
RoHS compliant
Width
335 mm
Depth
230 mm
Height
1.5 mm
Catalogue Pages
- COMBIMET 19" catalogue (English) 3,987 KB
- COMBIMET 19-Zoll Katalog (Deutsch) 3,943 KB
- Catálogo COMBIMET 19" (Español) 4,145 KB
- COMBIMET 19" catalogue (Français) 3,899 KB
Drawings
- PDF-File 126 KB
- AutoCAD DWG-File 143 KB
- AutoCAD DXF-File 1,245 KB
3D Models
- M6200265.stp 396 KB
- M6200265.x_t 348 KB
- M6200265.sat 7,449 KB
Weight/1 part
0.34 kg
Customs tariff number
(METCASE product)
(METCASE product)
76061292
Country of manufacture
UK
View our customising options and don't forget to request a quotation!
