M0000700

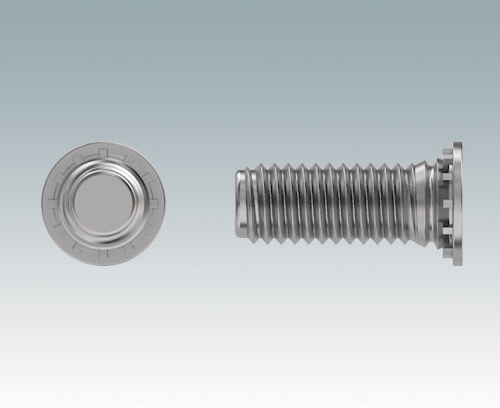

Flush Head Fixing Studs

Flush mounted fixing stud which is press fitted to a hole in the panel.

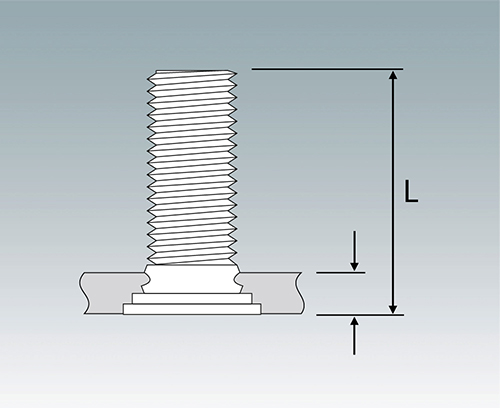

Thread Size Lengths (mm) Mounting Hole (mm)
M2 6 | 8 | 10 | 12 | 16 | 18 | 20 Ø2
M2.5 6 | 8 | 10 | 12 | 15 | 18 | 20 Ø2.5
M3 5 | 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 30 | 35 Ø3
M3.5 8 | 10 | 12 | 15 | 16 Ø3.5
M4 6 | 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 45 | 50 Ø4
M5 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 50 Ø5
M6 8 | 10 | 12 | 15 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 45 | 50 Ø6

3D/2D download

Generate Your PDF Datasheet for M0000700

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Material


Standards
REACH compliant
RoHS compliant

Catalogue Pages

Weight/1 part
1 g

View our customising options and don't forget to request a quotation!
