Right Angle Panel Nuts

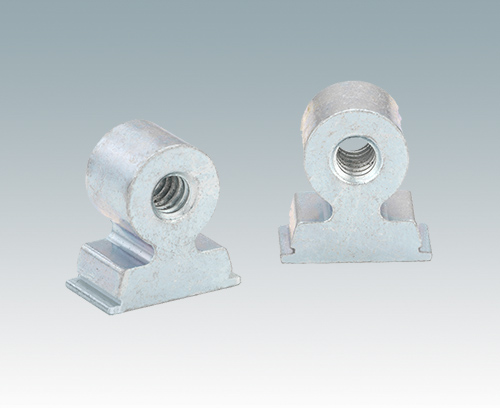

Threaded right angle fastener which is press fitted into a rectangular hole in the panel.

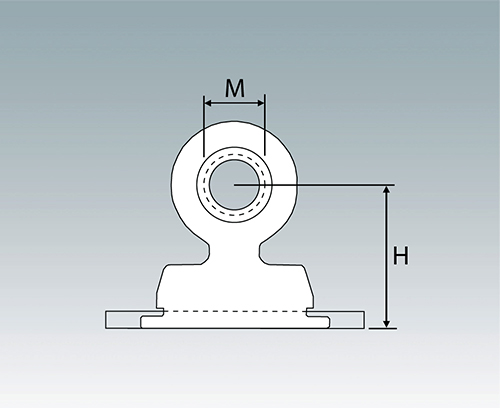

Thread Size Width (mm) Fixing Hole Height (mm) Mounting Hole (mm)
M3 2.89 7 8 x 3 mm
M3 3.89 7 8 x 4 mm
M3 5.89 7 8 x 6 mm
M4 3.89 9 10 x 4 mm
M4 6.89 9 10 x 7 mm
M4 8.89 9 10 x 9 mm

3D/2D download

Generate Your PDF Datasheet for M0000721

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
Material

Standards
REACH compliant
RoHS compliant

Catalogue Pages

Weight/1 part
1 g
