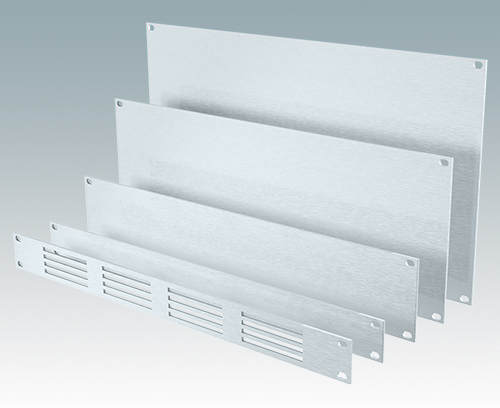

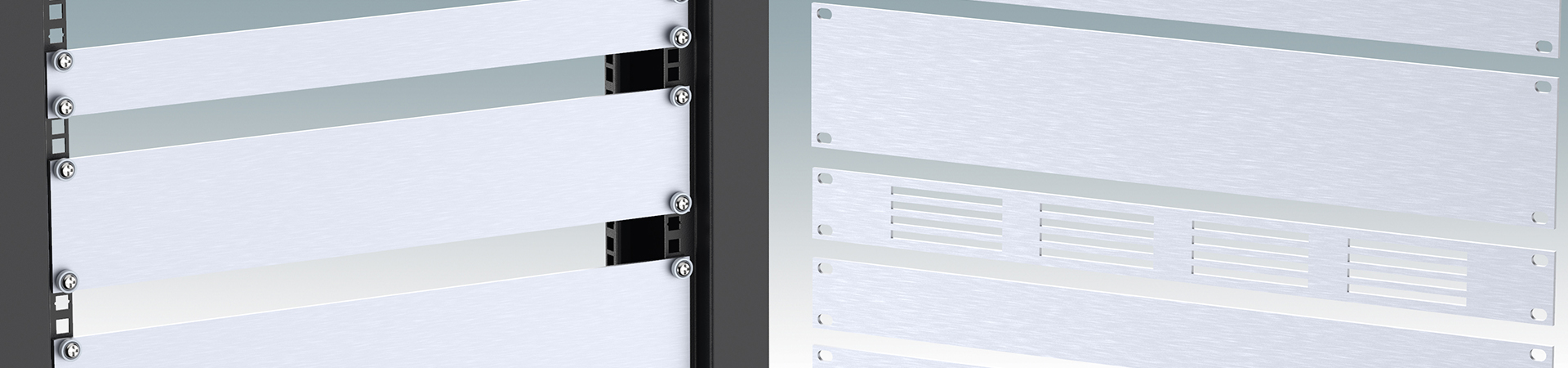

19" Front Panels

  • 19" standard front panels in 10.5" and 19" widths, manufactured in 3 mm anodised aluminium
  • Heights from 1U to 6U (other sizes to order). Ventilated 1U version
  • Conform to DIN 41494 and IEC 60297-3
  • Punching and digital printing services available.

Order your own fully customised version learn more here >>

Generate PDF

Application Fields

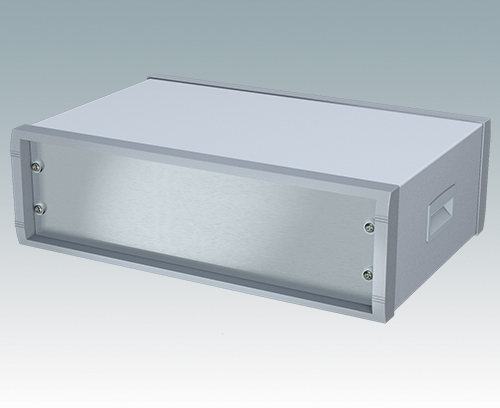

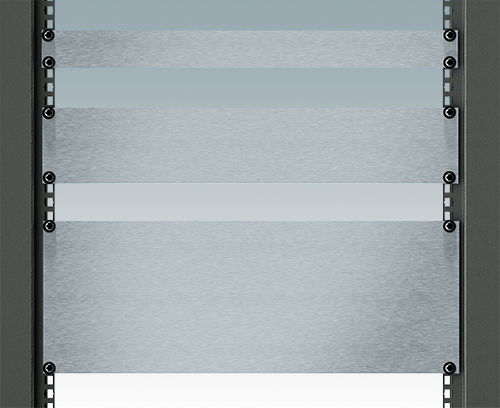

Standard front panels for mounting in 19 inch racks and desktop enclosures. Suitable for mounting controls, displays and connectors, or as blanking panels between rack mounted equipment. The ventilated 1U panel aids rack cooling.

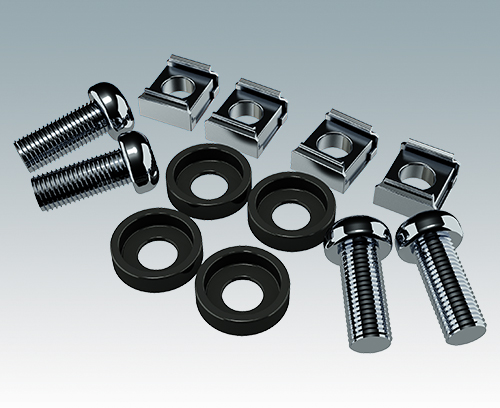

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005

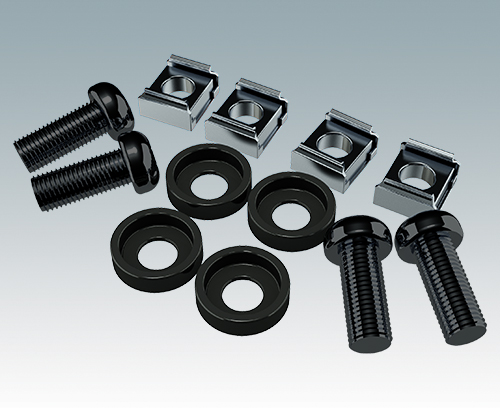

M5900018 19" mounting kit black screws

M5900018

19" mounting kit black screws Mounting kit for fitting a 19" rack case, subrack or front panel into a rack. Black screws and black cup washers.

Supply M6 caged nuts (x4), M6 x 16 mm black screw (x4) and black plastic cup washer (x4).

M5900018

19" mounting kit black screws
product added to your basket
Black RAL 9005

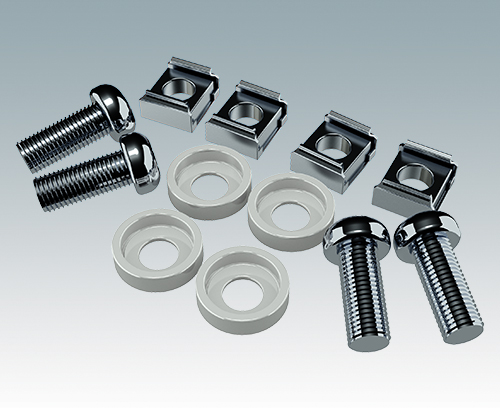

M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035

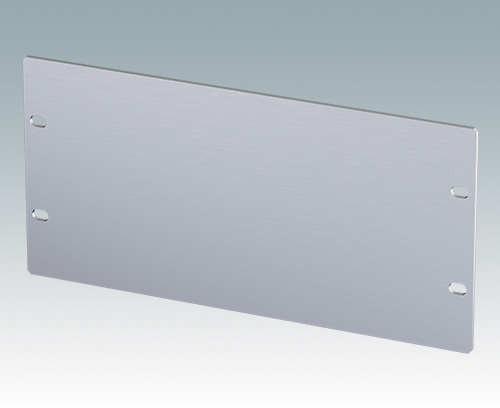

M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply Front panel

M6010001

Front panel 3Ux10.5"
product added to your basket

Matt anodised
269.2x3x132.5mm

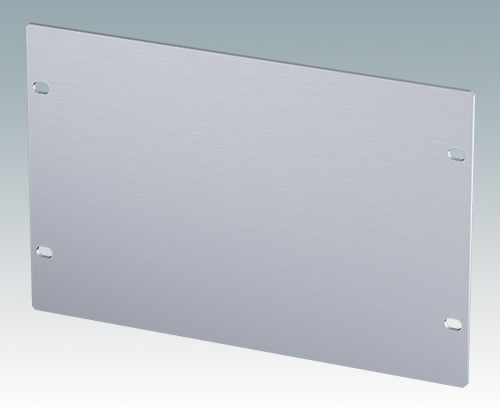

M6010040 Front panel 4Ux10.5"

M6010040

Front panel 4Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply Front Panel

M6010040

Front panel 4Ux10.5"
product added to your basket

Matt anodised
269.2x3x176.95mm

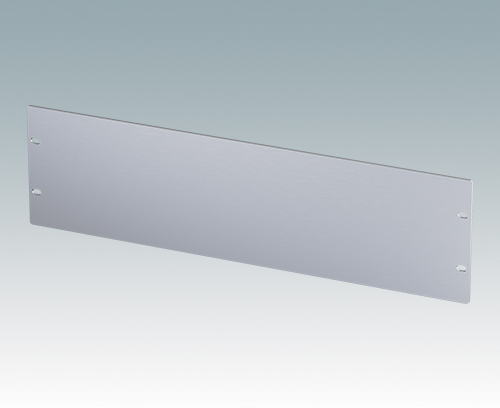

M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

M6019001

Front panel 3Ux19"
product added to your basket

Matt anodised
482.6x3x132.5mm

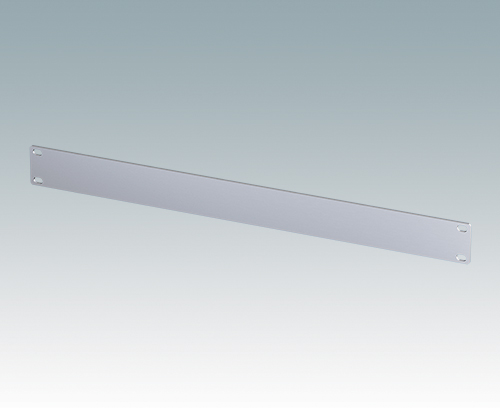

M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019010

Front panel 1Ux19"
product added to your basket

Matt anodised
482.6x3x43.6mm

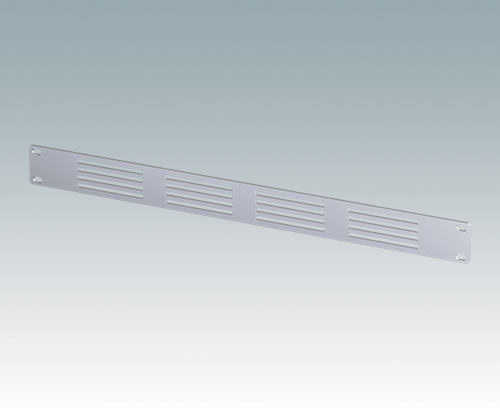

M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version With ventilation slots

Supply Panel

M6019011

Front panel 1Ux19" vented
product added to your basket

Matt anodised
482.6x3x43.6mm

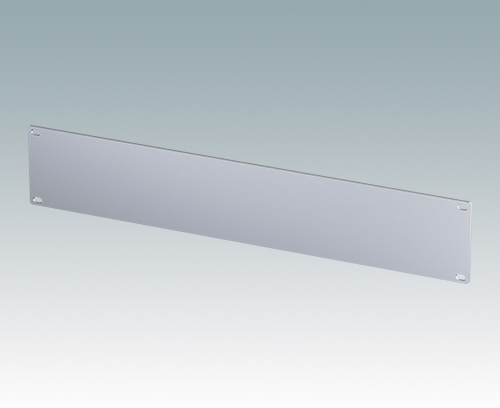

M6019020 Front panel 2Ux19"

M6019020

Front panel 2Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1

Supply Panel

M6019020

Front panel 2Ux19"
product added to your basket

Matt anodised
482.6x3x88.1mm

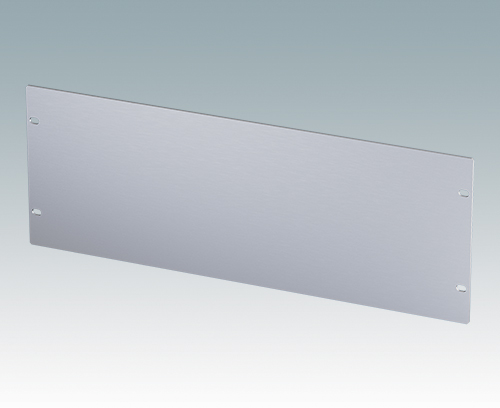

M6019040 Front panel 4Ux19"

M6019040

Front panel 4Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019040

Front panel 4Ux19"
product added to your basket

Matt anodised
482.6x3x177mm

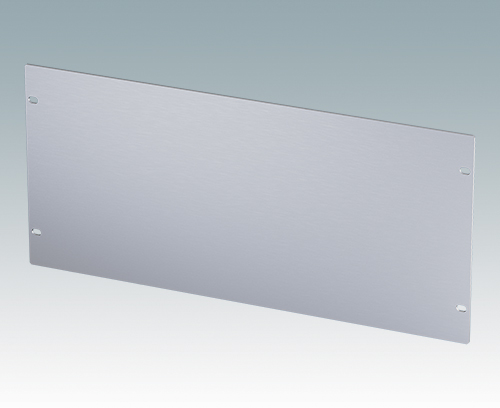

M6019050 Front panel 5Ux19"

M6019050

Front panel 5Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019050

Front panel 5Ux19"
product added to your basket

Matt anodised
482.6x3x221.45mm

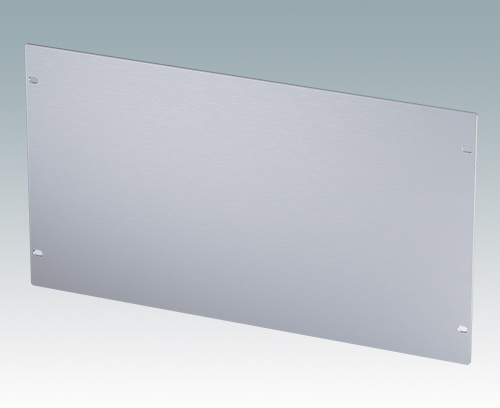

M6019060 Front panel 6Ux19"

M6019060

Front panel 6Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019060

Front panel 6Ux19"
product added to your basket

Matt anodised
482.6x3x266mm
