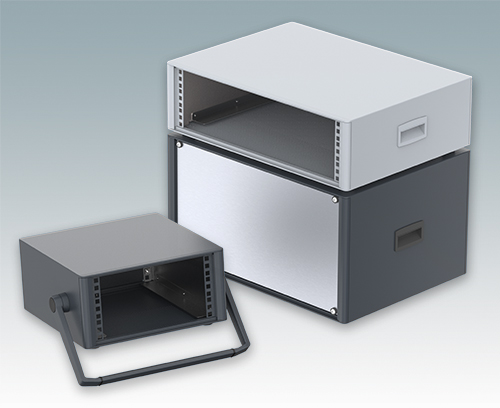

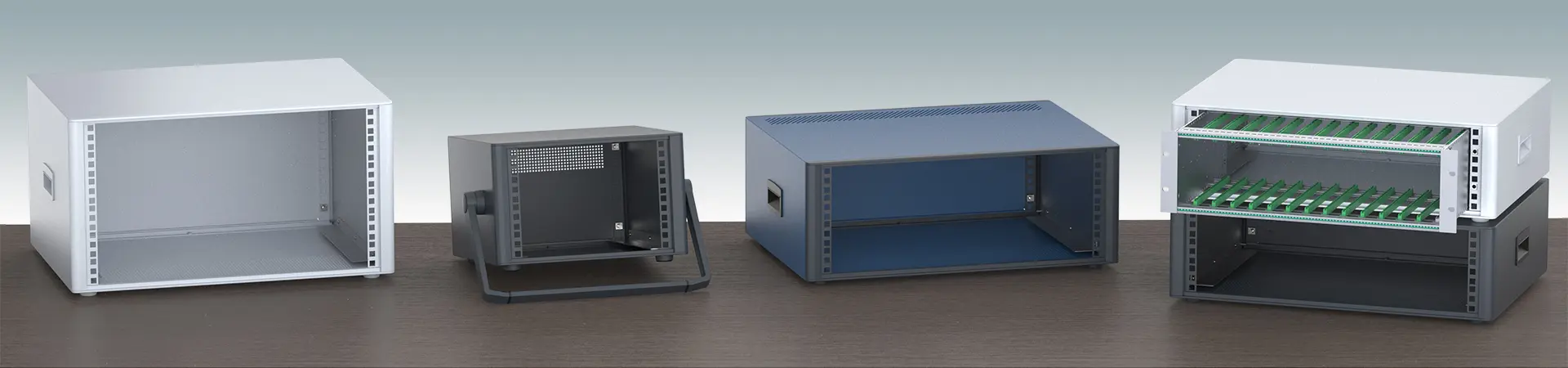

Technomet 19"

Modern Desktop Mini-Rack Enclosures to DIN 41494 and IEC 60297-3

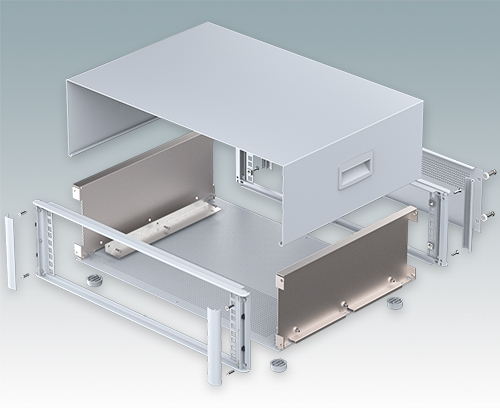

  • Cohesive design with no visible fixing screws. Robust yet lightweight aluminium construction

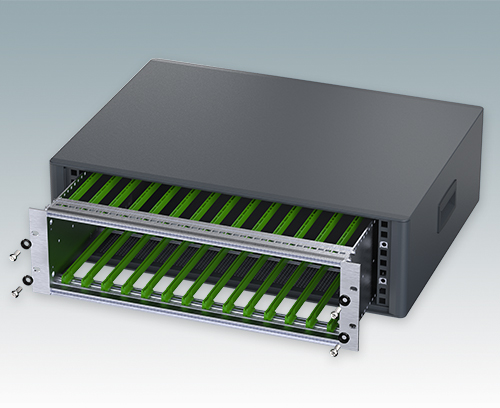

  • Designed to accept standard 10.5" (42HP) and 19" (84HP) subracks, chassis and front panels
  • Die cast bezels fit flush with the case body for a smooth appearance
  • Recessed ABS side handles for easy carrying

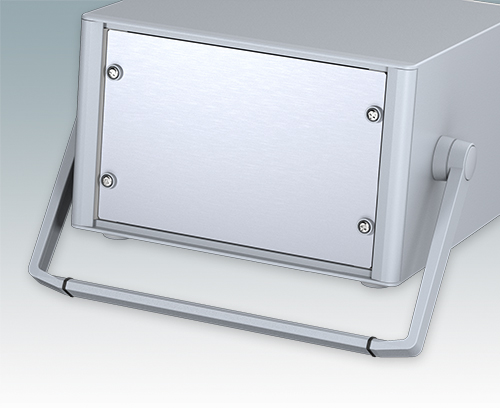

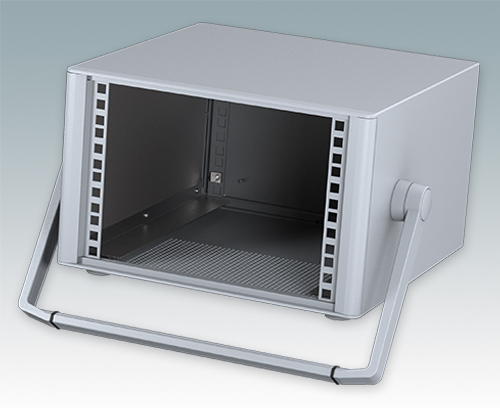

  • 10.5" versions also available with a tilt/swivel carry handle

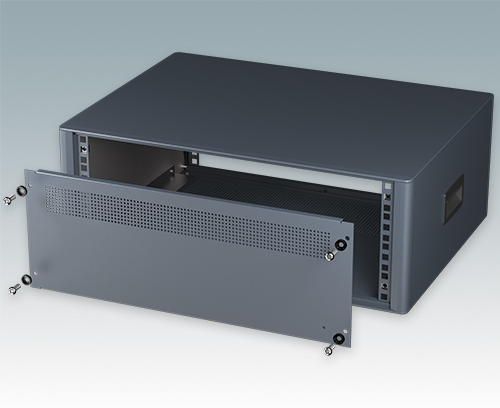

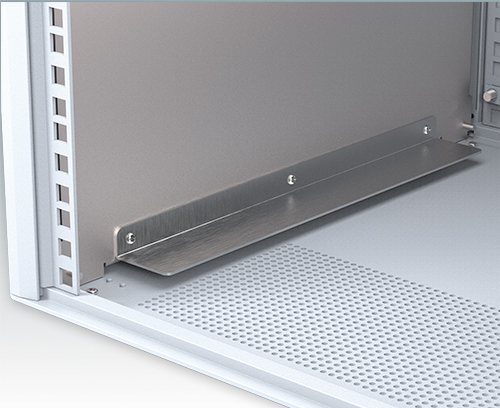

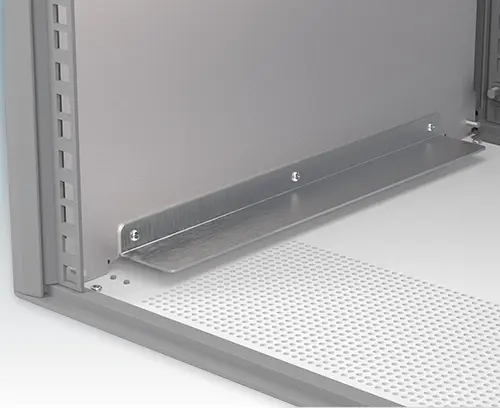

  • Removable rear panel and internal subrack/chassis support rails included

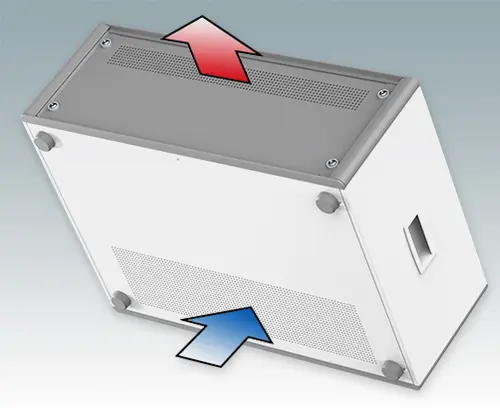

  • Ventilation holes in base and rear panel
  • All case panels fitted with M4 threaded pillars for earth connections

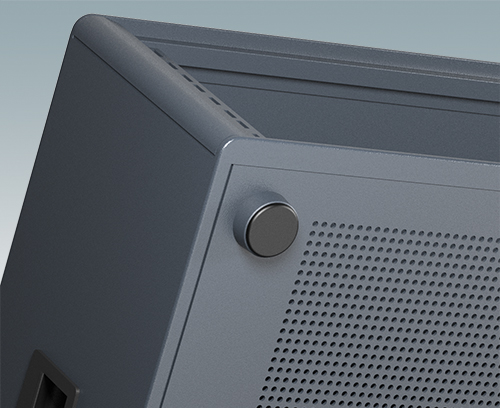

  • Moulded ABS non-slip feet included
  • Supplied fully assembled and ready to use

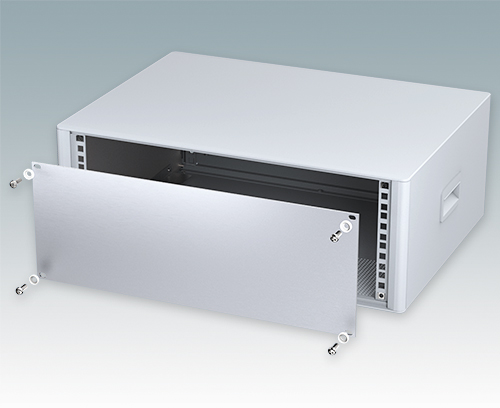

  • Accessory anodised 10,5" and 19" front panels available.

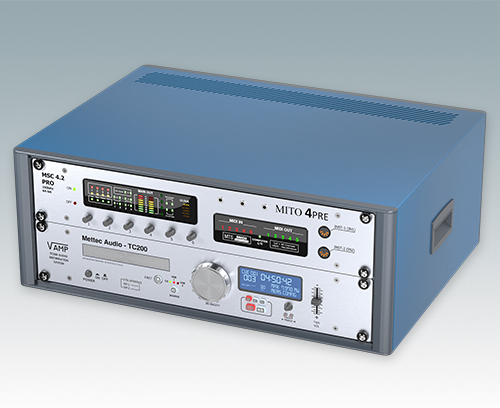

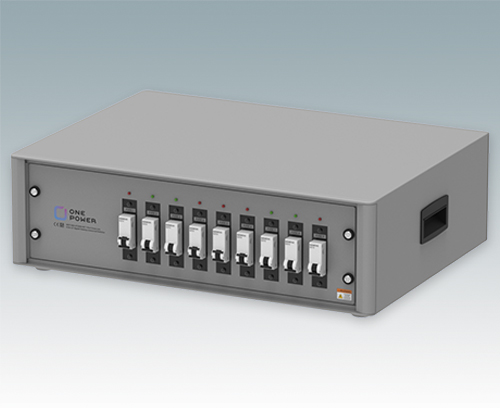

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

19" subrack or chassis-based electronics such as test and measurement equipment, networking and communications devices, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.

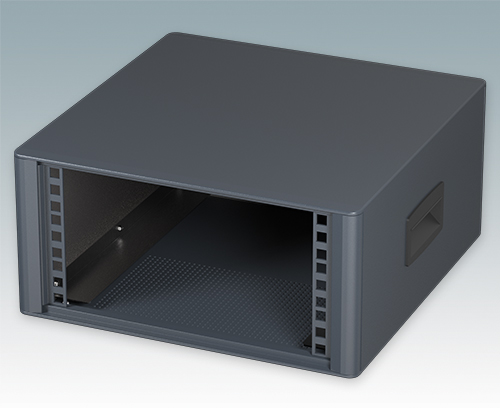

M6610344 TECHNOMET 10.5" 3Ux330mm

M6610344

TECHNOMET 10.5" 3Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610344

TECHNOMET 10.5" 3Ux330mm
product added to your basket

Anthracite RAL 7016
156.6x323x330mm

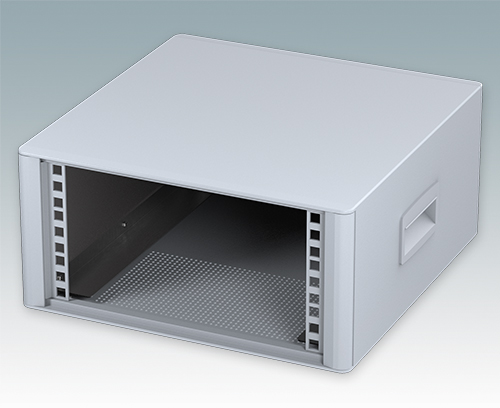

M6610345 TECHNOMET 10.5" 3Ux330mm

M6610345

TECHNOMET 10.5" 3Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610345

TECHNOMET 10.5" 3Ux330mm
product added to your basket

Light grey RAL 7035
156.6x323x330mm

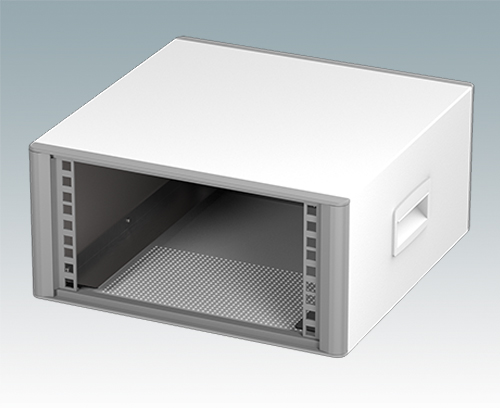

M6610346 TECHNOMET 10.5" 3Ux330mm

M6610346

TECHNOMET 10.5" 3Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610346

TECHNOMET 10.5" 3Ux330mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
156.6x323x330mm

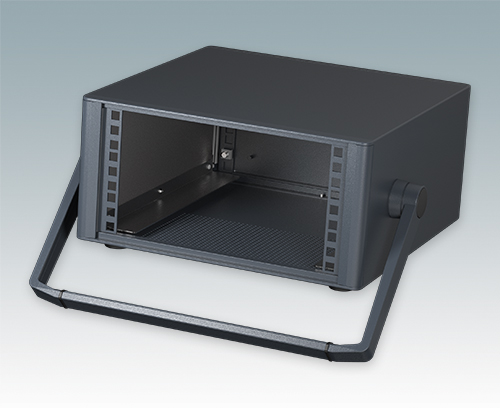

M6610354 TECHNOMET 10.5" 3Ux330mm

M6610354

TECHNOMET 10.5" 3Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610354

TECHNOMET 10.5" 3Ux330mm
product added to your basket

Anthracite RAL 7016
156.6x323x330mm

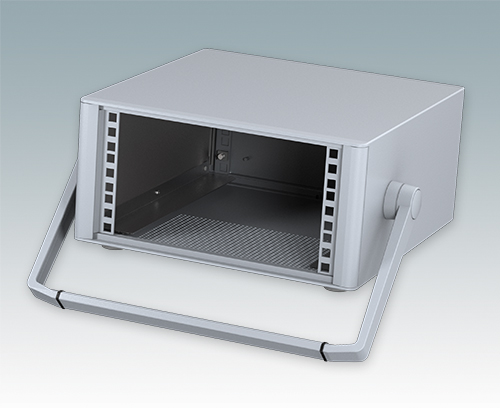

M6610355 TECHNOMET 10.5" 3Ux330mm

M6610355

TECHNOMET 10.5" 3Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610355

TECHNOMET 10.5" 3Ux330mm
product added to your basket

Light grey RAL 7035
156.6x323x330mm

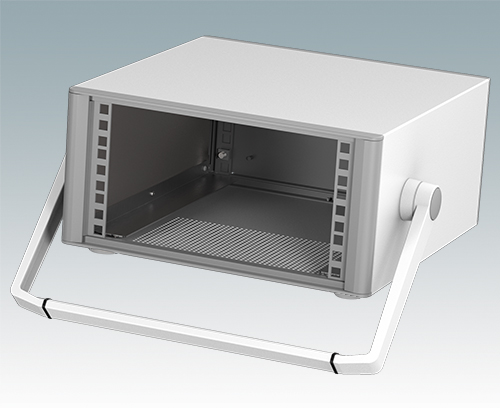

M6610356 TECHNOMET 10.5" 3Ux330mm

M6610356

TECHNOMET 10.5" 3Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 3U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC103H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610356

TECHNOMET 10.5" 3Ux330mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
156.6x323x330mm

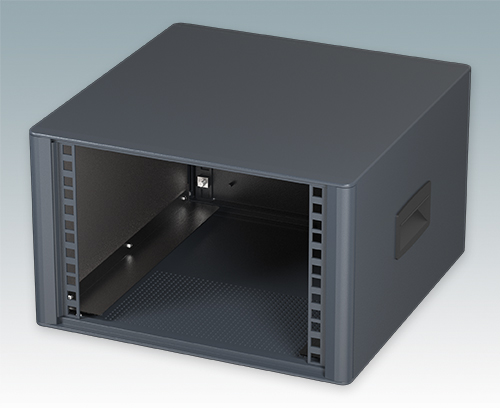

M6610444 TECHNOMET 10.5" 4Ux330mm

M6610444

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610444

TECHNOMET 10.5" 4Ux330mm
product added to your basket

Anthracite RAL 7016
200x323x330mm

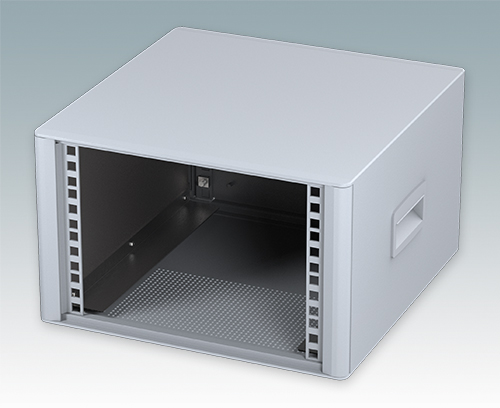

M6610445 TECHNOMET 10.5" 4Ux330mm

M6610445

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610445

TECHNOMET 10.5" 4Ux330mm
product added to your basket

Light grey RAL 7035
200x323x330mm

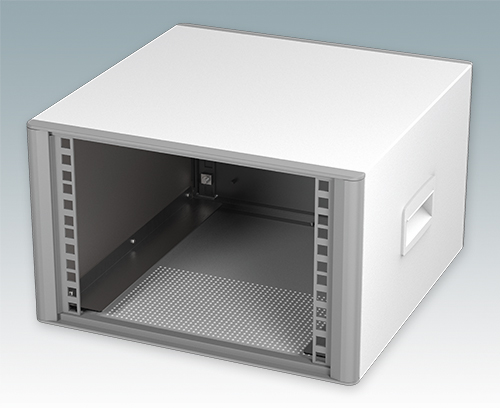

M6610446 TECHNOMET 10.5" 4Ux330mm

M6610446

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610446

TECHNOMET 10.5" 4Ux330mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
200x323x330mm

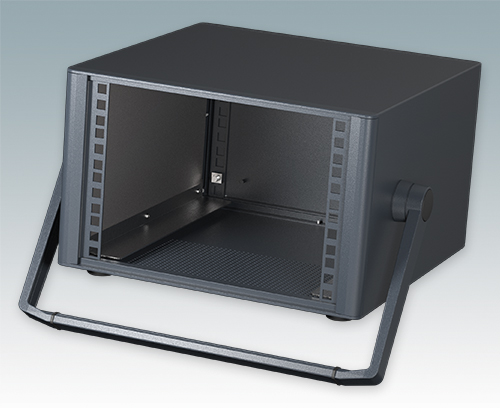

M6610454 TECHNOMET 10.5" 4Ux330mm

M6610454

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610454

TECHNOMET 10.5" 4Ux330mm
product added to your basket

Anthracite RAL 7016
200x323x330mm
M6610455 TECHNOMET 10.5" 4Ux330mm

M6610455

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610455

TECHNOMET 10.5" 4Ux330mm
product added to your basket

Light grey RAL 7035
200x323x330mm

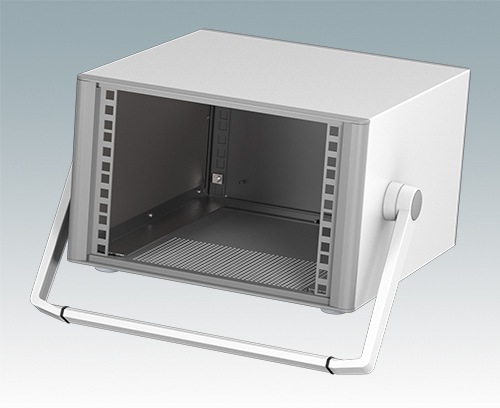

M6610456 TECHNOMET 10.5" 4Ux330mm

M6610456

TECHNOMET 10.5" 4Ux330mm Modern and highly attractive 10.5" instrument enclosure for mounting 4U subracks (42HP), chassis or front panels. Conforms to DIN 41494 & IEC 297. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection. The case is supplied with a rear panel, a tilt/swivel carry handle and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 10.5" equipment.

Version RC104H with handle/bail arm

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle kit, ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6610456

TECHNOMET 10.5" 4Ux330mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
200x323x330mm

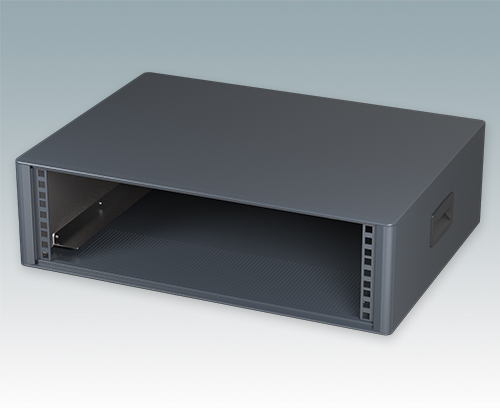

M6619344 TECHNOMET 19" 3Ux400mm

M6619344

TECHNOMET 19" 3Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 3U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC193 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

M6619344

TECHNOMET 19" 3Ux400mm
product added to your basket

Anthracite RAL 7016
155.6x539x400mm

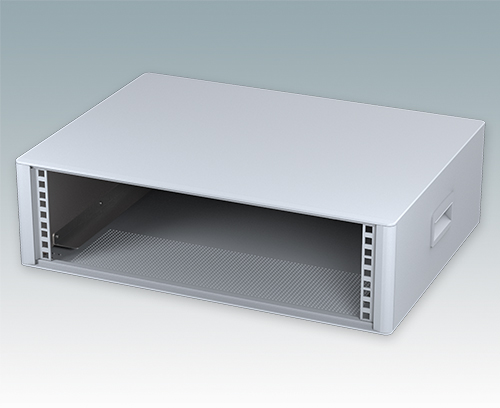

M6619345 TECHNOMET 19'' 3Ux400mm

M6619345

TECHNOMET 19'' 3Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 3U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC193 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619345

TECHNOMET 19'' 3Ux400mm
product added to your basket

Light grey RAL 7035
155.6x539x400mm

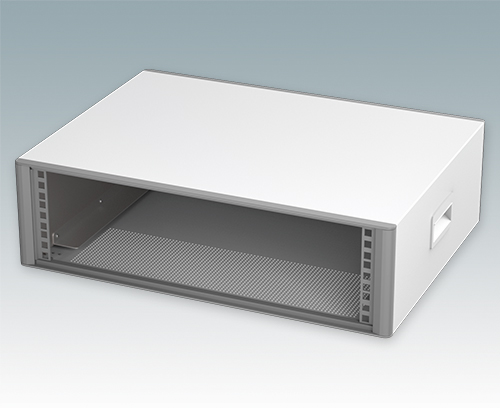

M6619346 TECHNOMET 19'' 3Ux400mm

M6619346

TECHNOMET 19'' 3Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 3U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC193 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619346

TECHNOMET 19'' 3Ux400mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
155.6x539x400mm

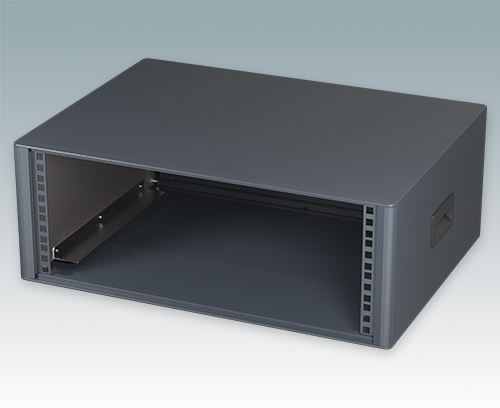

M6619444 TECHNOMET 19'' 4Ux400mm

M6619444

TECHNOMET 19'' 4Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 4U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC194 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

M6619444

TECHNOMET 19'' 4Ux400mm
product added to your basket

Anthracite RAL 7016
200x539x400mm
M6619445 TECHNOMET 19'' 4Ux400mm

M6619445

TECHNOMET 19'' 4Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 4U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC194 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619445

TECHNOMET 19'' 4Ux400mm
product added to your basket

Light grey RAL 7035
200x539x400mm

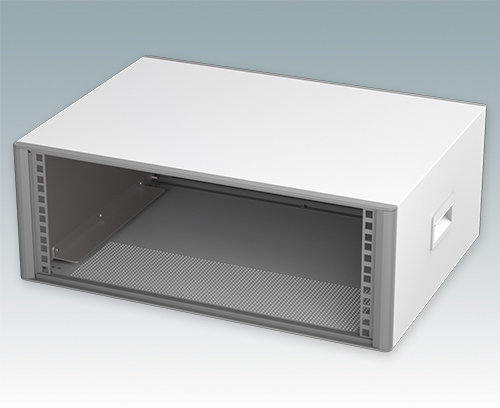

M6619446 TECHNOMET 19'' 4Ux400mm

M6619446

TECHNOMET 19'' 4Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 4U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC194 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619446

TECHNOMET 19'' 4Ux400mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
200x539x400mm

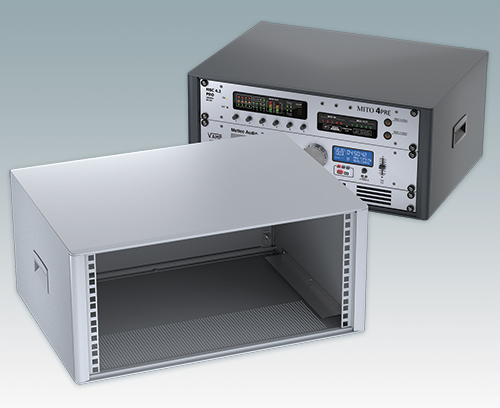

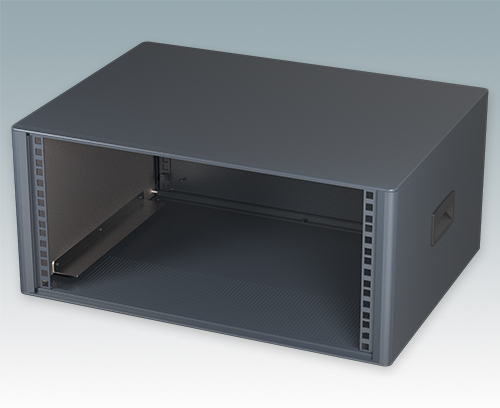

M6619544 TECHNOMET 19" 5Ux400mm

M6619544

TECHNOMET 19" 5Ux400mm

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC195 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619544

TECHNOMET 19" 5Ux400mm
product added to your basket

Anthracite RAL 7016
244.5x539x400mm
M6619545 TECHNOMET 19" 5Ux400mm

M6619545

TECHNOMET 19" 5Ux400mm

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC195 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619545

TECHNOMET 19" 5Ux400mm
product added to your basket

Light grey RAL 7035
244.5x539x400mm

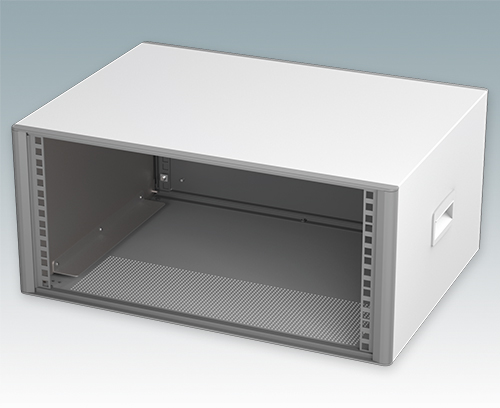

M6619546 TECHNOMET 19" 5Ux400mm

M6619546

TECHNOMET 19" 5Ux400mm

Modern and highly attractive 19" instrument enclosure for mounting 5U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC195 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x12), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619546

TECHNOMET 19" 5Ux400mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
244.5x539x400mm
M6619644 TECHNOMET 19'' 6Ux400mm

M6619644

TECHNOMET 19'' 6Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 6U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC196 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and black plastic cup washer (x4). Supplied assembled.

M6619644

TECHNOMET 19'' 6Ux400mm
product added to your basket

Anthracite RAL 7016
288.9x539x400mm

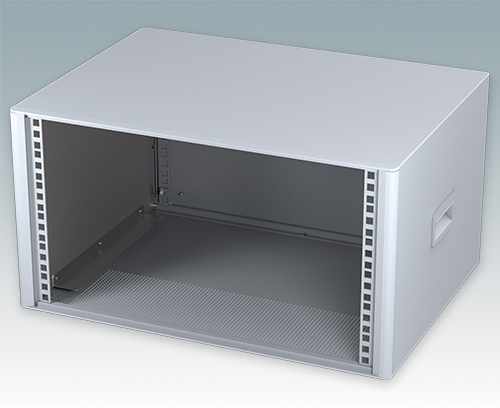

M6619645 TECHNOMET 19'' 6Ux400mm

M6619645

TECHNOMET 19'' 6Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 6U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC196 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619645

TECHNOMET 19'' 6Ux400mm
product added to your basket

Light grey RAL 7035
288.9x539x400mm

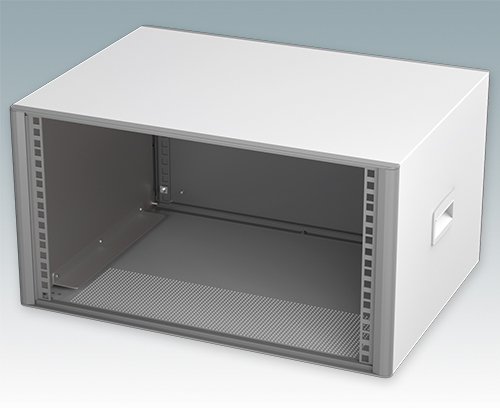

M6619646 TECHNOMET 19'' 6Ux400mm

M6619646

TECHNOMET 19'' 6Ux400mm Modern and highly attractive 19" instrument enclosure for mounting 6U subracks (84HP), chassis or front panels. Conforms to DIN 41494 & IEC 297-1. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws giving a very professional appearance. All case panels fitted with M4 threaded pillars for earth connection.

The case is supplied with a rear panel, two ABS side handles and four ABS non-slip feet. Ventilation slots are provided in the base and rear panel. Internal chassis runners support the 19" equipment.

Version RC196 with side handles

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS side handle (x2), ABS feet (x4), non-slip feet inserts (x4), M3 x 6 mm (x2), M3 x 8 mm (x16), M4 x 16 mm (x8), M4 x 12 mm (x6), M6 caged nuts (x4), M6 x 16 mm (x4) and grey plastic cup washer (x4). Supplied assembled.

M6619646

TECHNOMET 19'' 6Ux400mm
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
288.9x539x400mm
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M5900018 19" mounting kit black screws

M5900018

19" mounting kit black screws Mounting kit for fitting a 19" rack case, subrack or front panel into a rack. Black screws and black cup washers.

Supply M6 caged nuts (x4), M6 x 16 mm black screw (x4) and black plastic cup washer (x4).

M5900018

19" mounting kit black screws
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply Front panel

M6010001

Front panel 3Ux10.5"
product added to your basket

Matt anodised
269.2x3x132.5mm
M6010040 Front panel 4Ux10.5"

M6010040

Front panel 4Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply Front Panel

M6010040

Front panel 4Ux10.5"
product added to your basket

Matt anodised
269.2x3x176.95mm
M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

M6019001

Front panel 3Ux19"
product added to your basket

Matt anodised
482.6x3x132.5mm
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019010

Front panel 1Ux19"
product added to your basket

Matt anodised
482.6x3x43.6mm
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version With ventilation slots

Supply Panel

M6019011

Front panel 1Ux19" vented
product added to your basket

Matt anodised
482.6x3x43.6mm
M6019040 Front panel 4Ux19"

M6019040

Front panel 4Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019040

Front panel 4Ux19"
product added to your basket

Matt anodised
482.6x3x177mm
M6019050 Front panel 5Ux19"

M6019050

Front panel 5Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019050

Front panel 5Ux19"
product added to your basket

Matt anodised
482.6x3x221.45mm
M6019060 Front panel 6Ux19"

M6019060

Front panel 6Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019060

Front panel 6Ux19"
product added to your basket

Matt anodised
482.6x3x266mm
