CNC Punching and Folding

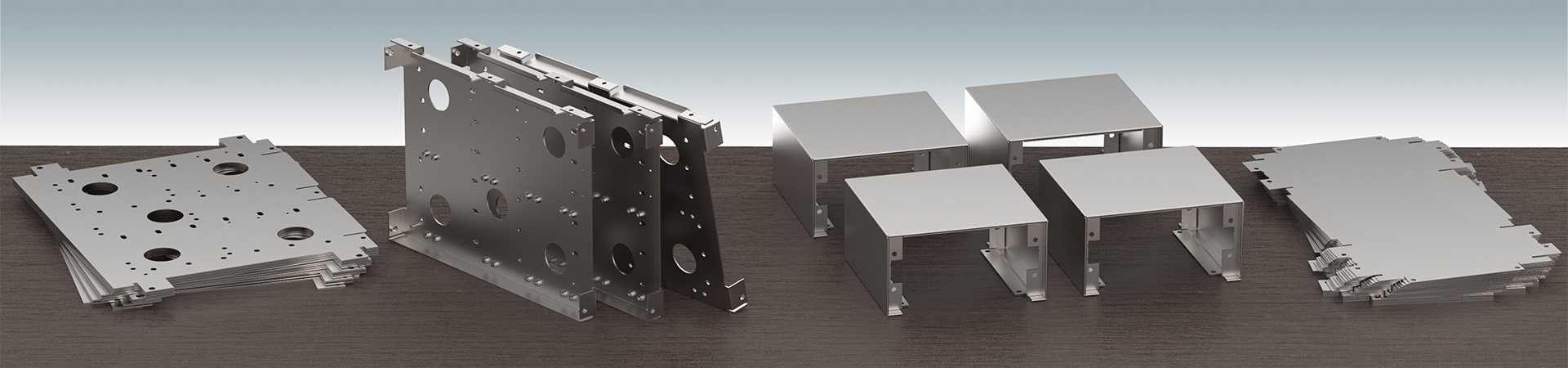

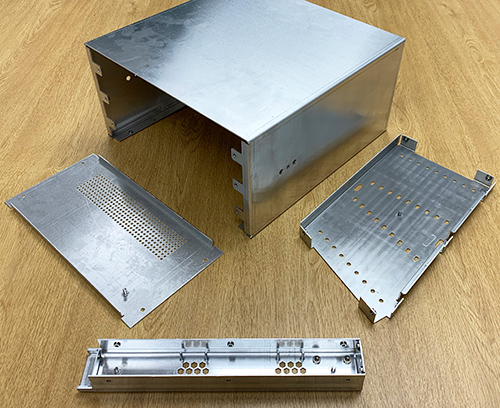

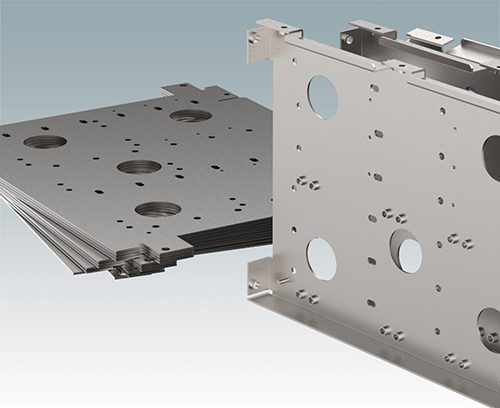

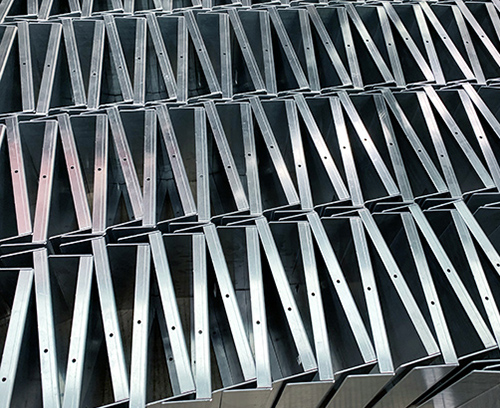

Fabricated sheet metal panels and components

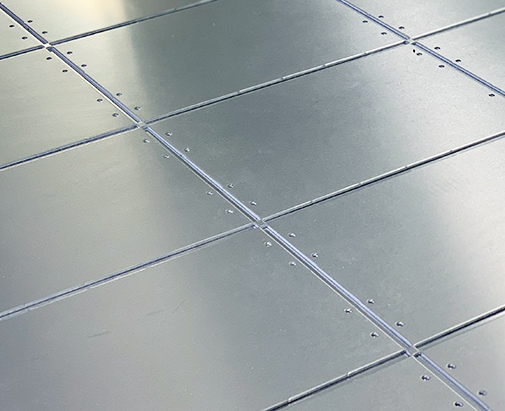

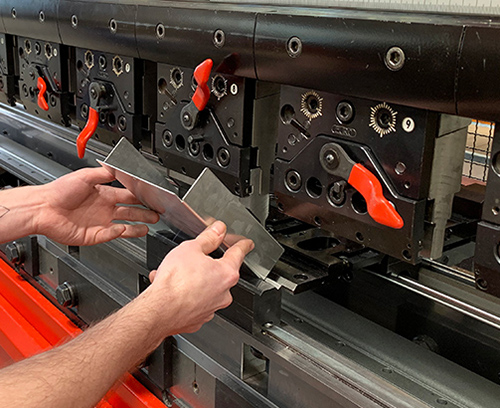

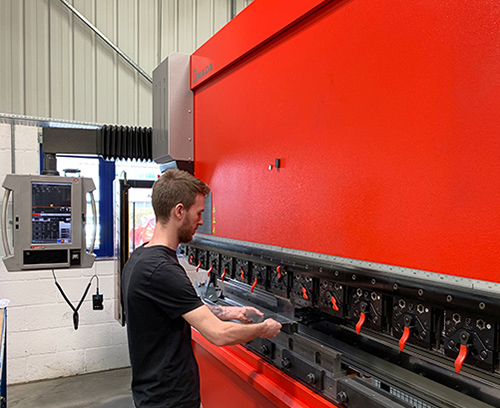

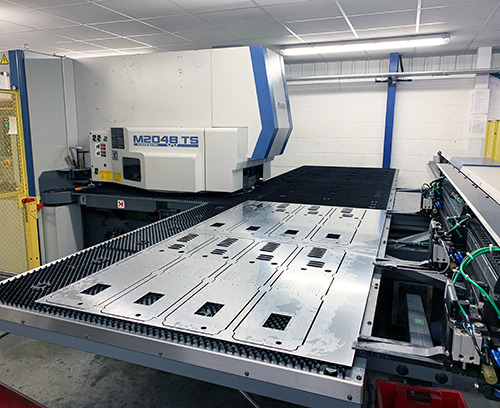

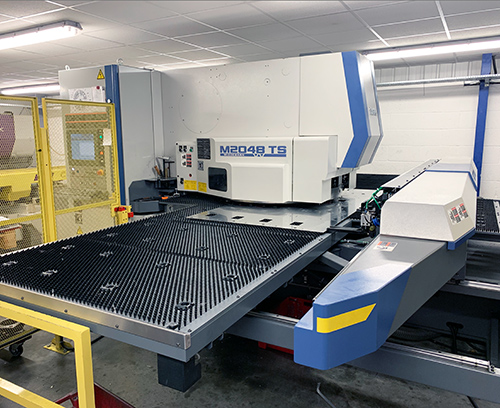

We produce all fabricated parts in-house using our state-of-the-art manufacturing facilities which include CNC punching and break press folding machines. Flat sheet aluminium and steel can be punched with any number of holes or series of slots to produce special front panels, covers, tops and base panels for our enclosures. Fully bespoke enclosures and sheet metal parts can also be fabricated to your design using these processes. We work to your drawings and specifications.
See below for a full stock list of sheet metal materials and standard hole punches we have available:
Options available:
- CNC punching of holes, slots, half shears, dimples, burst holes, vent louvres
- CNC folding of corners, tabs, flanges, dutch folds, joggles
- Fitting of inserts, PCB pillars, threaded studs, earth tags
- Linishing of aluminium panels for a blemish free finish.

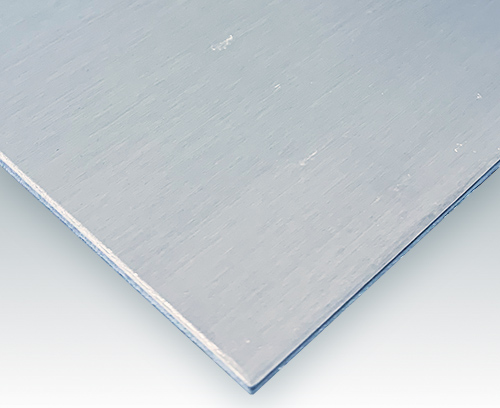

M0000600
Aluminium Sheet
METCASE standard enclosures are manufactured from sheet aluminium. Parts including covers, tops, bases, side covers, front panels and rear panels are manufactured from the various grades and guages listed below. Customer specific parts can also be manufactured from these standard stocked materials.
Available finishes:
- Painting (after pretreatment)
- Anodising
- Iridite NCP
Stocked sizes:
| Material Grade | Thickness |
| 5251 H22 | 1.0 mm |
| 5251 H22 | 1.2 mm |
| 1050 H14 | 1.5 mm |
| 5251 H22 | 2.0 mm |
| 5251 H22 | 2.5 mm |
| 5251 H22 | 3.0 mm |
| 5251 H22 | 4.0 mm |
M0000600
Aluminium Sheetproduct added to your basket
Natural finish

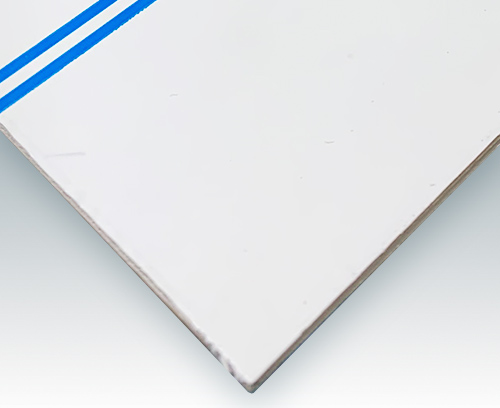

M0000601
Aluminium Sheet
With removable PVC protection film on both sides.
The film provides extra protection against marking on both sides of the sheet for panels which are undergoing heavy machining and/or punching. We can also supply parts in this material to customers who carry out their own processing.
Available finishes:
- Painting (after pretreatment)
- Anodising
- Iridite NCP
Stocked sizes:
| Material Grade | Thickness |
| 5251 H22 | 1.0 mm |
| 5251 H22 | 2.0 mm |
| 5251 H22 | 2.5 mm |
M0000601
Aluminium Sheetproduct added to your basket
PVC protection film

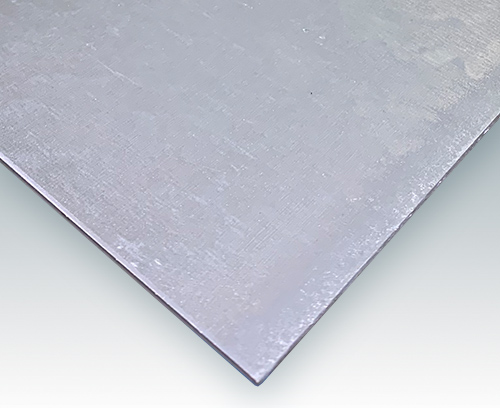

M0000650
Mild Steel Sheet, Galvanised
Sheet mild steel, galvanised for corrosion protection. Suitable for customer specific enclosure parts and sheet metal components.
Available finishes:
- Painting (after pretreatment)
Stocked sizes:
| Thickness |
| 1.0 mm |
| 1.5 mm |
| 2.0 mm |
| 2.5 mm |
M0000650
Mild Steel Sheet, Galvanisedproduct added to your basket
Galvanised

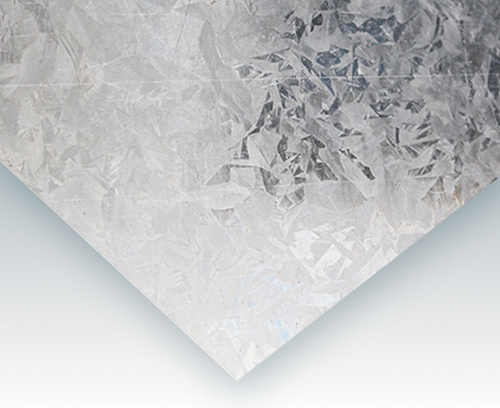

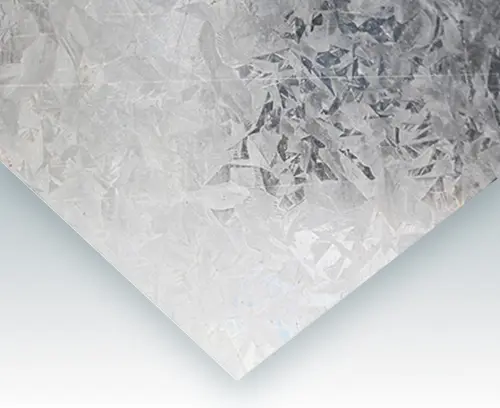

M0000651
Mild Steel Sheet, Galvanised
Bright spangled finish
Sheet mild steel, galvanised for corrosion protection. Suitable for customer specific enclosure parts and sheet metal components.
Available finishes:
- Painting (after pretreatment)
Stocked sizes:
| Thickness |
| 0.9 mm |
| 1.2 mm |
| 3.0 mm |
M0000651
Mild Steel Sheet, Galvanisedproduct added to your basket
Galvanised
M0000652

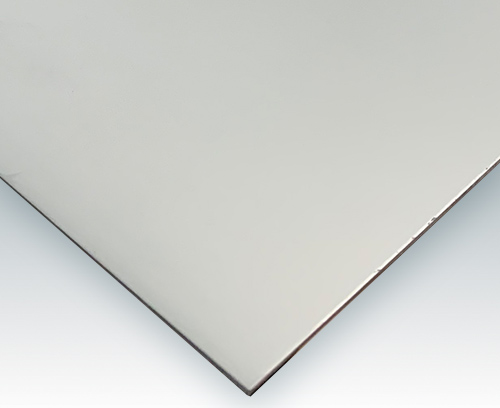

Mild Steel Sheet, Zintec
Sheet mild steel zinc coated for corrosion protection. Suitable for customer specific enclosure parts and sheet metal components.
Available finishes:
- Painting (after pretreatment)
Stocked sizes:
| Thickness |
| 0.9 mm |
| 1.2 mm |
| 1.5 mm |
| 2.0 mm |
M0000652
Mild Steel Sheet, Zintecproduct added to your basket
Zinc coated

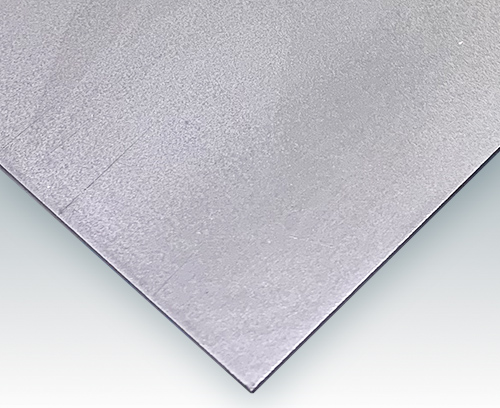

M0000653
Mild Steel Sheet CR4
CR4 sheet mild steel available in stock. Suitable for customer specific enclosure parts and sheet metal components.
Available finishes:
Stocked sizes:
| Thickness |
| 0.9 mm |
| 1.2 mm |
| 1.5 mm |
| 2.0 mm |
M0000653
Mild Steel Sheet CR4product added to your basket
Natural finish
M0000800

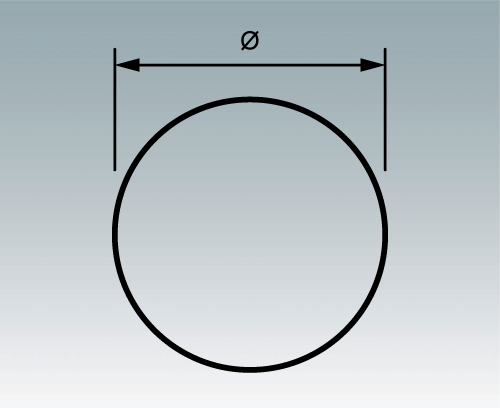

Round Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| Ø Diameter Range (mm) |
| 1.0 to 84.85 |
M0000800
Round Cutoutproduct added to your basket
M0000801

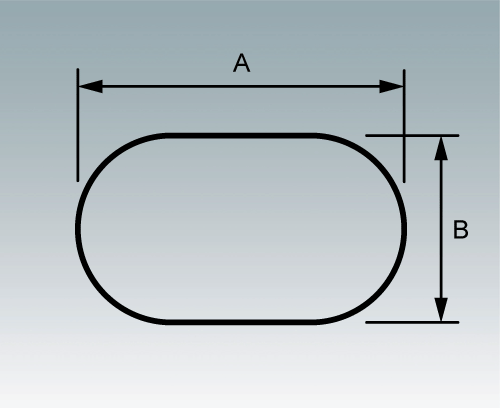

Obround Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| Size Range (mm) |
| 3.5 x 1.6 mm to 25 x 15 |
M0000801
Obround Cutoutproduct added to your basket
M0000802

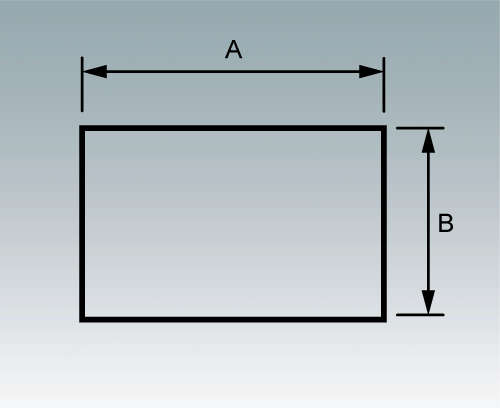

Rectanglular Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Rectangular holes can also be created by using a smaller punch in steps to create a larger hole. Custom punch sizes can also be obtained to suit your specific requirements. Talk to our sales team for more information.
| Size Range (mm) |
| 3.0 x 1.0 to 106.75 x 36.25 |
M0000802
Rectanglular Cutoutproduct added to your basket
M0000803

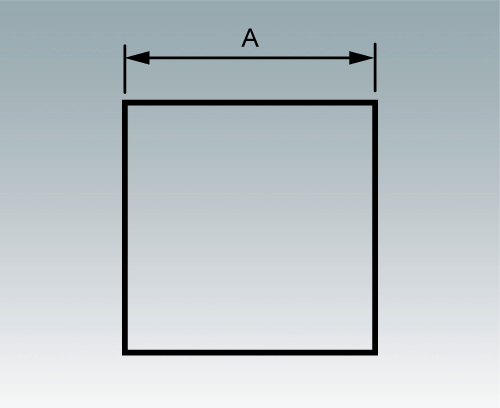

Square Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Square holes can also be created by using a smaller punch in steps to create a larger hole. Custom punch sizes can also be obtained to suit your specific requirements. Talk to our sales team for more information.
| Size Range (mm) |
| 2.0 to 50 |
M0000803
Square Cutoutproduct added to your basket
M0000804

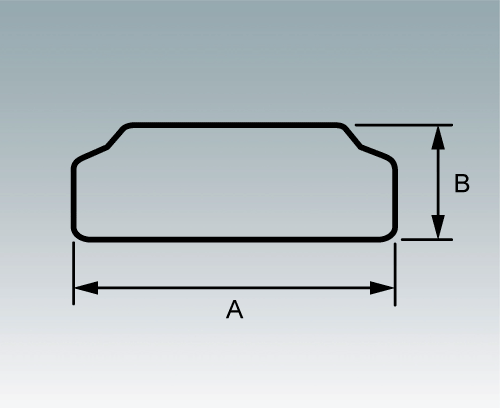

HDMI Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| Dim A (mm) | Dim B (mm) |
| 5.95 | 15.4 |
| 6.8 | 16.3 |
M0000804
HDMI Cutoutproduct added to your basket
M0000805

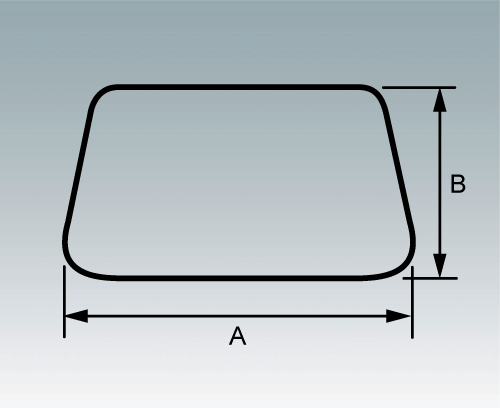

D-SUB Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| Size Range (mm) |
| 18.8 x 10.2 to 43.4 x 12.9 |
M0000805
D-SUB Cutoutproduct added to your basket
M0000806

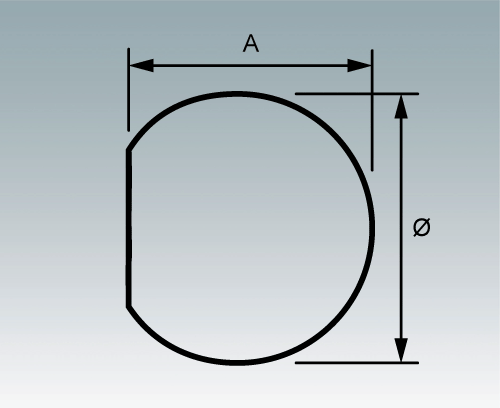

SD Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| Size Range (mm) |
| 4.95 x 4.4 to 56 x 53 |
M0000806
SD Cutoutproduct added to your basket
M0000807

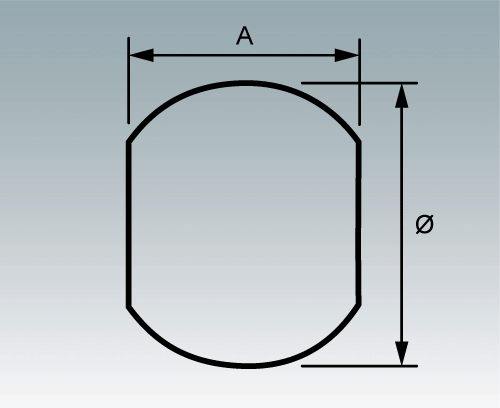

DD Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| Size Range (mm) |
| 4.0 x 2.85 to 35.0 x 30.2 |
M0000807
DD Cutoutproduct added to your basket

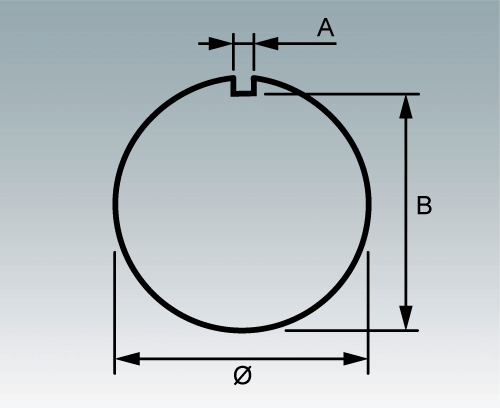

M0000808
Keyway Cutout
Standard punches for sheet metal parts, such as enclosure front panels, rear panels, covers, tops, base panels etc.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| Diameter Size Range (mm) |
| 6.3 to 18.0 |
M0000808
Keyway Cutoutproduct added to your basket
M0000809

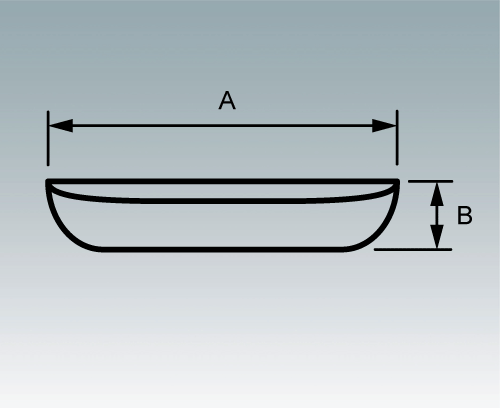

Ventilation Louvre
Standard punches for putting ventilation louvres into enclosure rear panels, covers, tops and base panels. A series of ventilation louvres can punched into the panel to suit your cooling requirements.
Talk to our sales team to discuss your specific requirements.
| Dim A (mm) | Dim B (mm) |
| 49.5 | 15 |
| 78 | 15.7 |
M0000809
Ventilation Louvreproduct added to your basket

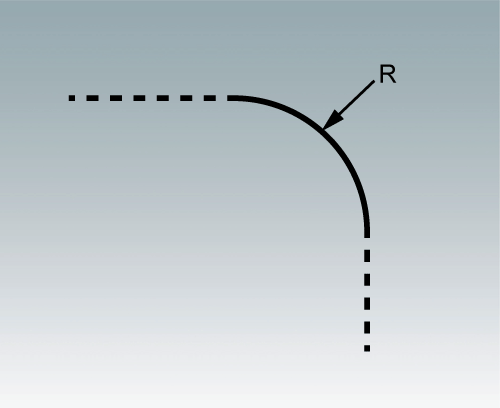

M0000810
Corner Radius
Standard punches for putting a corner radius on the outside corner of enclosure panels. Internal corner radii is generated with our "round" punches.
Your size not here? Custom punch sizes can be obtained to suit your specific requirements. Talk to our sales team for more information.
| R (mm) |
| 2.5 | 4 | 5 | 6 | 10 | 12 | 15 |
M0000810
Corner Radiusproduct added to your basket
