M6490020

PCB Guide, 140 mm

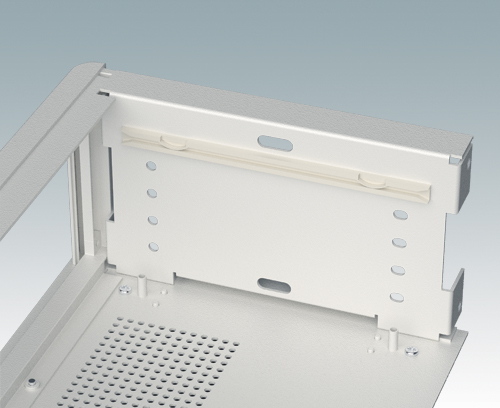

Snap-in PCB guide for 0.5 mm to 2.0 mm thick PCBs. See drawing for punching details. Suitable for Technomet R107, R107H, R110, SL110 and R110H. For Technomet enclosures see ordering details below:

Technomet Model Guides required per PCB PCB positions in case
R107/R107H 2 3
R110/R110H 2 5
SL110 2 5

Supply

1 PCB guide

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for M6490020

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
M6422024 Technomet R107

M6422024

Technomet R107 Modern and highly attractive instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base panel. The internal chassis can also be fitted with 3 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version Without handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422024

Technomet R107
product added to your basket

Anthracite RAL 7016
225x200x75mm
M6422025 Technomet R107

M6422025

Technomet R107 Modern and highly attractive instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 3 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version Without handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422025

Technomet R107
product added to your basket

Light grey RAL 7035
225x200x75mm
M6422026 Technomet R107

M6422026

Technomet R107 Modern and highly attractive instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 3 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version Without handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x8), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422026

Technomet R107
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
225x200x75mm
M6422034 Technomet R107H

M6422034

Technomet R107H Modern and highly attractive instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The handle can be indexed at 30° increments. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted to the base panel. The internal chassis can also be fitted with 3 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB). The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version With handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle/bail arm kit, ABS feet (x4), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422034

Technomet R107H
product added to your basket

Anthracite RAL 7016
225x200x75mm
M6422035 Technomet R107H

M6422035

Technomet R107H Modern and highly attractive instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The handle can be indexed at 30° increments. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted to the base panel. The internal chassis can also be fitted with 3 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Order front panels separately.

Version With handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle/bail arm kit, ABS feet (x4), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422035

Technomet R107H
product added to your basket

Light grey RAL 7035
225x200x75mm
M6422124 Technomet R110

M6422124

Technomet R110 Modern and highly attractive instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version Without handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422124

Technomet R110
product added to your basket

Anthracite RAL 7016
225x200x100mm
M6422125 Technomet R110

M6422125

Technomet R110 Modern and highly attractive instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version Without handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422125

Technomet R110
product added to your basket

Light grey RAL 7035
225x200x100mm
M6422126 Technomet R110

M6422126

Technomet R110 Modern and highly attractive instrument enclosure for desktop electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version Without handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x8), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422126

Technomet R110
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
225x200x100mm
M6422134 Technomet R110H

M6422134

Technomet R110H Modern and highly attractive instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The handle can be indexed at 30° increments. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted to the base panel. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version With handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle/bail arm kit, ABS feet (x4), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422134

Technomet R110H
product added to your basket

Anthracite RAL 7016
225x200x100mm
M6422135 Technomet R110H

M6422135

Technomet R110H Modern and highly attractive instrument enclosure with handle/bail arm for desktop and portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The handle can be indexed at 30° increments. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted to the base panel. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB).

The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version With handle

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), carry handle/bail arm kit, ABS feet (x4), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6422135

Technomet R110H
product added to your basket

Light grey RAL 7035
225x200x100mm
M6423124 Technomet SL110

M6423124

Technomet SL110 Modern and highly attractive instrument enclosure with sloping front bezel for desktop or portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB). The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version With sloping front

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6423124

Technomet SL110
product added to your basket

Anthracite RAL 7016
225x230x100mm
M6423125 Technomet SL110

M6423125

Technomet SL110 Modern and highly attractive instrument enclosure with sloping front bezel for desktop or portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB). The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version With sloping front

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x2), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6423125

Technomet SL110
product added to your basket

Light grey RAL 7035
225x230x100mm
M6423126 Technomet SL110

M6423126

Technomet SL110 Modern and highly attractive instrument enclosure with sloping front bezel for desktop or portable electronics. Stylish front and rear bezels are fitted to the aluminium case body. Clip-on trims at the front and rear hide the assembly screws and front panel screws, giving a very professional appearance. The pre-assembled internal chassis is supplied with four M3 PCB mounting pillars fitted in the base. The internal chassis can also be fitted with 5 slide-in PCBs using the accessory snap-in guide M6490020 (order 2 guides per PCB). The case is supplied with a rear panel and four ABS feet with tilt legs. Ventilation slots are provided in the base and rear panel. Order front panels separately.

Version With sloping front

Supply Front bezel (x2), top cover, base and chassis assembly, rear panel, front trim (x2), rear trim (x2), trim clips (x8), ABS feet (x4), ABS tilt legs (x2), M3 x 6 mm (x8), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

M6423126

Technomet SL110
product added to your basket

Traffic white/traffic grey A RAL 9016/7042
225x230x100mm
Material

Colour
Natural finish
Standards
REACH compliant
RoHS compliant
Length
139.7 mm
Width
7.5 mm
Height
3.5 mm

Catalogue Pages

Drawings

Weight/1 part
3 g
Customs tariff number
(METCASE product)
39269097
Country of manufacture
UK
