M7023002

TECHNOMET-CONTROL C218V

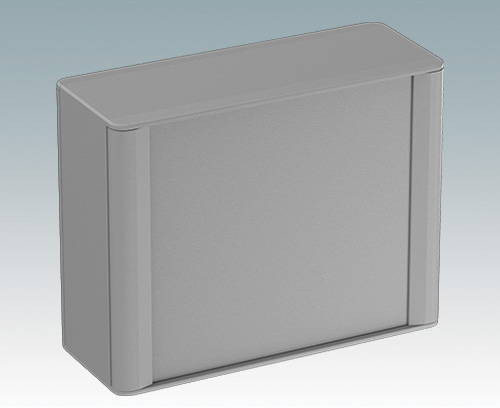

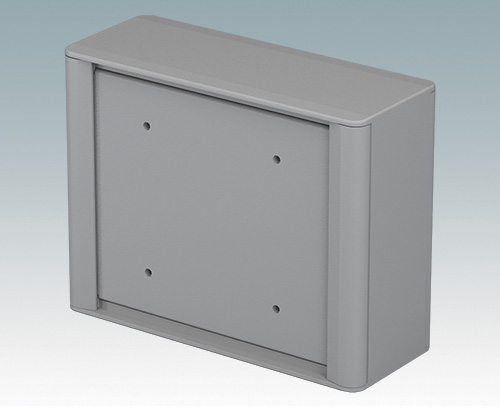

Modern and highly attractive aluminium instrument enclosure for fitting displays, touch screens and HMI electronics. VESA MIS-D 100 mounting points are provided on the rear panel for fitting the unit to a standard VESA control arm or mounting bracket. Stylish front and rear diecast bezels are fitted to the case body. Clip-on trims at the front and rear hide all the assembly screws, giving a very professional appearance. The base panel on the underside provides space for cable entry. M3 PCB mounting pillars are provided inside. The assembly extrusions also have M3 mounting holes and guide rails for fitting internal plates. M4 earth studs are fitted to all parts; some studs can also be used with retaining straps to hold the front/rear panels during maintenance. Front panels are sold separately. Accessories include a wall mounting kit, a pole mounting bracket and an internal mounting plate.

COMPATIBLE DISPLAYS

SIEMENS: KTP400, MTP400
TURCK: TX705, TX805
BEIJER: X2 base 5 v2, X2 Pro 4

Version

With VESA mount

Supply

Front bezel (x2), top cover, base, assembly extrusion (x4), rear panel, front trim (x4), trim clips (x8), M3 x 6 mm (x6), M3 x 8 mm (x8), M4 x 16 mm (x8). Supplied assembled.

2D PDF Drawing
3D/2D download

Generate Your PDF Datasheet for M7023002

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory

M7000700 Front Panel A – C218

M7000700

Front Panel A – C218 Anodised front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

M7000700

Front Panel A – C218
product added to your basket

Matt anodised
202x2x170.8mm
M7000720 Front Panel P – C218

M7000720

Front Panel P – C218 Painted front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

M7000720

Front Panel P – C218
product added to your basket

Traffic white RAL 9016
202x2x170.8mm
M7000740 Front Panel P – C218

M7000740

Front Panel P – C218 Painted front panel for enclosure version C218.

Supply Front panel (fixings supplied with the cases).

M7000740

Front Panel P – C218
product added to your basket

Traffic grey A RAL 7042
202x2x170.8mm
M7000900 Wall Mounting Kit S

M7000900

Wall Mounting Kit S Wall mounting kit for case version C218.

Supply Wall plate (x1), case bracket (x2), M4 x 6 mm (x4), M4 x 25 mm (x2)

M7000900

Wall Mounting Kit S
product added to your basket

Traffic white RAL 9016
157x145x16mm
M7000920 Pole-Mount Bracket

M7000920

Pole-Mount Bracket Pole-mounting bracket for fixing the enclosure to a pole ⌀50 mm or larger (mounting straps not included). Fits to the VESA mounting holes on all enclosure versions.

Supply Bracket (x1), M4 x 6 mm (x4)

M7000920

Pole-Mount Bracket
product added to your basket

Traffic white RAL 9016
120x125x45mm
M7000940 Internal Mounting Plate Kit – C218

M7000940

Internal Mounting Plate Kit – C218 Internal mounting plate kit for enclosure size C218. For mounting heavy PCB assemblies, power supplies etc. Fits to the M3 mounting pillars in the rear panel.

Supply Mounting plate, M3 x 8 (x4)

M7000940

Internal Mounting Plate Kit – C218
product added to your basket

Natural finish
181x155x1.5mm
Material

Colour
Traffic grey A RAL 7042
Standards
REACH compliant
VESA MIS-D 100
RoHS compliant
Width
230 mm
Height
180 mm
Depth
95 mm

Catalogue Pages

Drawings

3D Models

Weight/1 part
1.2 kg
Customs tariff number
(METCASE product)
76169990
Country of manufacture
UK

View our customising options and don't forget to request a quotation!
