M6420204

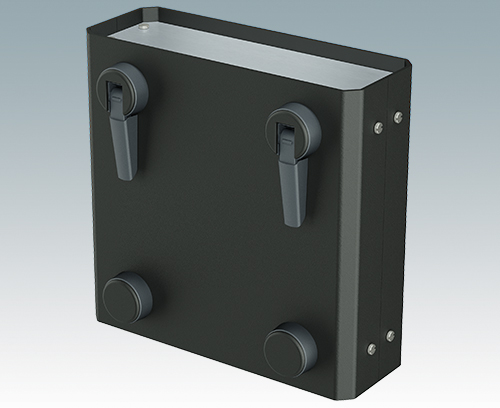

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

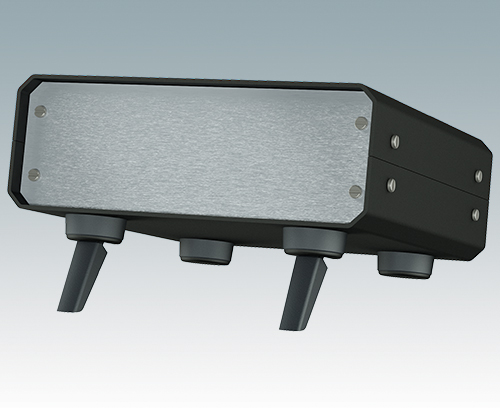

With tilt legs

Foot moulding (x4), tilt leg (x2), black TPE non-slip insert (x4), self-tapping screw (x4).
