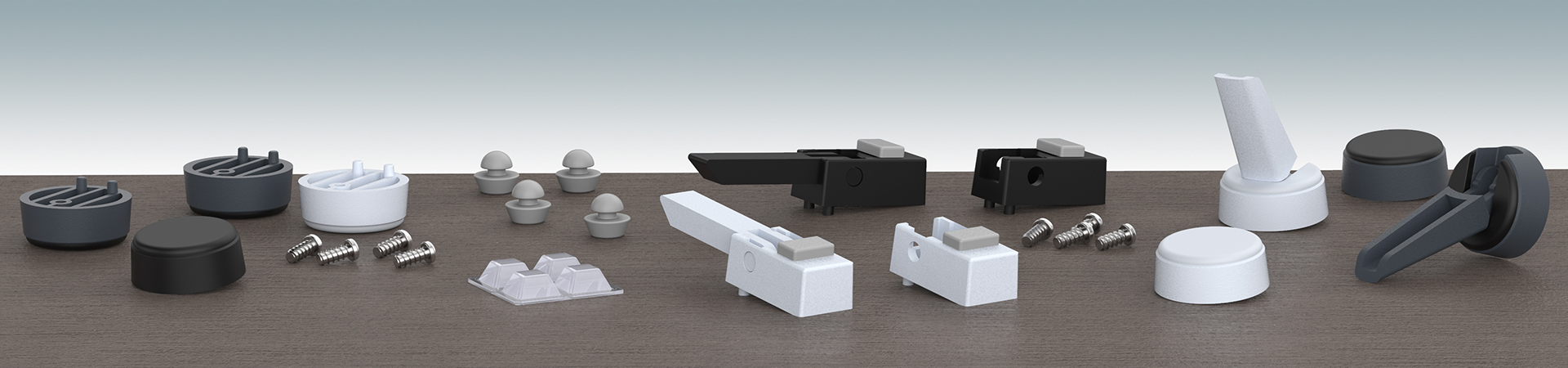

Enclosure Feet

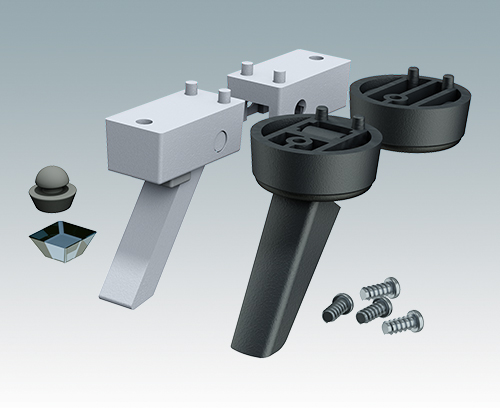

  • Universal feet for mounting to metal or plastic enclosures
  • Technofeet - stylish and modern round plastic feet with or without tilt legs
  • Case Feet - tough plastic feet with or without tilt legs

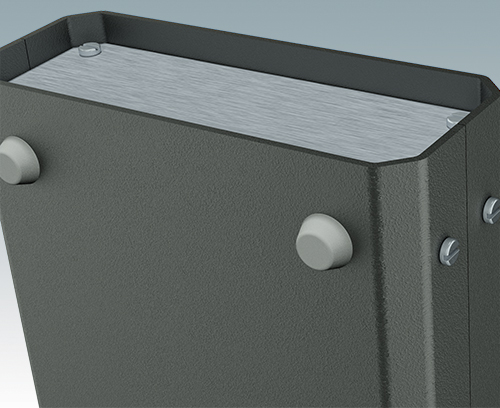

  • Self-adhesive rubber non-slip feet
  • Push-in rubber non-slip feet
  • Call us for a free sample!
Generate PDF

Application Fields

Universal feet for mounting to any metal or plastic enclosures.

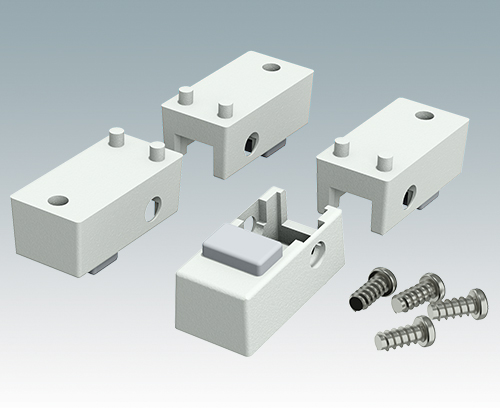

A9257107 Case Feet Kit 1

A9257107

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

A9257107

Case Feet Kit 1
product added to your basket

Off-white RAL 9002
34x17x16mm
A9257207 Case Feet Kit 2

A9257207

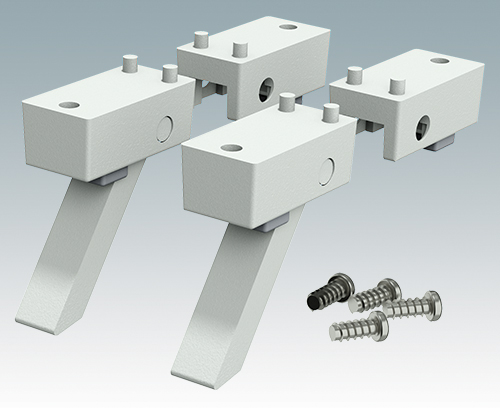

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

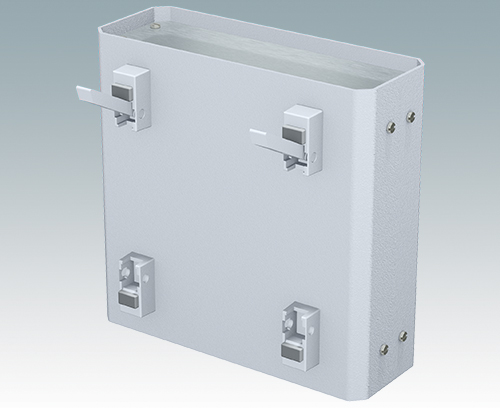

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

A9257207

Case Feet Kit 2
product added to your basket

Off-white RAL 9002
34x17x16mm
M5403002 Rubber Foot

M5403002

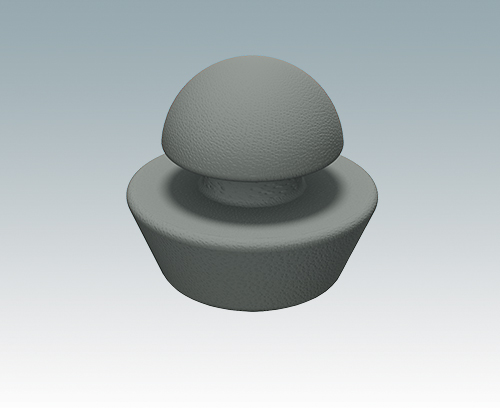

Rubber Foot Push-in grey rubber non-slip foot for fitting to any metal or plastic enclosures with a panel thickness of up to 2 mm. Drill hole Ø7 mm in panel to fit.

Supply 1 rubber foot

M5403002

Rubber Foot
product added to your basket

Grey
12.7x12.7x5mm

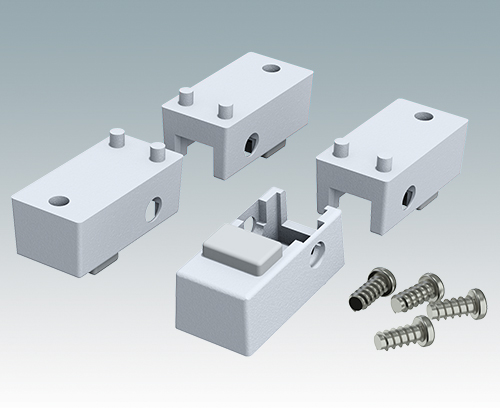

M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M5600015

Case Feet Kit 1
product added to your basket

Light grey RAL 7035
34x17x16mm

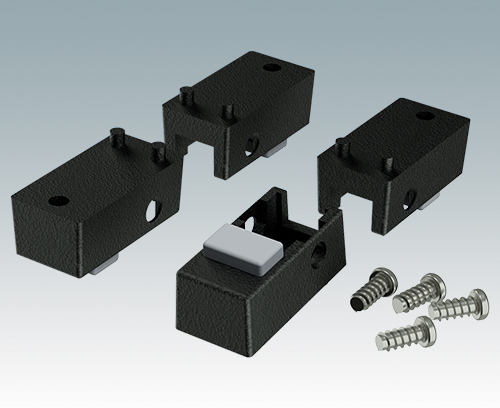

M5600019 Case Feet Kit 1

M5600019

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M5600019

Case Feet Kit 1
product added to your basket

Black RAL 9005
34x17x16mm
M5600045 Case Feet Kit 2

M5600045

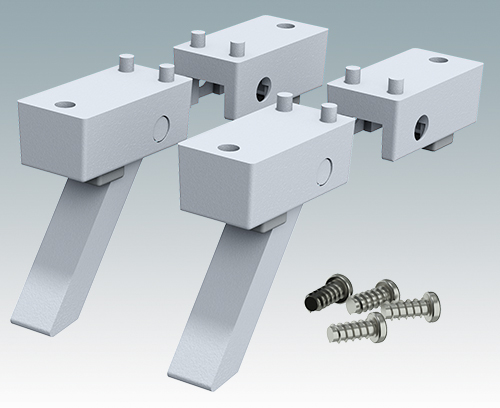

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M5600045

Case Feet Kit 2
product added to your basket

Light grey RAL 7035
34x17x16mm
M5600049 Case Feet Kit 2

M5600049

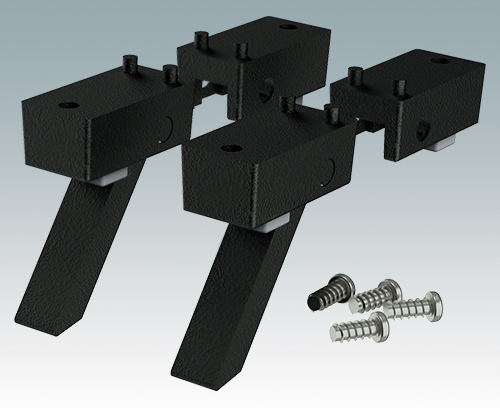

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M5600049

Case Feet Kit 2
product added to your basket

Black RAL 9005
34x17x16mm
M5600100 Non-slip feet

M5600100

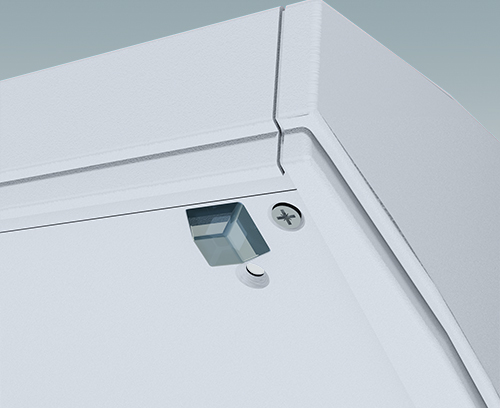

Non-slip feet Self-adhesive non-slip feet for enclosures. Peel off the backing pad.

Supply 4 feet on a backing pad

M5600100

Non-slip feet
product added to your basket

Transparent
12.6x12.6x5.7mm

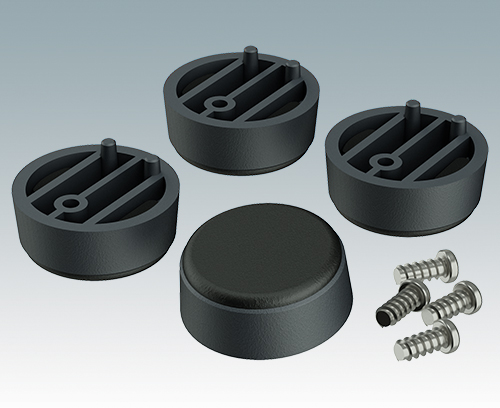

M6420104 Technofeet Kit 1

M6420104

Technofeet Kit 1 Stylish and modern case feet for fitting to any type of plastic or metal enclosure. Three part assembly with foot body, anti-skid TPE pad and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative longer screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details. Call us for a free sample.

Version Without tilt legs

Supply Foot moulding (x4), black TPE non-slip insert (x4), self-tapping screw (x4).

M6420104

Technofeet Kit 1
product added to your basket

Anthracite RAL 7016
30x30x12mm

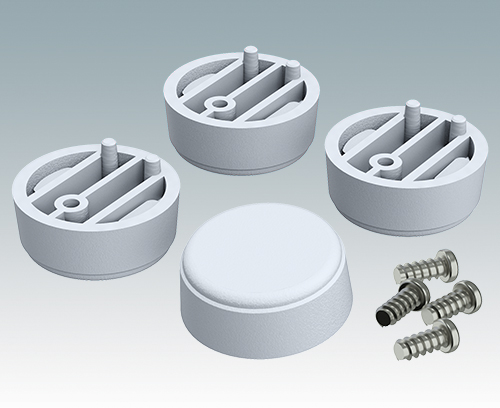

M6420105 Technofeet Kit 1

M6420105

Technofeet Kit 1 Stylish and modern case feet for fitting to any type of plastic or metal enclosure. Three part assembly with foot body, anti-skid TPE pad and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative longer screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details. Call us for a free sample.

Version Without tilt legs

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M6420105

Technofeet Kit 1
product added to your basket

Light grey RAL 7035
30x30x12mm

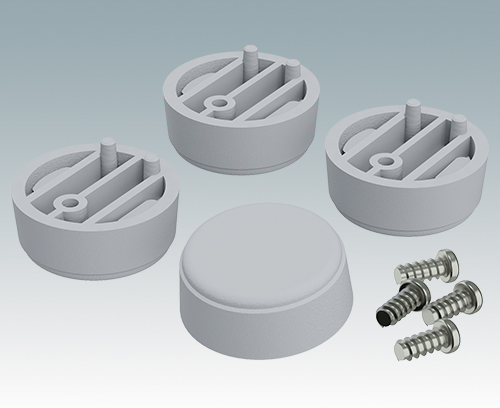

M6420106 Technofeet Kit 1

M6420106

Technofeet Kit 1 Stylish and modern case feet for fitting to any type of plastic or metal enclosure. Three part assembly with foot body, anti-skid TPE pad and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative longer screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details. Call us for a free sample.

Version Without tilt legs

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M6420106

Technofeet Kit 1
product added to your basket

Traffic grey A RAL 7042
30x30x12mm
M6420109 Technofeet Kit 1

M6420109

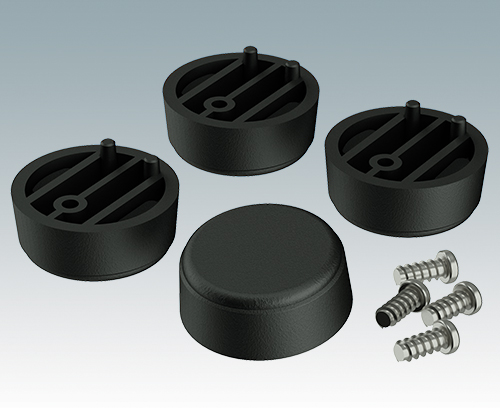

Technofeet Kit 1 Stylish and modern case feet for fitting to any type of plastic or metal enclosure. Three part assembly with foot body, anti-skid TPE pad and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative longer screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details. Call us for a free sample.

Version Without tilt legs

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M6420109

Technofeet Kit 1
product added to your basket

Black RAL 9005
30x30x12mm
M6420204 Technofeet Kit 2

M6420204

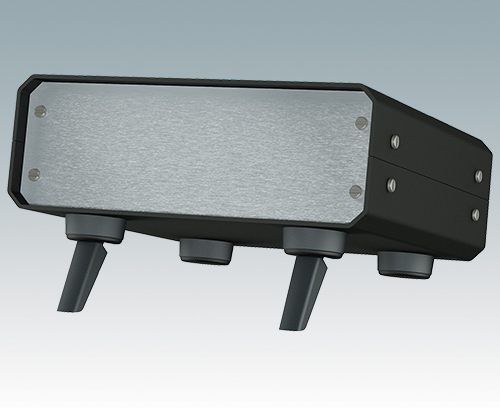

Technofeet Kit 2 Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs

Supply Foot moulding (x4), tilt leg (x2), black TPE non-slip insert (x4), self-tapping screw (x4).

M6420204

Technofeet Kit 2
product added to your basket

Anthracite RAL 7016
30x30x12mm

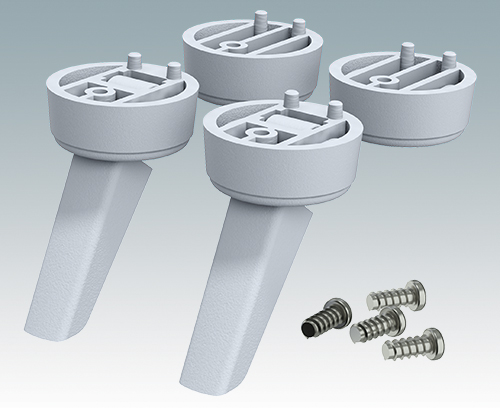

M6420205 Technofeet Kit 2

M6420205

Technofeet Kit 2

Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M6420205

Technofeet Kit 2
product added to your basket

Light grey RAL 7035
30x30x12mm

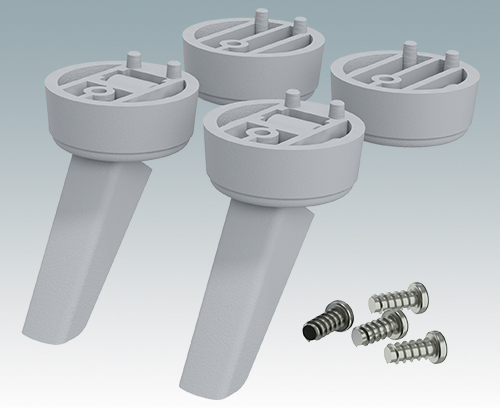

M6420206 Technofeet Kit 2

M6420206

Technofeet Kit 2 Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M6420206

Technofeet Kit 2
product added to your basket

Traffic grey A RAL 7042
30x30x12mm
M6420209 Technofeet Kit 2

M6420209

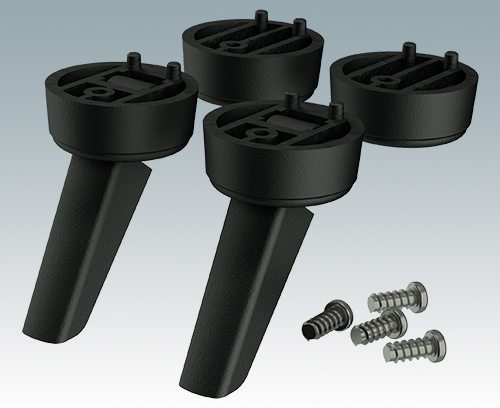

Technofeet Kit 2 Stylish and modern case feet with tilt legs for canting. Universal design for fitting to any type of plastic or metal enclosure. Four part assembly with foot body, push-in anti-skid TPE pad, tilt leg with 120° rotation and self-tapping screw. Max. enclosure wall thickness 3 mm with screws provided (alternative screws can be supplied for larger wall thicknesses). Simply drill three holes per foot in the enclosure panel - see drawings for drilling details.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M6420209

Technofeet Kit 2
product added to your basket

Black RAL 9005
30x30x12mm
