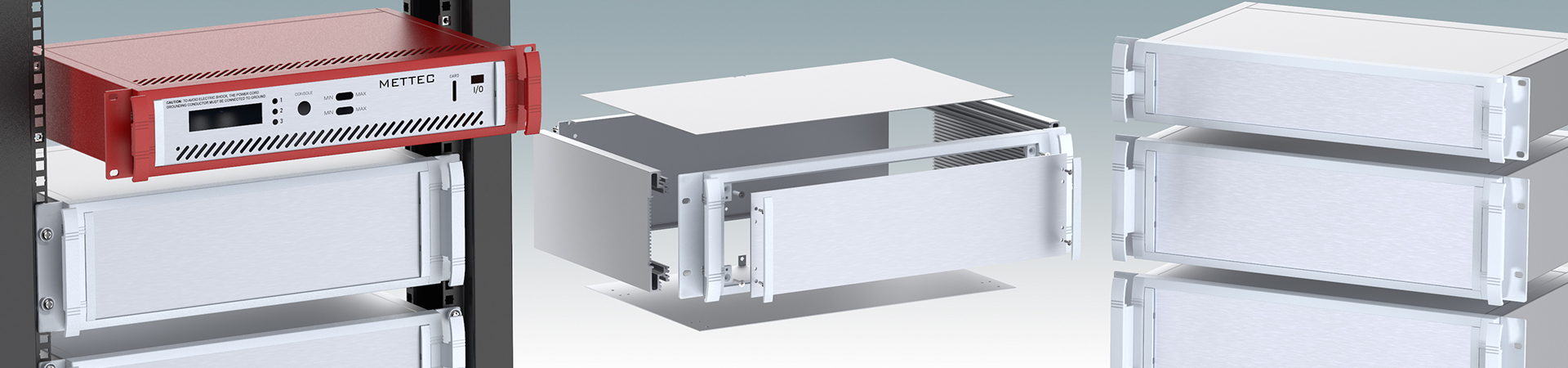

Mettec 19"

Robust 19" rack mount enclosures to DIN 41494 and IEC 60297-3

  • Exclusive range of 19" rack cases in aluminium in 2U and 3U sizes
  • Three standard depths, custom sizes to order

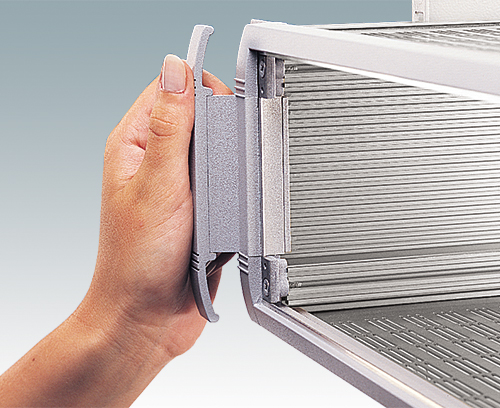

  • Attractive diecast front bezel incorporating unique 'comfort-handles' and rack mounting ears powder painted light grey, RAL 7035

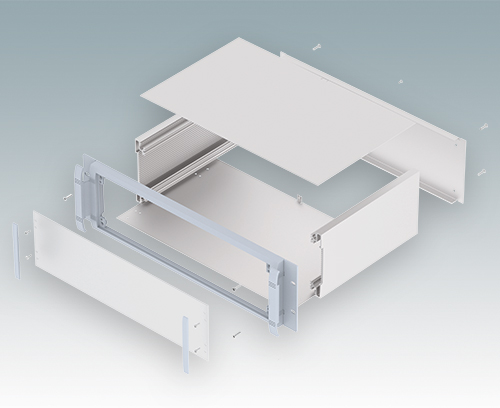

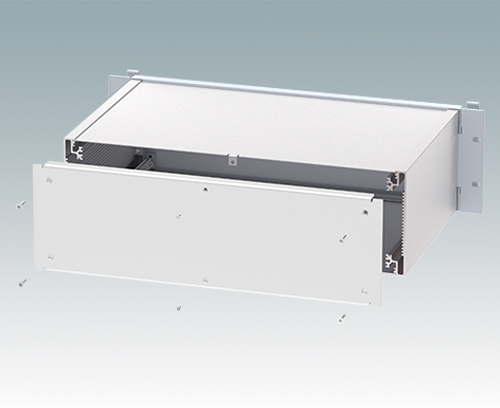

  • Robust case body assembly includes flat top and base panels, two side extrusions and the rear panel
  • Side extrusions, top, base and rear panels are supplied in an Iridite NCP conductive finish
  • Internal guide rails for PCBs and chassis plates

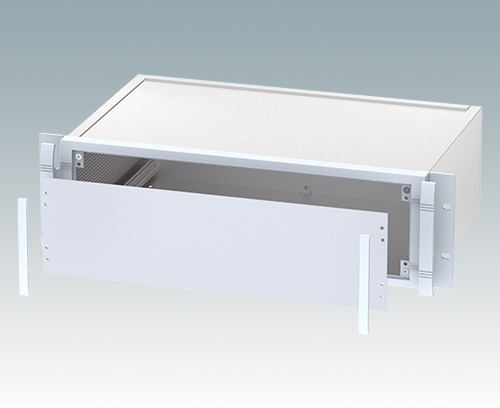

  • Front panel (accessory) recessed in bezel for locating keypads or labels
  • Accessory internal mounting plates
  • Cases supplied fully assembled.

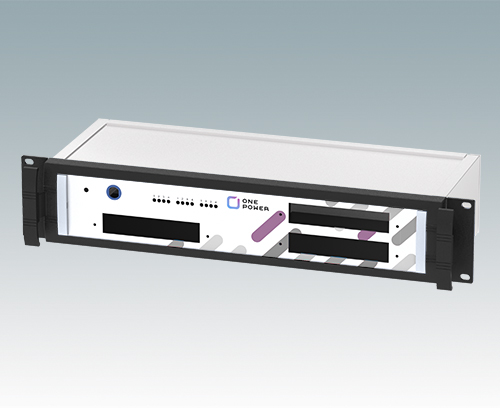

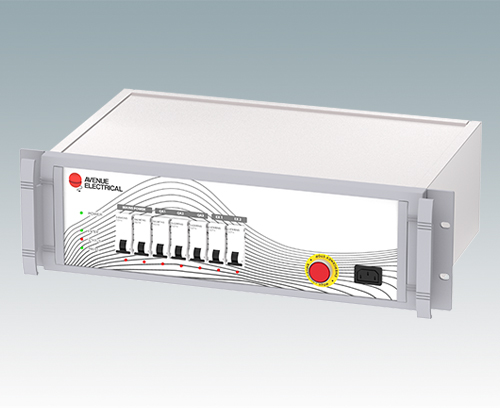

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

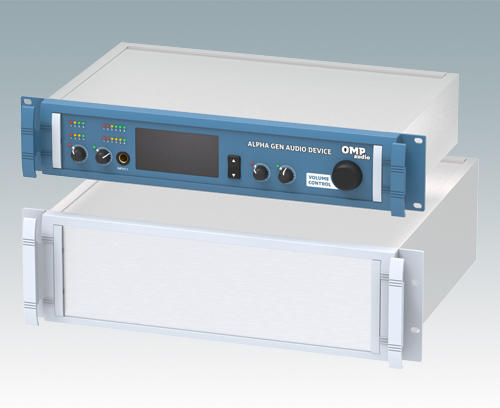

Rack mounted electronics such as networking and communications equipment, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.

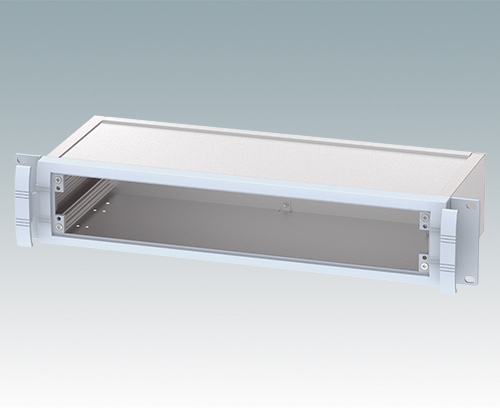

M5920015 METTEC 19" 2Ux167mm

M5920015

METTEC 19" 2Ux167mm

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.

M5920015

METTEC 19" 2Ux167mm
product added to your basket

Light grey RAL 7035
88x482.6x167.5mm

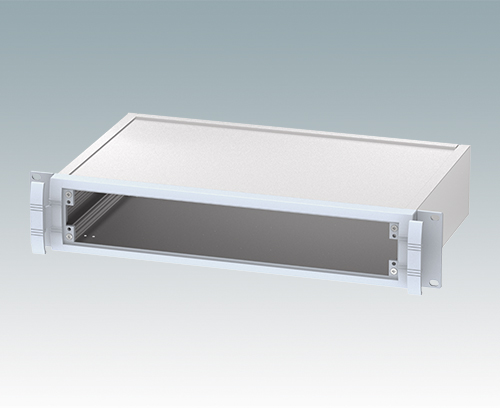

M5920025 METTEC 19" 2Ux267mm

M5920025

METTEC 19" 2Ux267mm

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.

M5920025

METTEC 19" 2Ux267mm
product added to your basket

Light grey RAL 7035
88x482.6x267.5mm

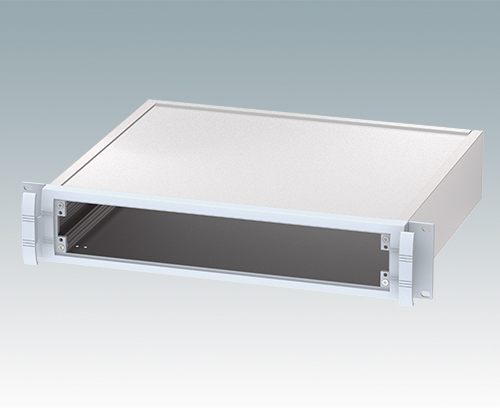

M5920035 METTEC 19" 2Ux367mm

M5920035

METTEC 19" 2Ux367mm

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.

M5920035

METTEC 19" 2Ux367mm
product added to your basket

Light grey RAL 7035
88x482.6x367.5mm

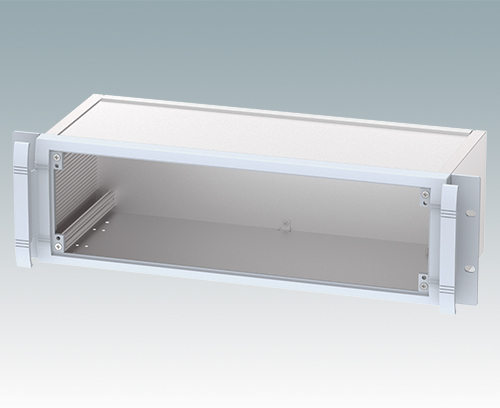

M5930015 METTEC 19" 3Ux167mm

M5930015

METTEC 19" 3Ux167mm

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.

M5930015

METTEC 19" 3Ux167mm
product added to your basket

Light grey RAL 7035
132.6x482.6x167.5mm

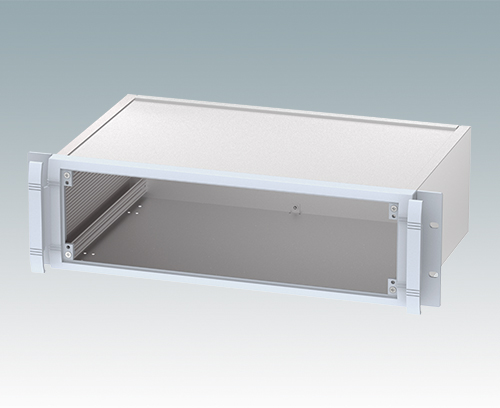

M5930025 METTEC 19" 3Ux267mm

M5930025

METTEC 19" 3Ux267mm

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.

M5930025

METTEC 19" 3Ux267mm
product added to your basket

Light grey RAL 7035
132.6x482.6x267.5mm

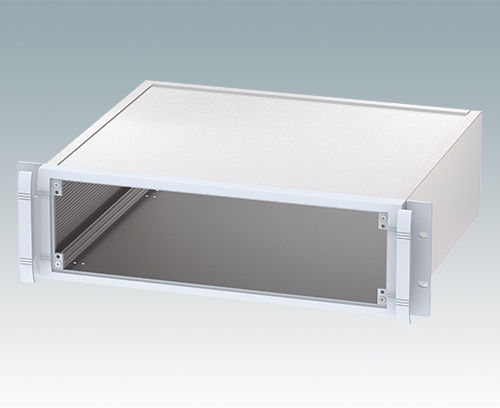

M5930035 METTEC 19" 3Ux367mm

M5930035

METTEC 19" 3Ux367mm

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.

Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.

Supply Front bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.

M5930035

METTEC 19" 3Ux367mm
product added to your basket

Light grey RAL 7035
132.6x482.6x367.5mm
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005

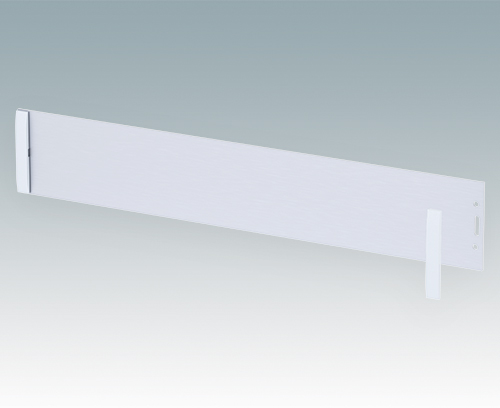

M5900020 Front panel kit (2U)

M5900020

Front panel kit (2U) Anodised aluminium front panel kit for 2U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

M5900020

Front panel kit (2U)
product added to your basket

Matt anodised
392.5x2x67.1mm

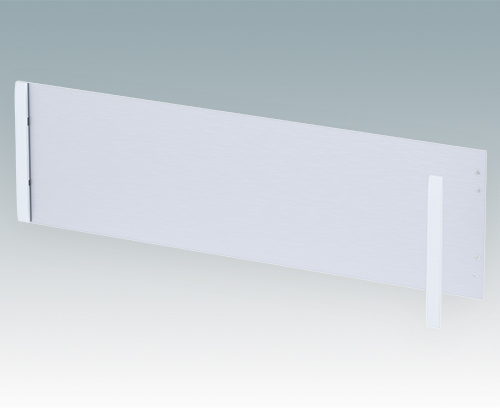

M5900030 Front panel kit (3U)

M5900030

Front panel kit (3U) Anodised aluminium front panel kit for 3U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

M5900030

Front panel kit (3U)
product added to your basket

Matt anodised
392.5x2x111mm

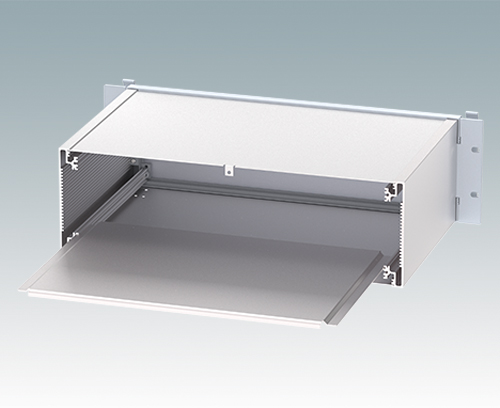

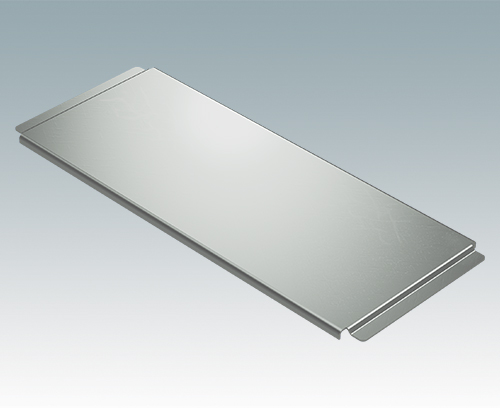

M5900201 Chassis plate (167mm)

M5900201

Chassis plate (167mm) Internal chassic plate for METTEC 19" enclosures 167 mm deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.

Supply Chassis plate

M5900201

Chassis plate (167mm)
product added to your basket

Natural finish
377x149x7.5mm

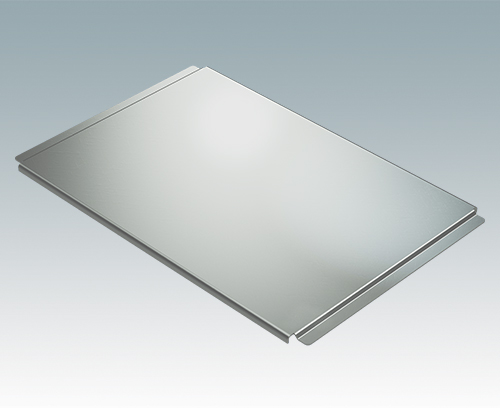

M5900202 Chassis plate (267mm)

M5900202

Chassis plate (267mm) Internal chassic plate for METTEC 19" enclosures 267 mm deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.

Supply Chassis plate

M5900202

Chassis plate (267mm)
product added to your basket

Natural finish
377x249x7.5mm

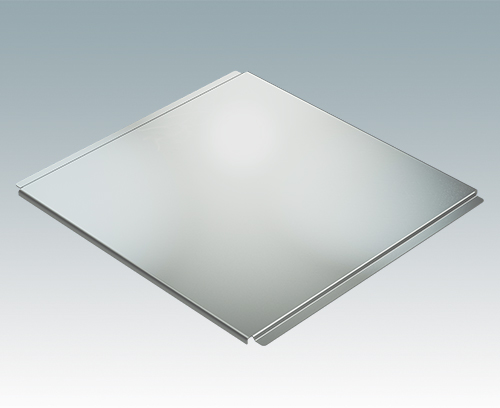

M5900203 Chassis plate (367mm)

M5900203

Chassis plate (367mm) Internal chassic plate for METTEC 19" enclosures 367 mm deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.

Supply Chassis plate

M5900203

Chassis plate (367mm)
product added to your basket

Natural finish
377x349x7.5mm
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
