19" Enclosures
M5930035
METTEC 19" 3Ux367mm

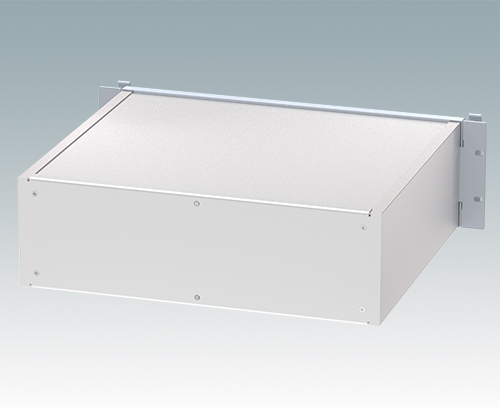

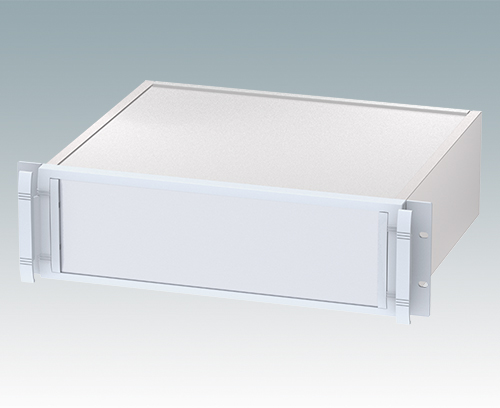

Modern and robust 19" rack case with integrated 'comfort handles'. All aluminium design with attractive die cast front bezel, extruded side panels with internal PCB/chassis guide rails, rear panel and flat top and base panel. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panels separately.
Front bezel painted in light grey, RAL 7035. Side extrusions, top, base and rear panels are supplied coated in Iridite NCP clear conductive finish.
SupplyFront bezel, side extrusion (x2), rear panel, top panel, base panel, M4 x 16 mm (x8), M3 x 10 mm (x4). Suppled assembled.
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for M5930035
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory
M5900016
19" mounting kit
Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.
Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).
M5900016
19" mounting kitproduct added to your basket
M5900030
Front panel kit (3U)
Anodised aluminium front panel kit for 3U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.
Supply Front panel, 2 trims (fixings supplied with the cases)
M5900030
Front panel kit (3U)product added to your basket
Matt anodised
392.5x2x111mm
M5900203
Chassis plate (367mm)
Internal chassic plate for METTEC 19" enclosures 367 mm deep. For mounting PCBs, power supplies and electronic assemblies. Fits to the guide rails in the enclosure side extrusions.
Supply Chassis plate
M5900203
Chassis plate (367mm)product added to your basket
Natural finish
377x349x7.5mm
M6000035
19" mounting kit
Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).
M6000035
19" mounting kitproduct added to your basket
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Colour
Light grey RAL 7035,
Natural finish
Natural finish
Standards
REACH compliant
RoHS compliant
RoHS compliant
Height
132.6 mm
Width
482.6 mm
Depth
367.5 mm
Height Unit
3 U
PCB length, base
350 mm
PCB width, base
379 mm
Catalogue Pages
- METTEC 19" catalogue (English) 3,122 KB
- METTEC 19-Zoll Katalog (Deutsch) 3,086 KB
- Catálogo METTEC 19" (Español) 3,272 KB
- METTEC 19" Catalogue (Français) 3,043 KB
Drawings
- PDF-File 325 KB
- AutoCAD DWG-File 414 KB
- AutoCAD DXF-File 2,176 KB
3D Models
- M5930035.sat 5,337 KB
- M5930035.x_t 1,640 KB
- M5930035.stp 1,851 KB
Weight/1 part
3.5 kg
Customs tariff number
(METCASE product)
(METCASE product)
76169990
Country of manufacture
UK
View our customising options and don't forget to request a quotation!
