19" Enclosures
M6010305
INSTRUMET 10.5" 3Ux350mm

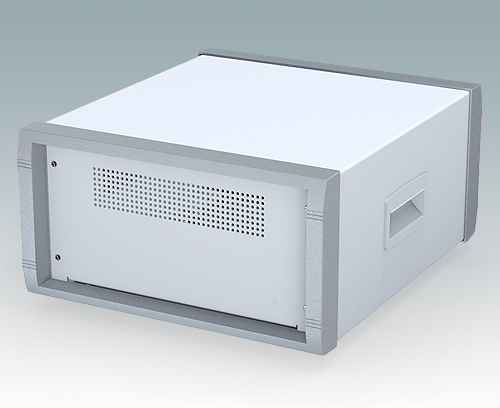

Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.
VersionWith side handles
SupplyFront bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.
2D PDF Drawing
3D/2D download
3D/2D download
Generate Your PDF Datasheet for M6010305
Please select the product details you would like to include in the PDF.
Add to my basket
Accessory
M5900016
19" mounting kit
Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.
Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).
M5900016
19" mounting kitproduct added to your basket
M6000035
19" mounting kit
Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.
Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).
M6000035
19" mounting kitproduct added to your basket
M6010001

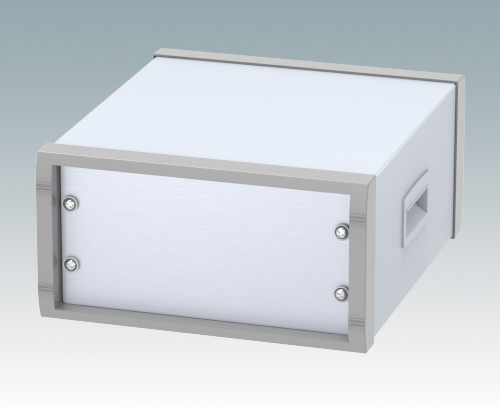

Front panel 3Ux10.5"
Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.
Supply Front panel
M6010001
Front panel 3Ux10.5"product added to your basket
Matt anodised
269.2x3x132.5mm
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Material
Colour
Light grey/window grey RAL 7035/7040
Standards
IEC 60297-3
REACH compliant
DIN 41494
RoHS compliant
REACH compliant
DIN 41494
RoHS compliant
Height
157 mm
Width
303 mm
Depth
350 mm
Height Unit
3 U
Catalogue Pages
- INSTRUMET 19" catalogue (English) 3,488 KB
- INSTRUMET 19-Zoll Katalog (Deutsch) 3,362 KB
- Catálogo INSTRUMET 19" (Español) 3,574 KB
- INSTRUMET 19" Catalogue (Français) 3,378 KB
Drawings
- PDF-File 178 KB
- AutoCAD DWG-File 488 KB
- AutoCAD DXF-File 2,827 KB
3D Models
- M6010305.sat 7,578 KB
- M6010305.x_t 3,048 KB
- M6010305.stp 4,231 KB
Weight/1 part
2.5 kg
Customs tariff number
(METCASE product)
(METCASE product)
76169990
Country of manufacture
UK
