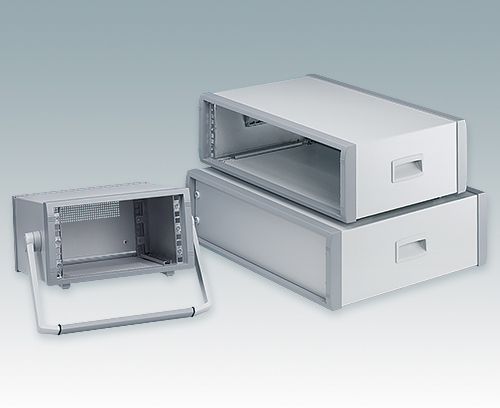

Instrumet 19"

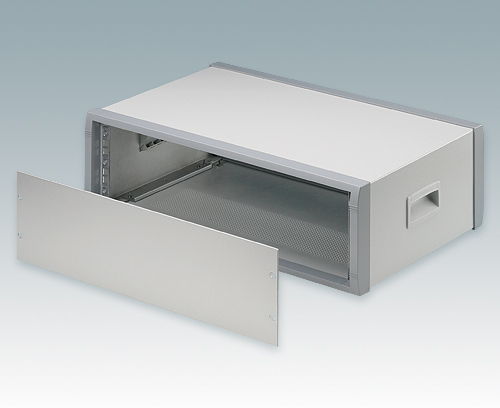

Stylish 3U Instrument Enclosures

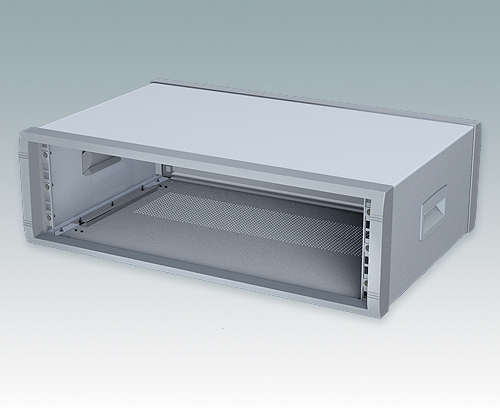

  • Modern 10.5" and 19" width rack mount cases, conform to DIN 41494 & IEC 60297-3

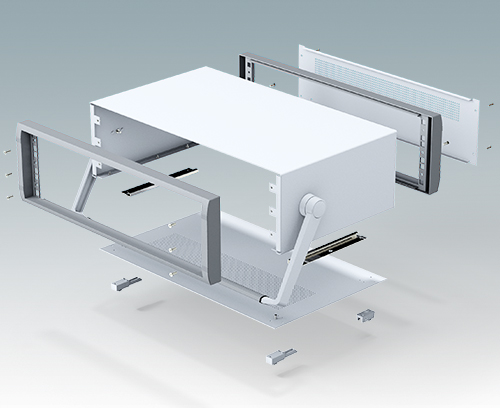

  • Robust yet lightweight aluminium construction with die cast front and rear bezels and fabricated case body

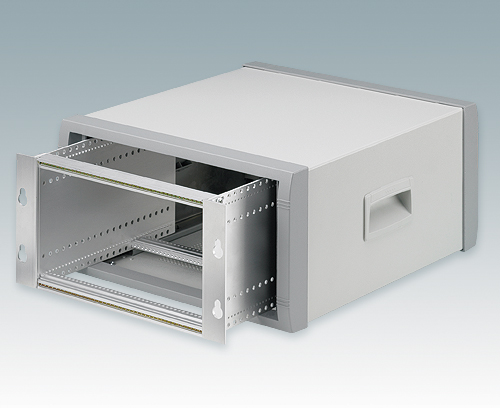

  • Designed to accept standard 3U subracks, chassis and front panels

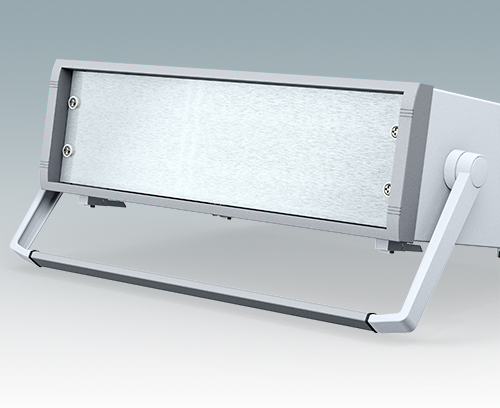

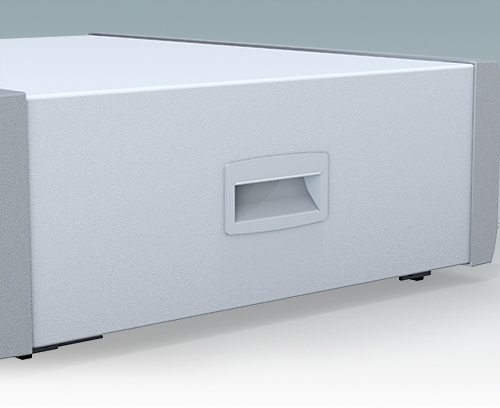

  • Supplied with two ABS side handles or a metal tilt/swivel carry handle

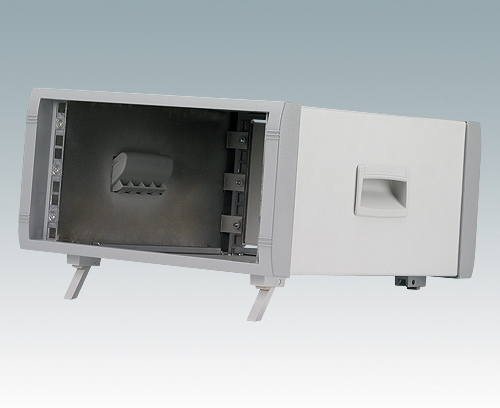

  • Supplied fully assembled with four moulded ABS non-slip tilt feet

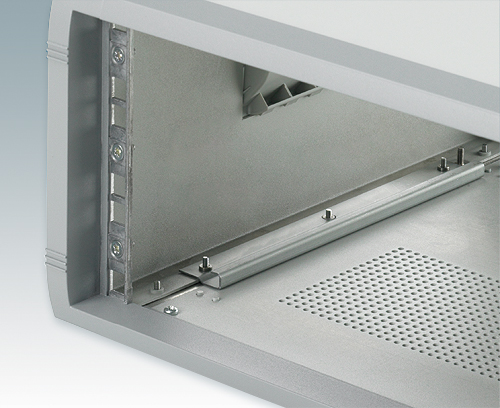

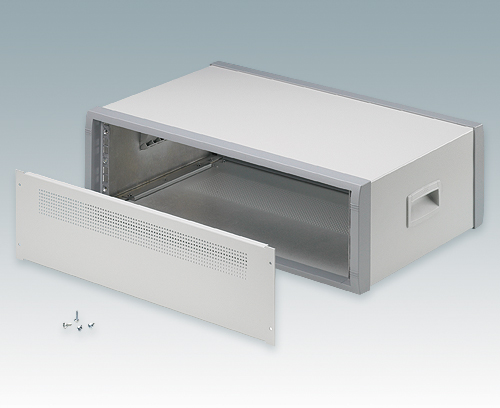

  • Internal subrack/chassis support rails and rear panel included
  • Ventilation holes in base and rear panel
  • Three M4 earth studs provided inside
  • Accessory anodised 10.5" and 19" front panels available.

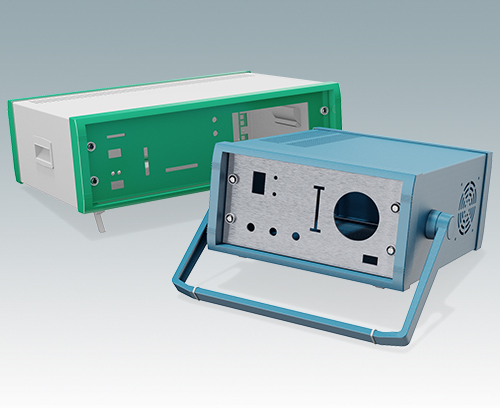

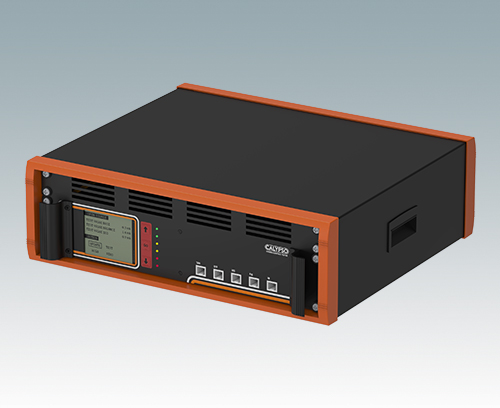

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

19" subrack or chassis based electronics such as test and measurement equipment, networking and communications devices, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.

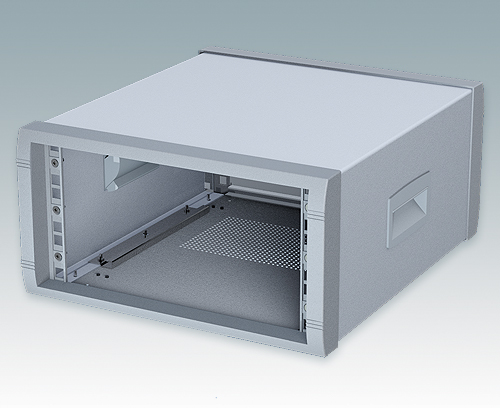

M6010305 INSTRUMET 10.5" 3Ux350mm

M6010305

INSTRUMET 10.5" 3Ux350mm Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6010305

INSTRUMET 10.5" 3Ux350mm
product added to your basket

Light grey/window grey RAL 7035/7040
157x303x350mm

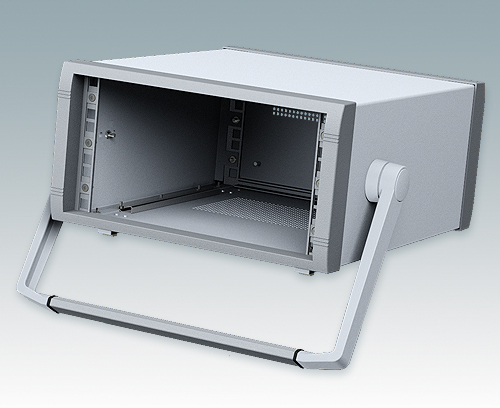

M6010315 INSTRUMET 10.5" 3Ux350mm

M6010315

INSTRUMET 10.5" 3Ux350mm Stylish 10.5" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6010315

INSTRUMET 10.5" 3Ux350mm
product added to your basket

Light grey/window grey RAL 7035/7040
157x303x350mm
M6019305 INSTRUMET 19" 3Ux350mm

M6019305

INSTRUMET 19" 3Ux350mm Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6019305

INSTRUMET 19" 3Ux350mm
product added to your basket

Light grey/window grey RAL 7035/7040
157x516x350mm

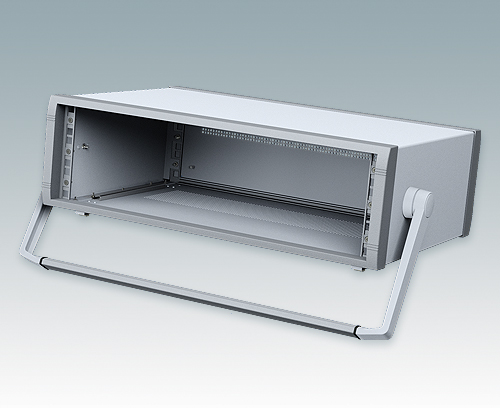

M6019315 INSTRUMET 19" 3Ux350mm

M6019315

INSTRUMET 19" 3Ux350mm Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal carry handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6019315

INSTRUMET 19" 3Ux350mm
product added to your basket

Light grey/window grey RAL 7035/7040
157x516x350mm

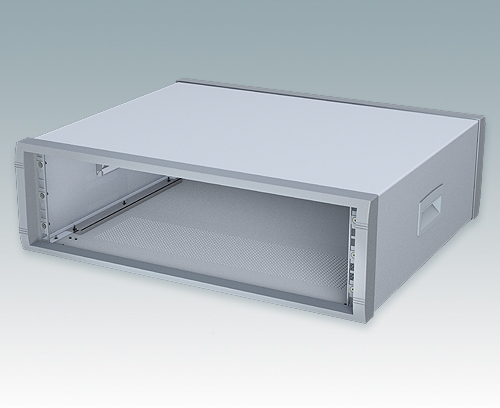

M6019325 INSTRUMET 19" 3Ux450mm

M6019325

INSTRUMET 19" 3Ux450mm Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Desktop version with ABS sides handles. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With side handles

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), ABS side handles (x2), ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6019325

INSTRUMET 19" 3Ux450mm
product added to your basket

Light grey/window grey RAL 7035/7040
157x516x450mm

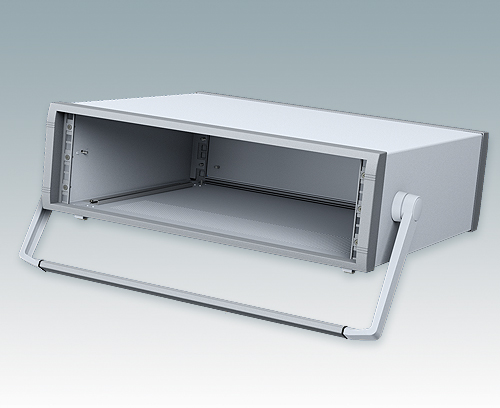

M6019335 INSTRUMET 19" 3Ux450mm

M6019335

INSTRUMET 19" 3Ux450mm Stylish 19" instrument case for mounting 3U subracks, chassis or front panels. Portable version with metal carry handle/bail arm. Robust design with two die cast front bezels and fabricated case body. The base panel and rear panel are ventilated. Internal chassis runners support the equipment. Supplied with pre-fitted with ABS tilt feet.

Version With handle/bail arm

Supply Front bezel (x2), top cover, ventilated base and rear panel, chassis runner (x2), carry handle bar, ABS feet (x2), ABS tilt legs (x2), M4 x 10 mm (x8), M4 x 12 mm (x4), M3 x 8 mm (x10). Supplied fully assembled.

M6019335

INSTRUMET 19" 3Ux450mm
product added to your basket

Light grey/window grey RAL 7035/7040
157x516x450mm
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
M6010001 Front panel 3Ux10.5"

M6010001

Front panel 3Ux10.5" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297.

Supply Front panel

M6010001

Front panel 3Ux10.5"
product added to your basket

Matt anodised
269.2x3x132.5mm
M6019001 Front panel 3Ux19"

M6019001

Front panel 3Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Front panel

M6019001

Front panel 3Ux19"
product added to your basket

Matt anodised
482.6x3x132.5mm
M6019010 Front panel 1Ux19"

M6019010

Front panel 1Ux19" Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Supply Panel

M6019010

Front panel 1Ux19"
product added to your basket

Matt anodised
482.6x3x43.6mm
M6019011 Front panel 1Ux19" vented

M6019011

Front panel 1Ux19" vented Anodised aluminium front panel according to 19" rack standard DIN 41494 and IEC 297-1.

Version With ventilation slots

Supply Panel

M6019011

Front panel 1Ux19" vented
product added to your basket

Matt anodised
482.6x3x43.6mm
