Compare our desktop instrument enclosures
In this blog we provide an easy to use camparison between each of our desktop instrument enclosure ranges to help your evaluation and specification process.
Compare Standard Features:
| Range | Applications | Sizes | Dimensions | PCBs, Mounting |
|---|---|---|---|---|
| Unidesk | Desktop, wall | 3 | 200x200x102mm to 400x200x102mm | Single, screw pillars |
| Minimet | Desktop | 8 | 134x130x38mm to 174x240x70mm |
Single, screw pillars |
| Unicase | Desktop | 10 | 50x130x180mm to 134x474x300mm | Multiple, guide rails |
| Unimet-Plus | Desktop, portable | 6 | 50x230x193mm to 150x350x263mm | Multiple, guide rails |
| Unimet | Desktop, portable | 6 | 50x230x190mm to 150x350x260mm | Single, screw pillars |
| Technomet | Desktop, portable | 8 | 75x225x200mm to 150x350x275mm | Multiple, pillars/guide rails |
More Standard Features:
| Range | Removable Panels | Handle | IP Rating | Standard Colours |
|---|---|---|---|---|
| Unidesk | Front, rear | No | IP 54 | Light grey, RAL 7035 Black, RAL 9005 |
| Minimet | Front, rear, base | No | No | Light grey, RAL 7035 |
| Unicase | Top, base, front, rear | No | No | Light grey, RAL 7035 Black, RAL 9005 |
| Unimet-Plus | Front, rear | Adjustable handle/tilt bar | No | Light grey, RAL 7035 Window grey, RAL 7040 |
| Unimet | Front, rear | Adjustable handle/tilt bar | No | Light grey, RAL 7035 Window grey, RAL 7040 |
| Technomet | Front, rear | Adjustable handle/tilt bar | No | Light grey, RAL 7035 Anthracite, RAL 7016 |
Compare Customising Options:
| Range | Custom Height | Custom Depth | Custom Width | Ventilation | Holes/Cutouts | Digital Printing |
|---|---|---|---|---|---|---|
| Unidesk | No | No | Yes | Yes | Yes | Yes |
| Minimet | No | Yes | Yes | Yes | Yes | Yes |
| Unicase | Yes | Yes | Yes | Yes | Yes | Yes |
| Unimet-Plus | Yes | Yes | Yes | Yes | Yes | Yes |
| Unimet | Yes | Yes | Yes | Yes | Yes | Yes |
| Technomet | Yes | Yes | Yes | Yes | Yes | Yes |

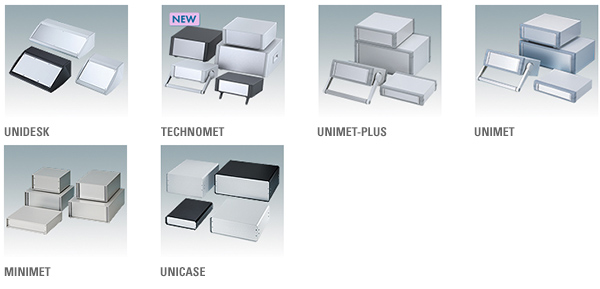

UNIDESK aluminium sloping front desktop enclosures are rated to IP 54 but can also be specified without seals, making them more cost effective. Can also be wall mounted (with accessory kit). Pre-punched PCB fixing points in the base. View the specifications, watch the video to see an exploded view.
MINIMET enclosures for small and portable electronics. Base panel pre-fitted with four M3 PCB screw pillars. Can be specified with anodised or painted front and rear panels (accessories). Front panels recessed by 8 mm or 14 mm. Includes four self-adhesive non-slip feet. View the specifications, watch the video.
UNICASE offers rapid access to your electronics thanks to its chassis-based construction. PCBs slide in and out on guide rails in the chassis extrusions. Recessed front panel protects controls. Very easy to customise. View the specifications, watch this video to see an exploded view.
UNIMET-PLUS advanced instrument enclosures. PCBs slide in on four clip-in polyamide guides (included as standard). Carry handle doubles as an adjustable desk stand. Recessed rear panel. Four non-slip rubber feet included (moulded tilt feet available as an accessory). View all the features here, watch the video.
UNIMET – similar to UNIMET-PLUS but accommodates a single PCB mounted on screw pillars. Available with adjustable carry handle/desk stand (standard option) and tilt feet (accessory). See all the specifications, watch the video.
TECHNOMET - advanced desktop/portable instrument enclosures engineered to fine tolerances to match the high quality aesthetics and ergonomics usually found only on moulded plastic enclosures. Flush-fit diecast front and rear bezels. Concealed case and fixing screws. View the full specifications and watch the video to see an exploded view.
Next Step...
- Get A Quote
- specify your preferred model
- specify a product from that range
- click the ‘Add to my list’ button with the basket icon
- tick the tickbox marked ‘Please send me a written quotation…’ - Get Drawings
- register for 3D models by specifying your preferred model
- specify a product from that range
- choose a 3D model in your preferred format (stp, sat or x_t)
- then either log in (existing registered user) or click the link on that page to reveal a pop-up box outlining the simple four-step registration procedure. - Contact Us – complete the online contact form. Email us with your requirements. You can attach documents (maximum 10MB).
- Need more help? Contact our sales team for expert technical advice – ask them about our customising services.
