Unimet-Plus

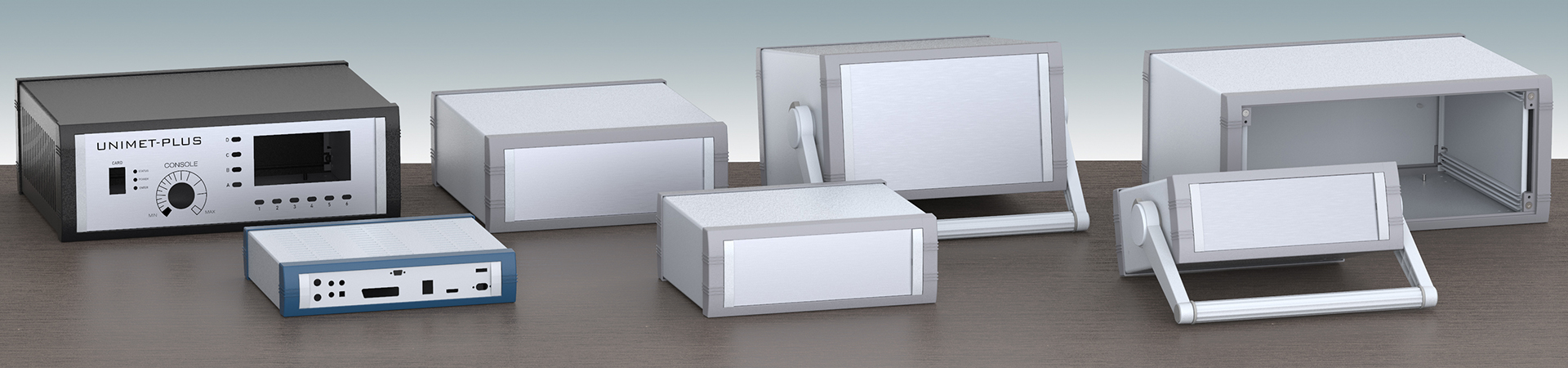

Stylish and versatile instrument enclosures

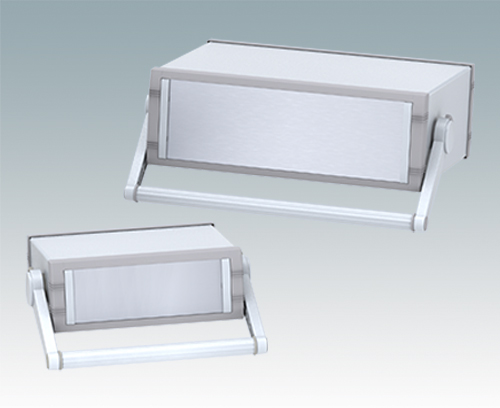

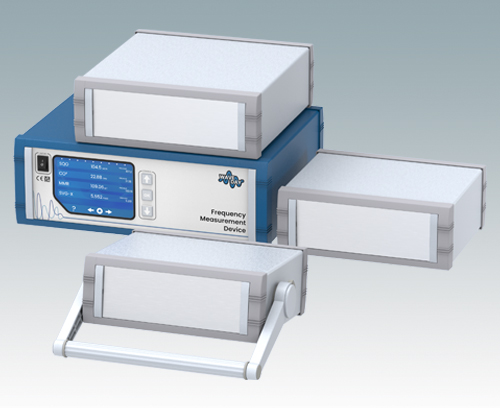

  • Advanced aluminium instrument enclosures with or without a tilt/swivel carry handle
  • Robust and versatile design in six sizes

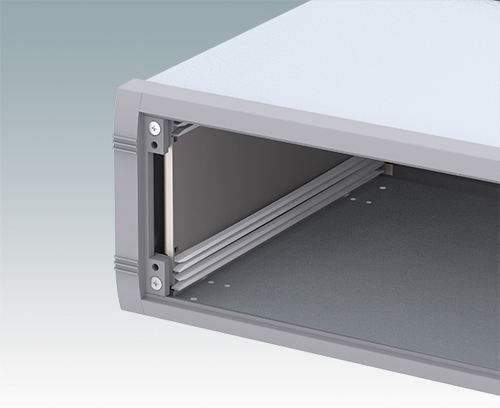

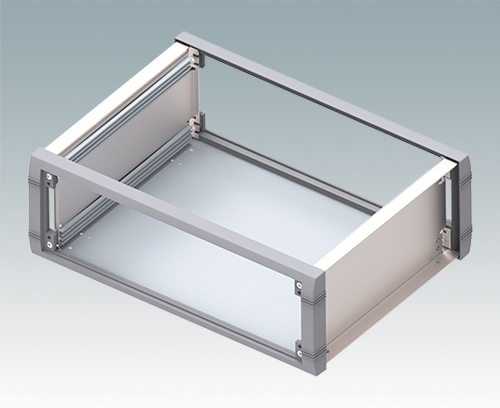

  • Internal chassis with horizontal guide positions for slide-in PCBs
  • Four snap-in polyamide PCB guides included

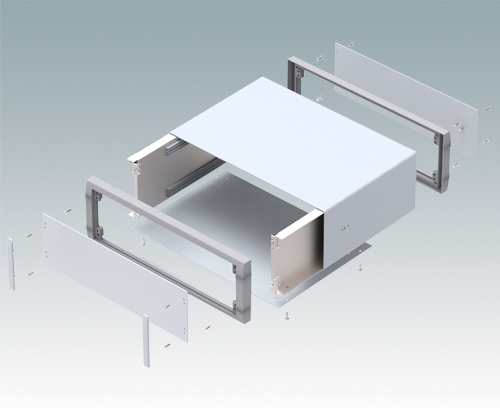

  • Stylish die cast front and rear bezels assembled to the folded aluminium case body

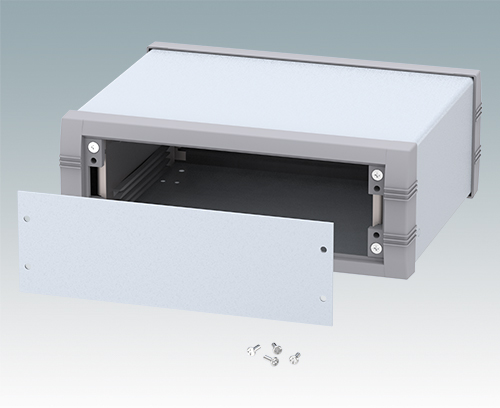

  • Removable rear panel - recessed for protection of connectors, switches etc.

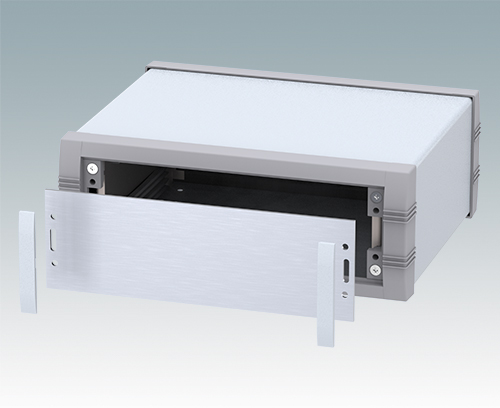

  • Recessed aluminium front panel (accessory)
  • Four non-slip rubber feet included

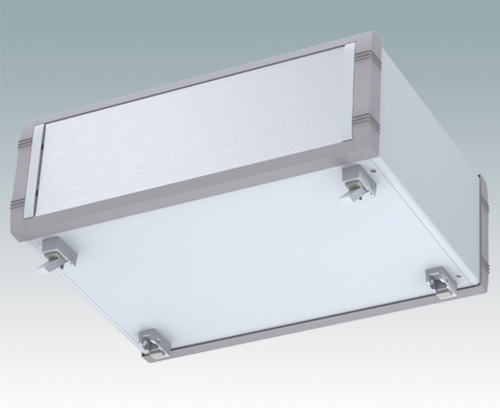

  • Accessory moulded tilt feet available.

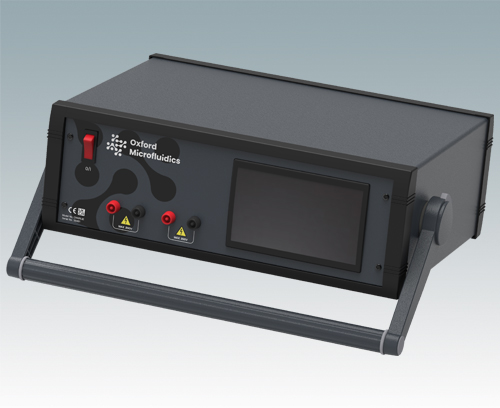

Order your own fully customised version learn more here >>
