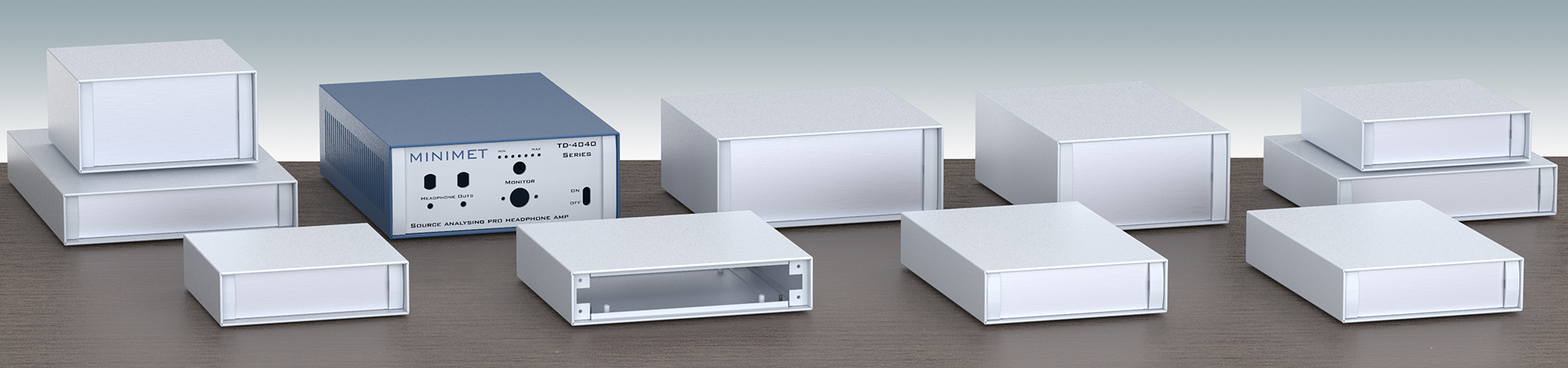

Minimet

For small desktop and portable electronics

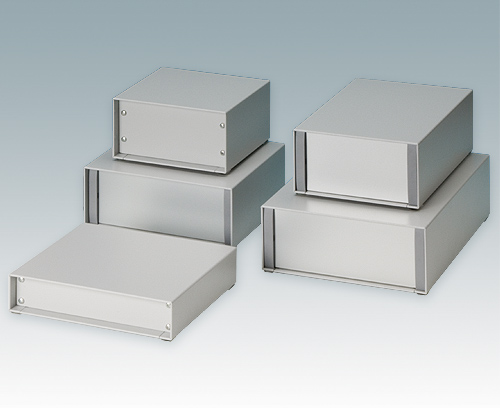

  • Compact aluminium instrument enclosures in eight standard sizes

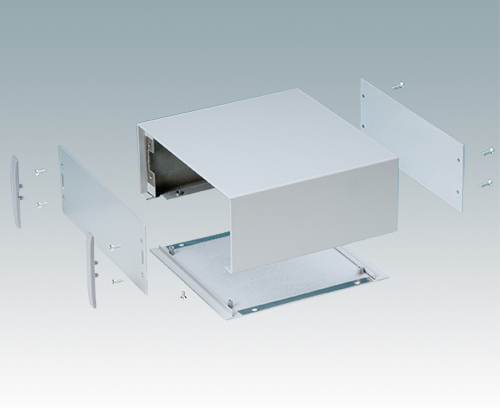

  • Stylish, lightweight and versatile design, simple and fast assembly technique

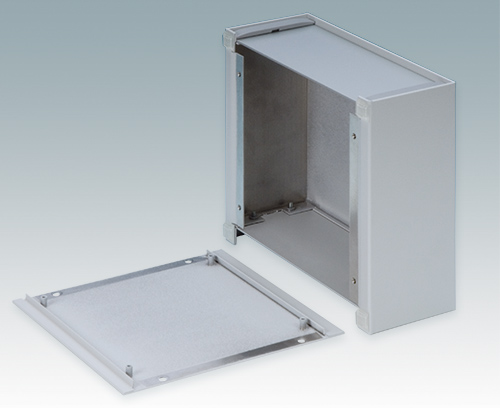

  • Removable base panel pre-fitted with four M3 PCB screw pillars

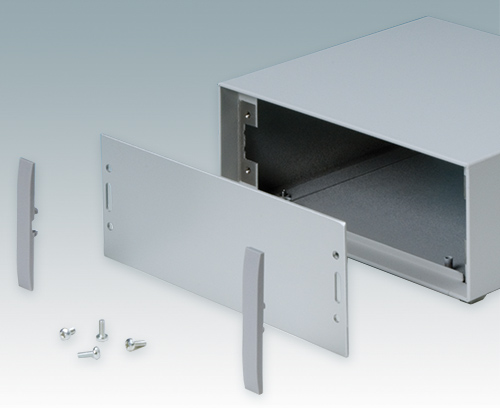

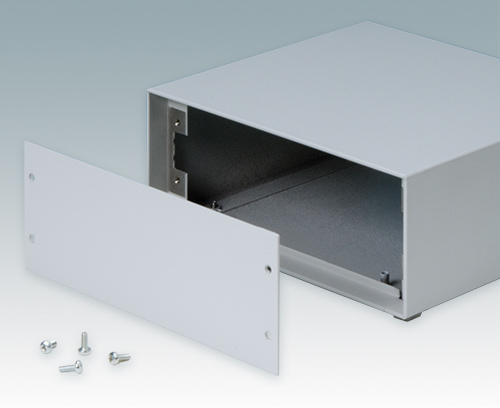

  • Accessories: anodised front/rear panels and painted front/rear panels

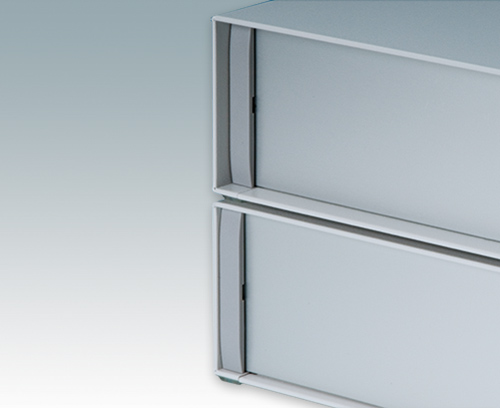

  • Front panels are recessed by 8 mm or 14 mm
  • Four self-adhesive non-slip feet included.

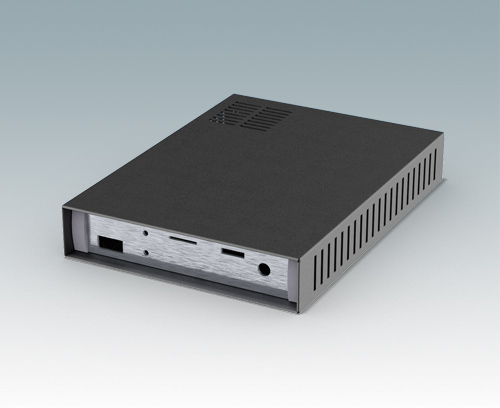

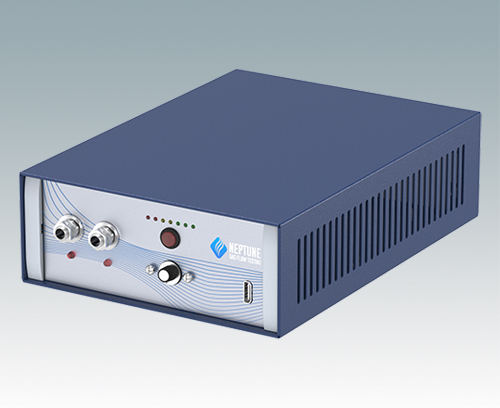

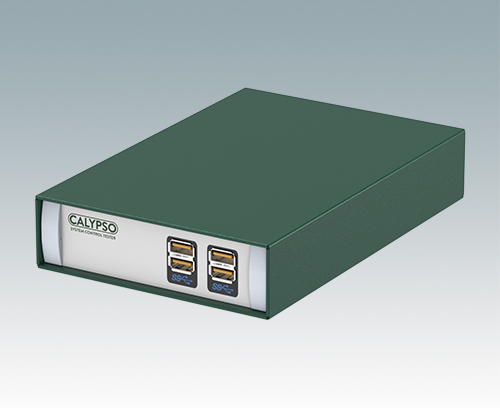

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

Medical and wellness devices, test and measurement equipment, industrial control, peripheral devices and interfaces, switchboxes, communications and laboratory equipment.
M5113115 MINIMET 1

M5113115

MINIMET 1 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5113115

MINIMET 1
product added to your basket

Light grey RAL 7035
134.5x130x38.5mm
M5113125 MINIMET 2

M5113125

MINIMET 2 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5113125

MINIMET 2
product added to your basket

Light grey RAL 7035
134.5x130x70mm
M5113215 MINIMET 3

M5113215

MINIMET 3 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5113215

MINIMET 3
product added to your basket

Light grey RAL 7035
134.5x200x38.5mm
M5113225 MINIMET 4

M5113225

MINIMET 4 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5113225

MINIMET 4
product added to your basket

Light grey RAL 7035
134.5x200x70mm
M5117115 MINIMET 5

M5117115

MINIMET 5 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5117115

MINIMET 5
product added to your basket

Light grey RAL 7035
174.5x160x38.5mm
M5117125 MINIMET 6

M5117125

MINIMET 6 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5117125

MINIMET 6
product added to your basket

Light grey RAL 7035
174.5x160x70mm
M5117215 MINIMET 7

M5117215

MINIMET 7 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5117215

MINIMET 7
product added to your basket

Light grey RAL 7035
174.5x240x38.5mm
M5117225 MINIMET 8

M5117225

MINIMET 8 Modern instrument case for small desktop and portable electronics. Folded aluminium top and base covers are assembled by hidden fixing screws on the underside. Front and rear apertures are recessed by 8 mm and 14 mm at the opposite ends. Order front and rear panels separately.

Supply Top cover, base panel, 4 self-adhesive non-slip feet and fixing screws. Supplied assembled.

M5117225

MINIMET 8
product added to your basket

Light grey RAL 7035
174.5x240x70mm

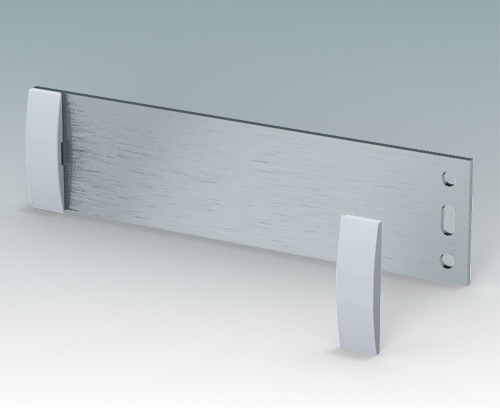

M5100510 Front/rear panel AN (size 1 & 3)

M5100510

Front/rear panel AN (size 1 & 3) Anodised aluminium front/rear panel for MINIMET size 1 and 3 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

M5100510

Front/rear panel AN (size 1 & 3)
product added to your basket

Matt anodised
129.5x2x33.6mm

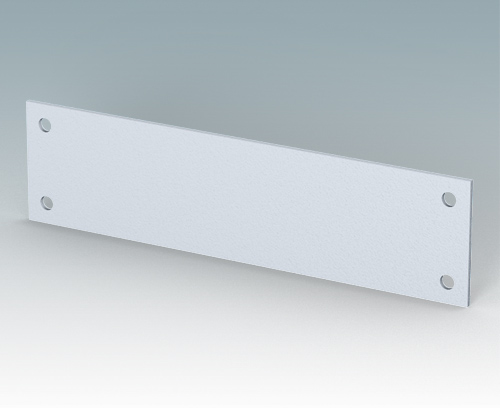

M5100515 Front/rear panel PN (size 1 & 3)

M5100515

Front/rear panel PN (size 1 & 3) Painted aluminium front/rear panel for MINIMET size 1 and 3 cases

Supply Painted panel (panel fixings supplied with case).

M5100515

Front/rear panel PN (size 1 & 3)
product added to your basket

Light grey RAL 7035
129.5x1.5x33.6mm

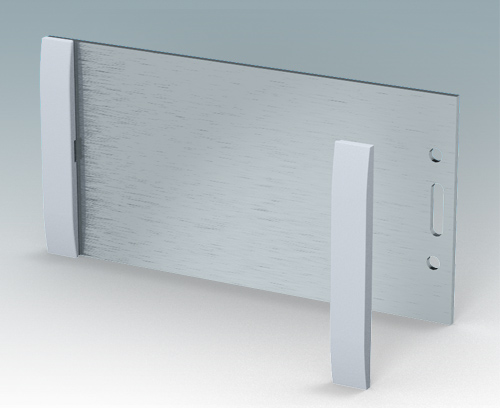

M5100520 Front/rear panel kit AN (size 2 & 4)

M5100520

Front/rear panel kit AN (size 2 & 4) Anodised aluminium front/rear panel for MINIMET size 2 and 4 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

M5100520

Front/rear panel kit AN (size 2 & 4)
product added to your basket

Matt anodised
129.5x2x65.1mm

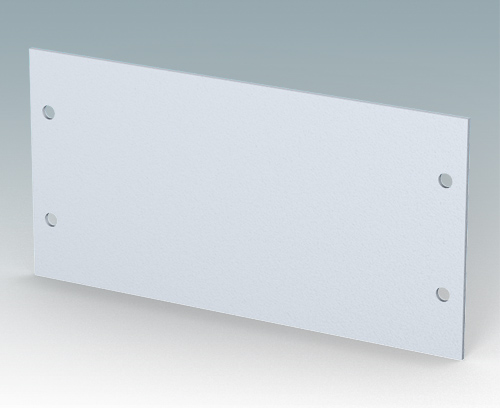

M5100525 Front/ rear panel PN (size 2 & 4)

M5100525

Front/ rear panel PN (size 2 & 4) Painted aluminium front/rear panel for MINIMET case 2 and 4 cases

Supply Painted panel (panel fixings supplied with case).

M5100525

Front/ rear panel PN (size 2 & 4)
product added to your basket

Light grey RAL 7035
129.5x1.5x65.1mm

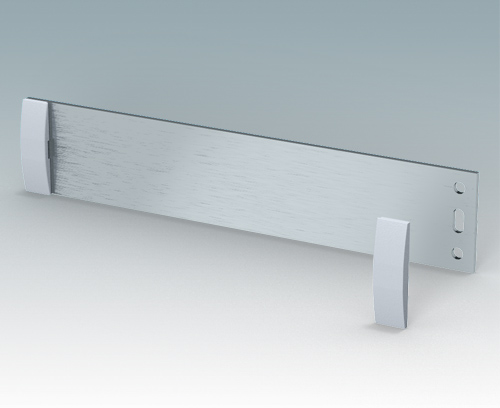

M5100550 Front/rear panel kit AN (size 5 & 7)

M5100550

Front/rear panel kit AN (size 5 & 7) Anodised aluminium front/rear panel for MINIMET size 5 and 7 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

M5100550

Front/rear panel kit AN (size 5 & 7)
product added to your basket

Matt anodised
169.5x2x33.6mm

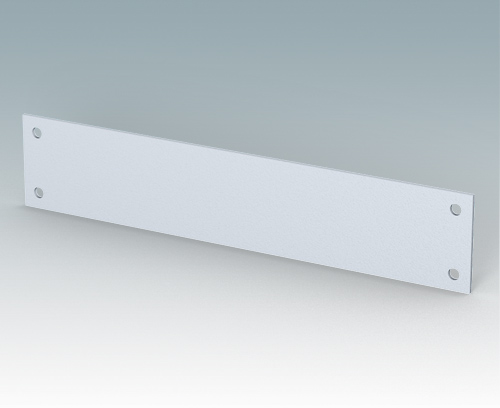

M5100555 Front/rear panel PN (size 5 & 7)

M5100555

Front/rear panel PN (size 5 & 7) Painted aluminium front/rear panel for MINIMET size 5 and 7 cases

Supply Painted panel (panel fixings supplied with case).

M5100555

Front/rear panel PN (size 5 & 7)
product added to your basket

Light grey RAL 7035
169.5x1.5x33.6mm

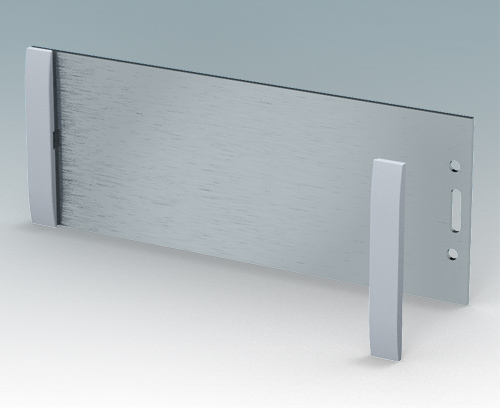

M5100560 Front/rear panel kit AN (size 6 & 8)

M5100560

Front/rear panel kit AN (size 6 & 8) Anodised aluminium front/rear panel for MINIMET size 6 and 8 cases

Supply Anodised panel, 2 ABS trims (panel fixings supplied with case).

M5100560

Front/rear panel kit AN (size 6 & 8)
product added to your basket

Matt anodised
169.5x2x65.1mm

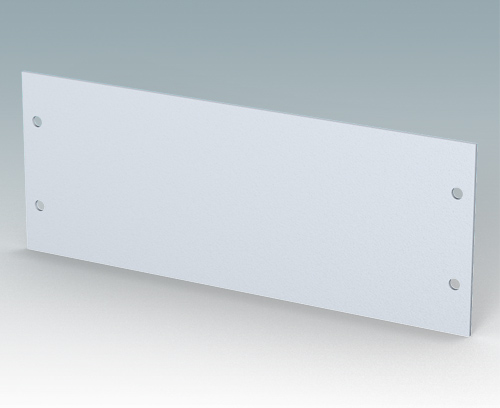

M5100565 Front/rear panel PN (size 6 & 8)

M5100565

Front/rear panel PN (size 6 & 8) Painted aluminium front/rear panel for MINIMET size 6 and 8 cases

Supply Painted panel (panel fixings supplied with case).

M5100565

Front/rear panel PN (size 6 & 8)
product added to your basket

Light grey RAL 7035
169.5x1.5x65.1mm
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket

Zinc coated
6mm
