Datamet

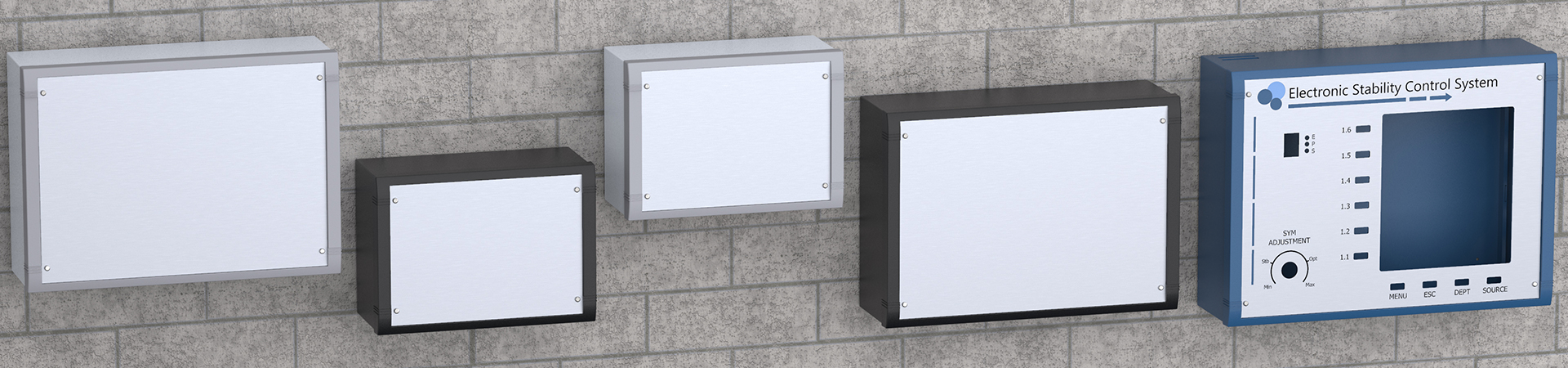

Wall mount enclosures for indoor electronic instruments, controls and HMI

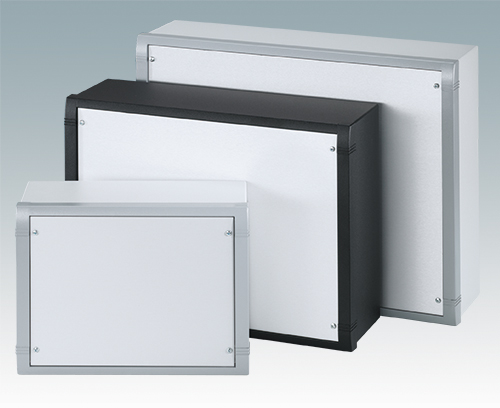

  • Very modern design in three standard sizes

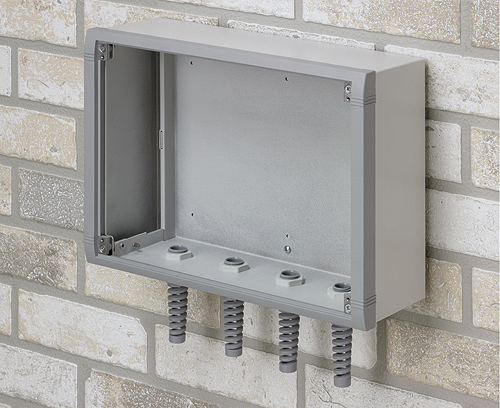

  • Total access to the electronics during installation and servicing
  • Rear section includes holes for fitting PCBs and internal mounting plates

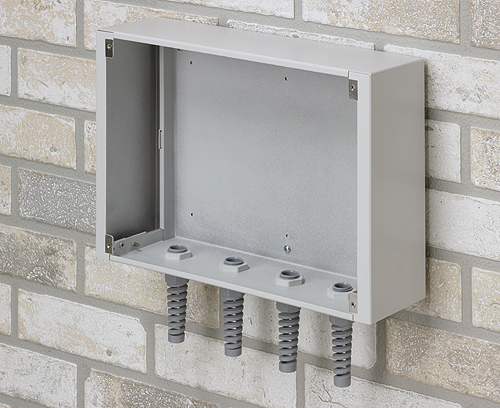

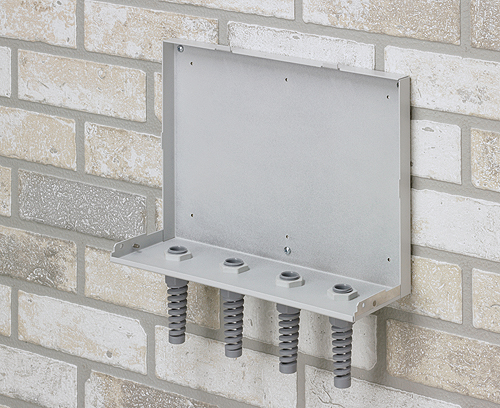

  • Cable glands and connectors can be mounted to the underside of the rear section

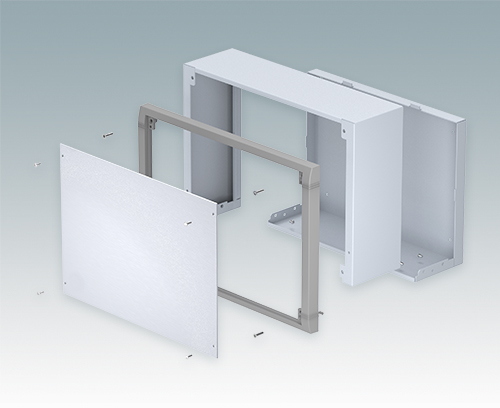

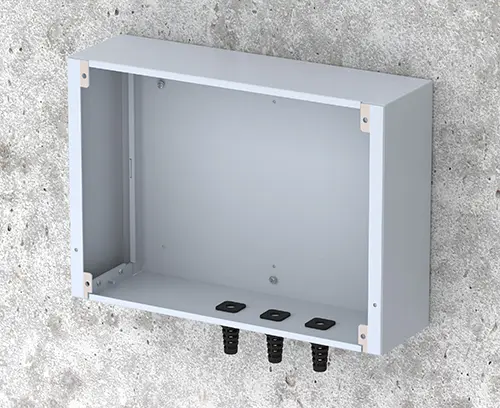

  • Top section fits over the rear panel and also secures the front bezel

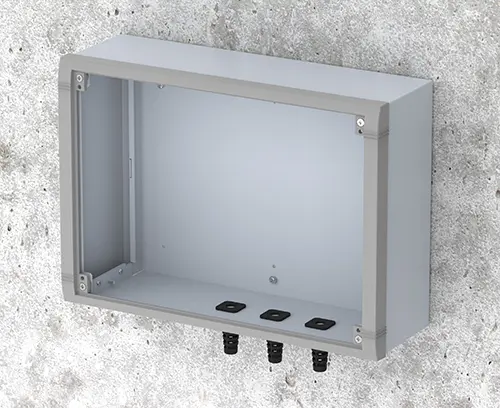

  • Die cast front bezel provides a modern look to the cases
  • Front panels recessed in the bezel to protect controls

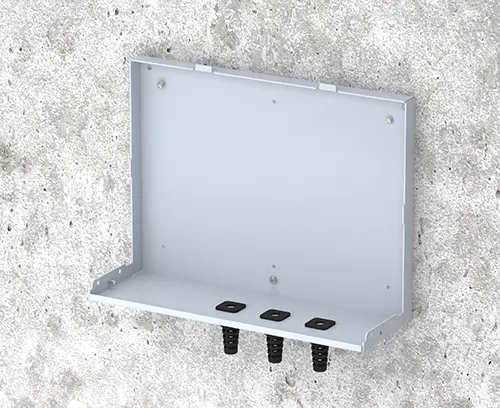

  • Pre-punched wall mounting points in the rear panel
  • Four M4 earth studs provided inside
  • Two standard colour combinations grey or black
  • All fixings supplied with case

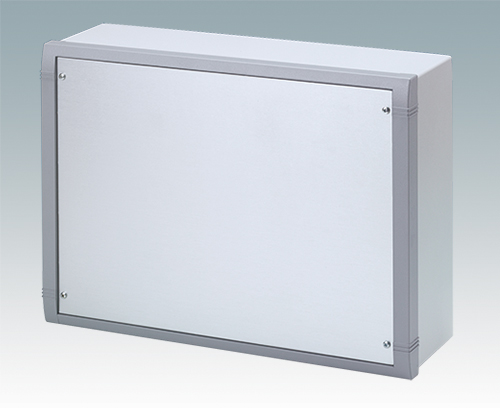

  • Accessory anodised aluminium front panels
  • Accessory internal mounting plate kit and PCB screw pillars.

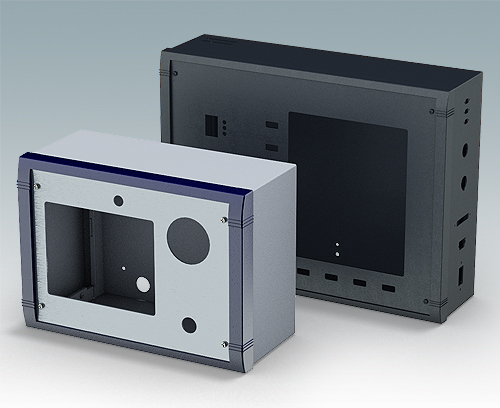

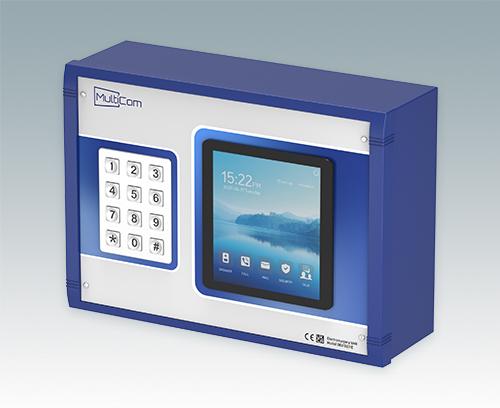

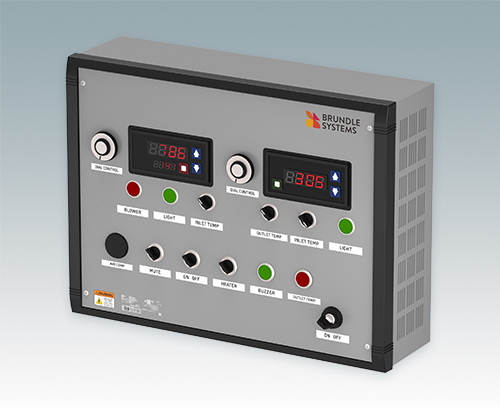

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

Modern wall cases for indoor applications such as control systems, factory processing, security systems, machine control, measurement devices and detection equipment.

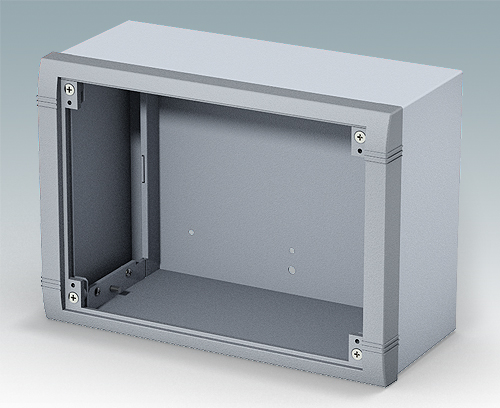

M5825105 Datamet S

M5825105

Datamet S Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear section. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).

M5825105

Datamet S
product added to your basket

Light grey/window grey RAL 7035/7040
250x180x116.5mm

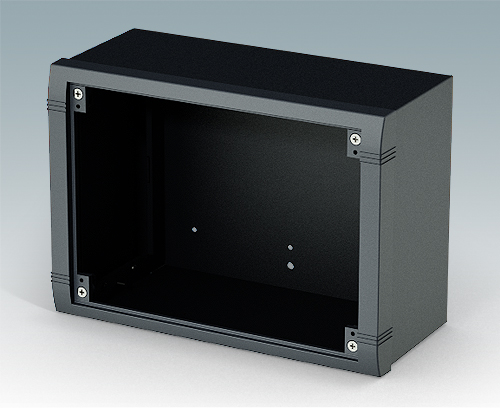

M5825109 Datamet S

M5825109

Datamet S Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear section. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).

M5825109

Datamet S
product added to your basket

Black RAL 9005
250x180x116.5mm

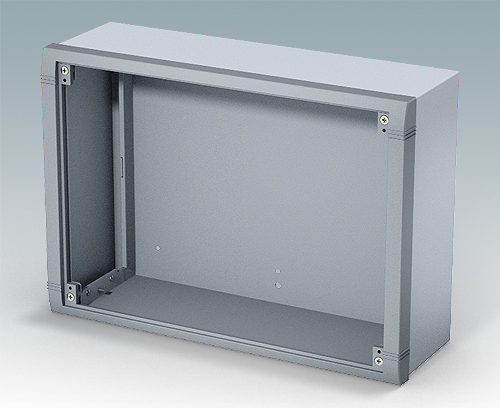

M5835105 Datamet M

M5835105

Datamet M Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).

M5835105

Datamet M
product added to your basket

Light grey/window grey RAL 7035/7040
350x250x116.5mm

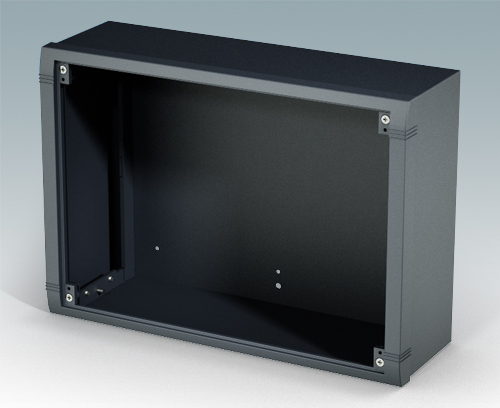

M5835109 Datamet M

M5835109

Datamet M Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).

M5835109

Datamet M
product added to your basket

Black RAL 9005
350x250x116.5mm

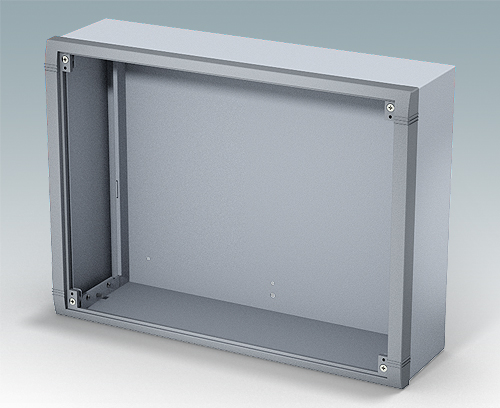

M5840105 Datamet L

M5840105

Datamet L Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).

M5840105

Datamet L
product added to your basket

Light grey/window grey RAL 7035/7040
400x300x116.5mm

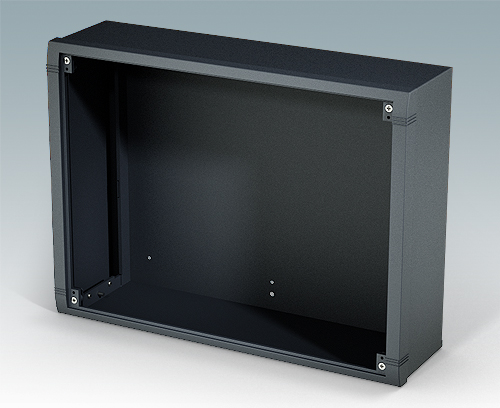

M5840109 Datamet L

M5840109

Datamet L Modern aluminium wall mount enclosure for indoor electronics equipment. The enclosure provides total access to the electronics during installation on the wall. Stylish design with die cast front bezel, top cover and 'L' shape rear panel. Order front panels separately.

Supply Front bezel, top panel, L shaped rear section, M4 x 16 mm (x4), M4 x 6 mm (x4) and M3 x 10 mm (x4).

M5840109

Datamet L
product added to your basket

Black RAL 9005
400x300x116.5mm

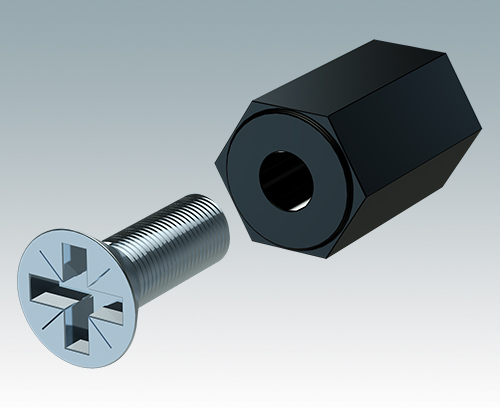

M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

M5600001

PCB mounting kit
product added to your basket

Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket

Zinc coated
6mm

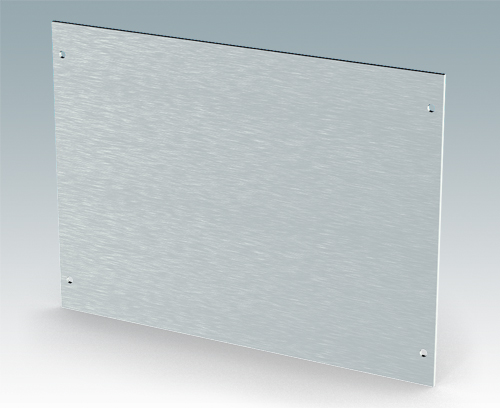

M5800025 Front panel S

M5800025

Front panel S Anodised aluminium front panel for DATAMET S enclosures.

Supply Front panel (fixings supplied with the cases).

M5800025

Front panel S
product added to your basket

Matt anodised
220x2x159.5mm

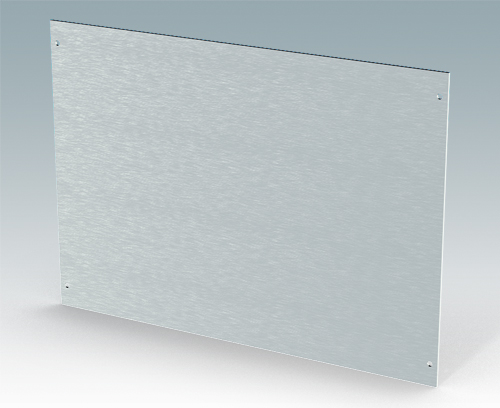

M5800035 Front panel M

M5800035

Front panel M Anodised aluminium front panel for DATAMET M enclosures.

Supply Front panel (fixings supplied with the cases).

M5800035

Front panel M
product added to your basket

Matt anodised
320x2x229.5mm
M5800040 Front panel L

M5800040

Front panel L Anodised aluminium front panel for DATAMET L enclosures.

Supply Front panel (fixings supplied with the cases).

M5800040

Front panel L
product added to your basket

Matt anodised
370x2x279.5mm

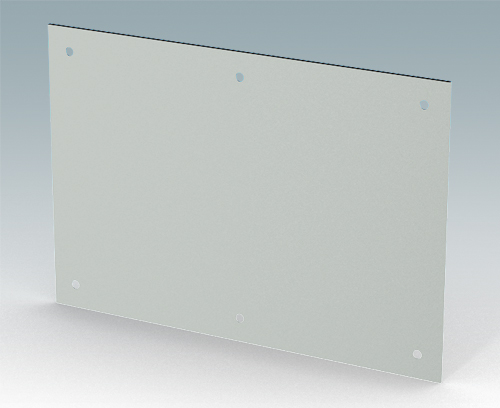

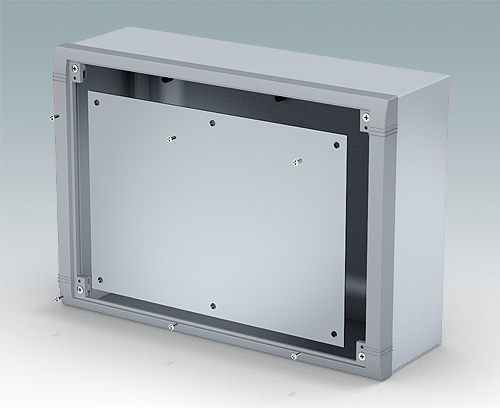

M5804125 Mounting plate kit S

M5804125

Mounting plate kit S Internal mounting plate kit for DATAMET S enclosures. For mounting PCBs and electronic assemblies. The mounting plate is fitted to pre-punched holes in the enclosure rear panel with the nylon pillars and screws supplied in the kit.

Supply Mounting plate, M3 x 10 mm threaded pillar (x6) and M3 x 6 mm fixing screw (x12).

M5804125

Mounting plate kit S
product added to your basket

Natural finish
175x120x1.5mm
M5804135 Mounting plate kit M

M5804135

Mounting plate kit M Internal mounting plate kit for DATAMET M enclosures. For mounting PCBs and electronic assemblies. The mounting plate is fitted to pre-punched holes in the enclosure rear panel with the nylon pillars and screws supplied in the kit.

Supply Mounting plate, M3 x 10 mm threaded pillar (x6) and M3 x 6 mm fixing screw (x12).

M5804135

Mounting plate kit M
product added to your basket

Natural finish
275x190x1.5mm

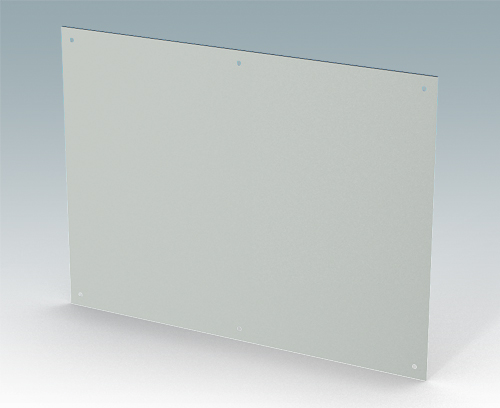

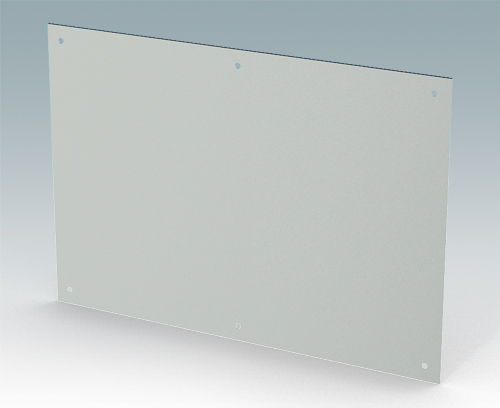

M5804140 Mounting plate kit L

M5804140

Mounting plate kit L Internal mounting plate kit for DATAMET L enclosures. For mounting PCBs and electronic assemblies. The mounting plate is fitted to pre-punched holes in the enclosure rear panel with the nylon pillars and screws supplied in the kit.

Supply Mounting plate, M3 x 10 mm threaded pillar (x6) and M3 x 6 mm fixing screw (x12).

M5804140

Mounting plate kit L
product added to your basket

Natural finish
325x240x1.5mm
