Versamet

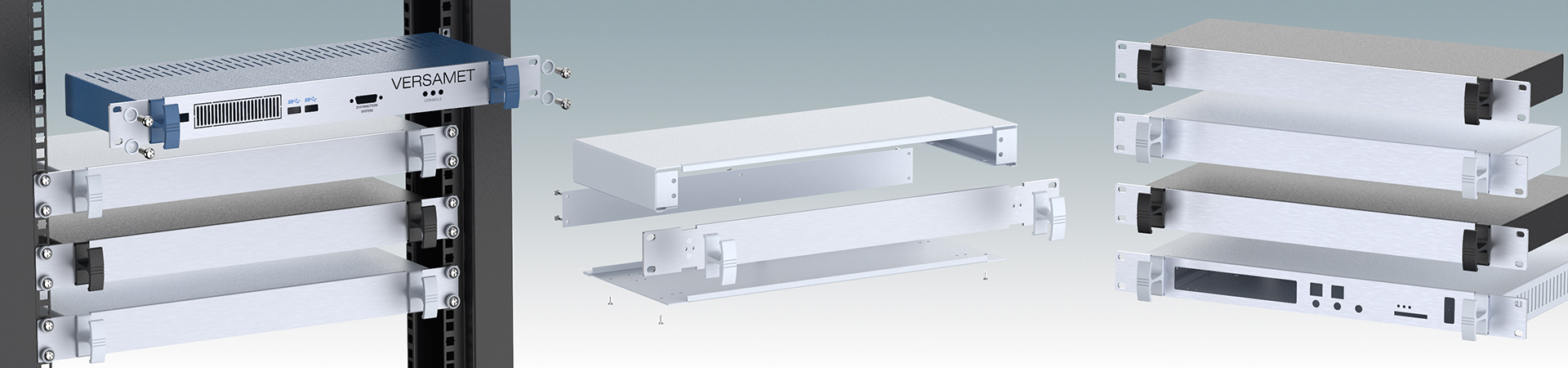

Versatile 1U rack mount enclosures to DIN 41494 and IEC 60297-3

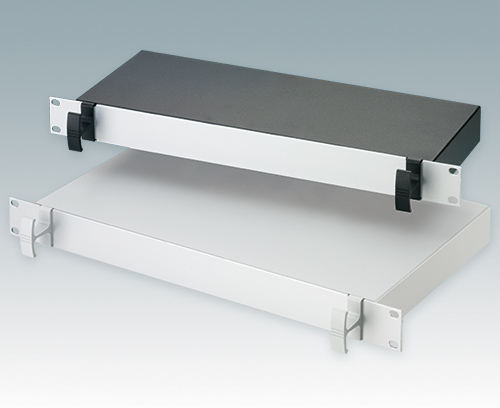

  • Modern aluminium 19" rack mount cases in two standard colours, grey or black

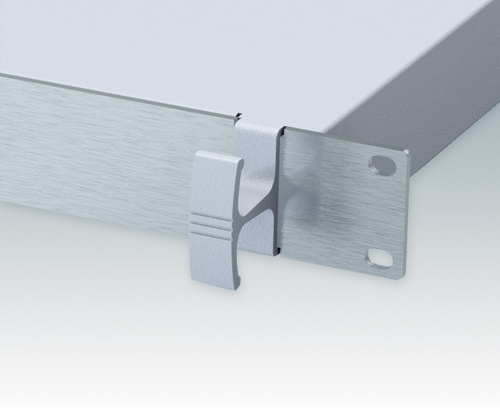

  • Attractive design incorporating unique 'comfort-handles'

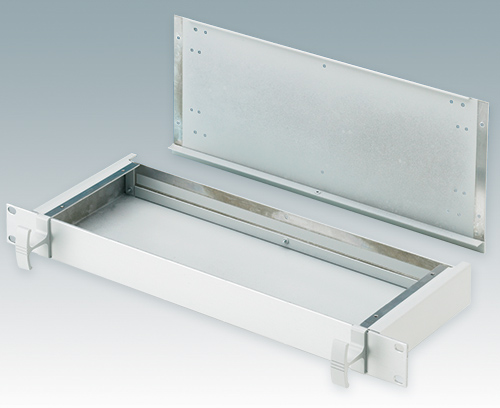

  • Robust folded case body with removable base panel

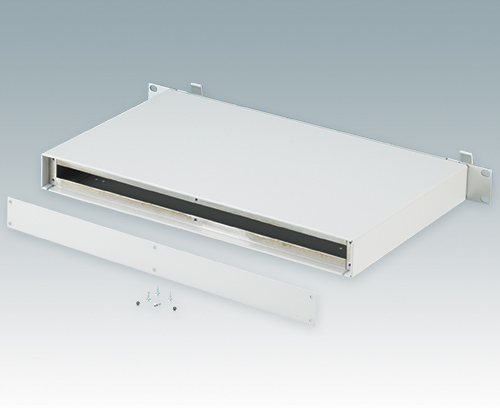

  • Removable rear panel
  • Anodised aluminium 1U x 19" front panel
  • Mounting holes in base for PCBs
  • Optional moulded feet can be fitted for desktop use
  • Accessory PCB mounting pillars
  • Cases supplied fully assembled.

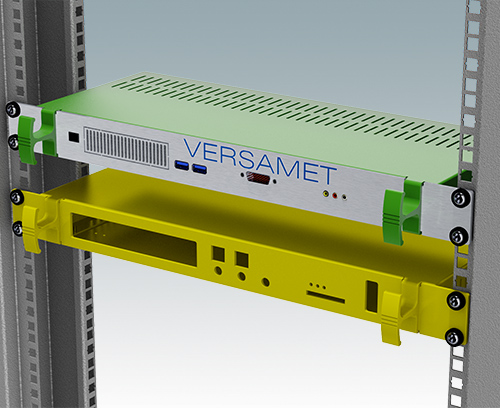

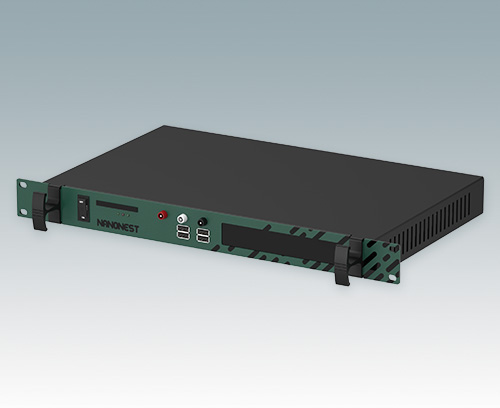

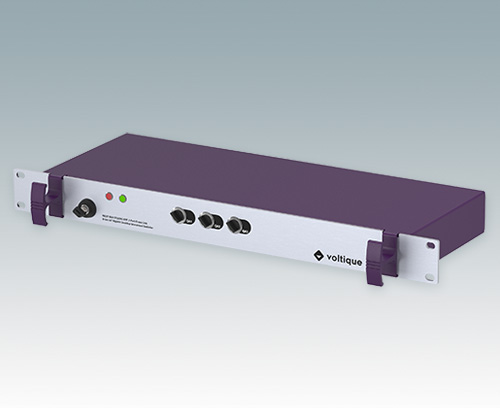

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

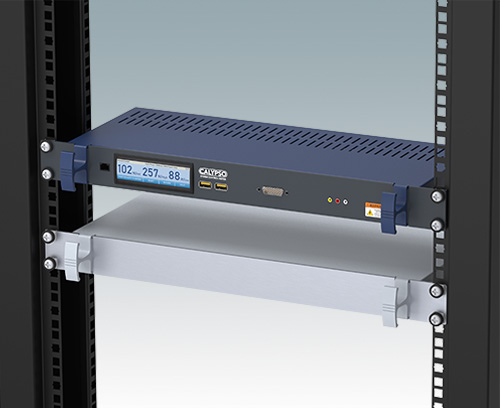

Rack mounted electronics such as networking and communications equipment, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.
M4919115 VERSAMET 19" 1Ux165mm

M4919115

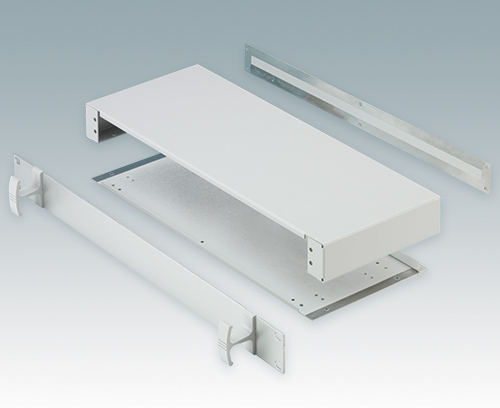

VERSAMET 19" 1Ux165mm Modern and versatile 19" rack cases with anodised front panel and integrated 'comfort-handles'. Folded aluminium case body with all fixings hidden on the underside. Removable base and rear panel for easy access.

Supply 1U x 19" front panel, two handles, top cover, base panel, rear panel, M3 x 8 mm (x6), M3 x 8 mm (x4), M4 nut and washer (x4). Supplied assembled.

M4919115

VERSAMET 19" 1Ux165mm
product added to your basket

Light grey RAL 7035
44x483x165mm
M4919119 VERSAMET 19" 1Ux165mm

M4919119

VERSAMET 19" 1Ux165mm Modern and versatile 19" rack cases with anodised front panel and integrated 'comfort-handles'. Folded aluminium case body with all fixings hidden on the underside. Removable base and rear panel for easy access.

Supply 1U x 19" front panel, two handles, top cover, base panel, rear panel, M3 x 8 mm (x6), M3 x 8 mm (x4), M4 nut and washer (x4). Supplied assembled.

M4919119

VERSAMET 19" 1Ux165mm
product added to your basket

Black RAL 9005
44x483x165mm
M4919125 VERSAMET 19" 1Ux265mm

M4919125

VERSAMET 19" 1Ux265mm Modern and versatile 19" rack cases with anodised front panel and integrated 'comfort-handles'. Folded aluminium case body with all fixings hidden on the underside. Removable base and rear panel for easy access.

Supply 1U x 19" front panel, two handles, top cover, base panel, rear panel, M3 x 8 mm (x6), M3 x 8 mm (x6), M4 nut and washer (x4). Supplied assembled.

M4919125

VERSAMET 19" 1Ux265mm
product added to your basket

Light grey RAL 7035
44x483x265mm
M4919129 VERSAMET 19" 1Ux265mm

M4919129

VERSAMET 19" 1Ux265mm Modern and versatile 19" rack cases with anodised front panel and integrated 'comfort-handles'. Folded aluminium case body with all fixings hidden on the underside. Removable base and rear panel for easy access.

Supply 1U x 19" front panel, two handles, top cover, base panel, rear panel, M3 x 8 mm (x6), M3 x 8 mm (x6), M4 nut and washer (x4). Supplied assembled.

M4919129

VERSAMET 19" 1Ux265mm
product added to your basket

Black RAL 9005
44x483x265mm
M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

M5600001

PCB mounting kit
product added to your basket

Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket

Zinc coated
6mm
M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M5600015

Case Feet Kit 1
product added to your basket

Light grey RAL 7035
34x17x16mm
M5600019 Case Feet Kit 1

M5600019

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M5600019

Case Feet Kit 1
product added to your basket

Black RAL 9005
34x17x16mm
M5600045 Case Feet Kit 2

M5600045

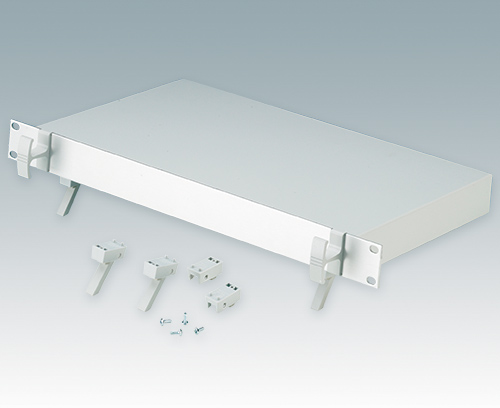

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M5600045

Case Feet Kit 2
product added to your basket

Light grey RAL 7035
34x17x16mm
M5600049 Case Feet Kit 2

M5600049

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M5600049

Case Feet Kit 2
product added to your basket

Black RAL 9005
34x17x16mm
M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
