UNIMET 19" Rack Mount Cases

Modern 19" rack mount enclosures to DIN 41494 and IEC 60297-3

  • Stylish range of 19" rack cases in aluminium

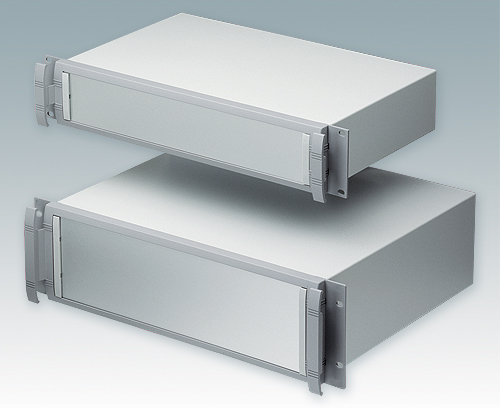

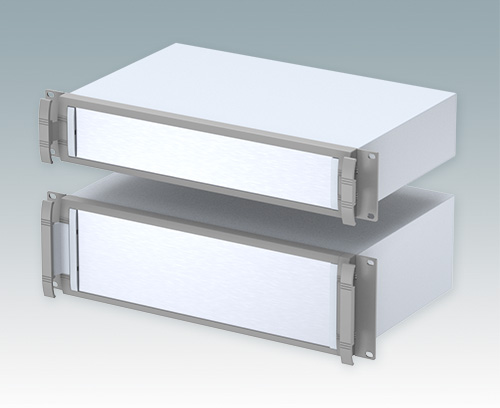

  • Heights: 2U & 3U in two standard depths
  • Attractive diecast front bezel incorporating unique 'comfort-handles' and rack mounting ears

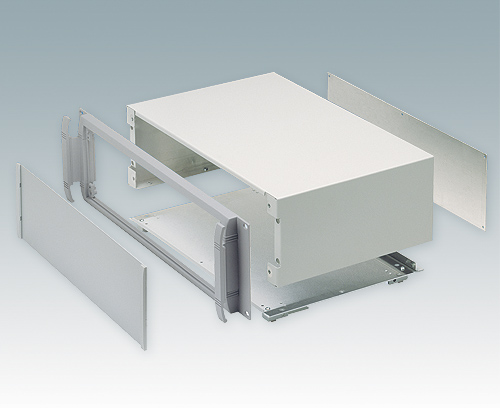

  • Robust folded case body with removable base

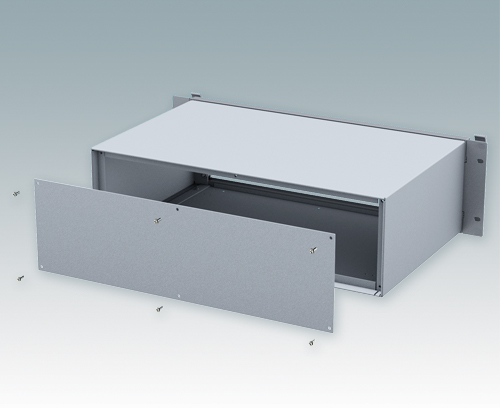

  • Removable rear panel

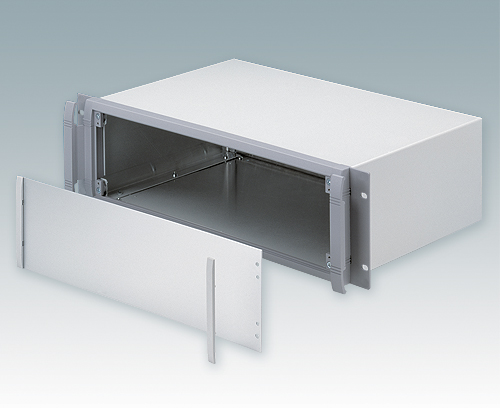

  • Front panel (accessory) recessed in bezel for location of membrane keypads
  • Mounting holes in base for PCBs

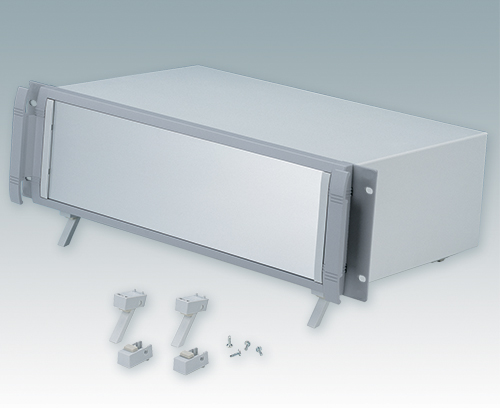

  • Moulded feet (accessories) can be fitted to the base panel for table top applications
  • Cases supplied fully assembled.

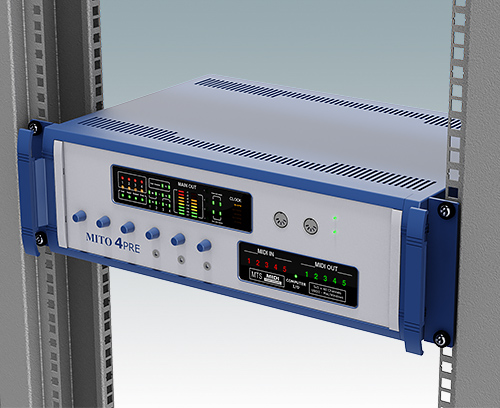

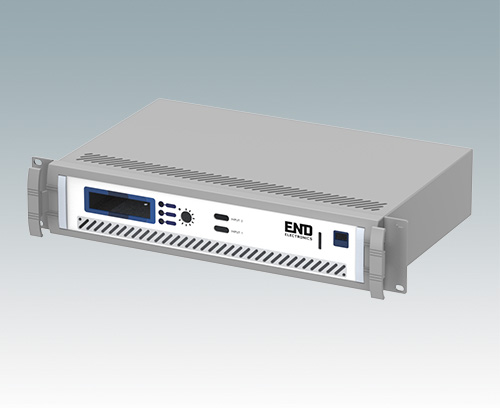

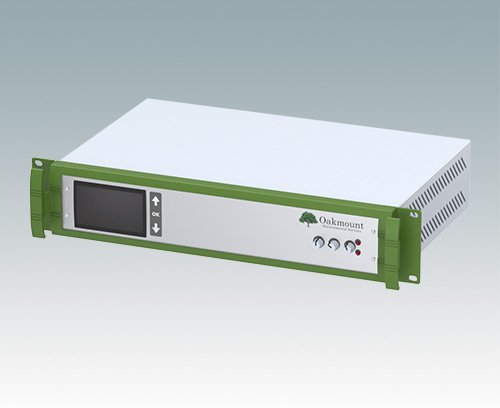

Order your own fully customised version learn more here >>

Generate PDF

We need your consent to load the video service (Vimeo).

We use a third-party service to embed our video content (Vimeo). This service may collect data about your activities. Please read our privacy policy and consent to the use of the service to watch this video.

Application Fields

Rack mounted electronics such as networking and communications equipment, industrial computers, sound and studio systems, laboratory instruments and industrial control systems.
M5619225 UNIMET 19" 2Ux280mm

M5619225

UNIMET 19" 2Ux280mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

M5619225

UNIMET 19" 2Ux280mm
product added to your basket

Light grey/window grey RAL 7035/7040
88x482.6x280mm
M5619235 UNIMET 19" 2Ux380mm

M5619235

UNIMET 19" 2Ux380mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

M5619235

UNIMET 19" 2Ux380mm
product added to your basket

Light grey/window grey RAL 7035/7040
88x482.6x380mm
M5619325 UNIMET 19" 3Ux280mm

M5619325

UNIMET 19" 3Ux280mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

M5619325

UNIMET 19" 3Ux280mm
product added to your basket

Light grey/window grey RAL 7035/7040
132.5x482.6x280mm
M5619335 UNIMET 19" 3Ux380mm

M5619335

UNIMET 19" 3Ux380mm Modern high quality 19" rack case with integrated 'comfort handles'. All aluminium design with highly attractive front bezel and fabricated case body. Removable base and rear panels for easy access. Open front panel aperture means the case does not have to be removed from the rack in order to access the electronics. Base panel is punched to accept accessory tilt feet. Order front panel separately.

Supply 19" front bezel, top cover, base panel, rear panel, M4 x 16 mm (x4), M3 x 8 mm (x6), M3 x 8 mm (x6) and M3 x 8 mm (x4). Supplied fully assembled.

M5619335

UNIMET 19" 3Ux380mm
product added to your basket

Light grey/window grey RAL 7035/7040
132.5x482.6x380mm
M5600001 PCB mounting kit

M5600001

PCB mounting kit Kit of ten M3 plastic PCB mounting pillars which can be positioned anywhere in the enclosure. Pillar height 10 mm. Fits to Ø3.2 mm hole in the case panel. Supplied with M3 fixing screws to secure to base panel.

If PCB or mounting plate fixing screws are required please see our screw kit M5600010.

Supply 10 Nylon PCB pillars and 10 M3 x 6 mm countersink fixing screws.

M5600001

PCB mounting kit
product added to your basket

Black RAL 9005
M5600010 PCB/Panel Fixing Screws, M3

M5600010

PCB/Panel Fixing Screws, M3

Pack of 100 M3 x 6 mm pan head pozi drive screws. Used for fitting PCBs and mounting plates to the threaded standoffs in our standard enclosures: TECHNOMET, MINIMET

Also suitable for use in combination with M5600001 PCB Mounting Kit, to secure PCBs to the plastic mounting pillars. Fixing points are provided in the following enclosures for this kit: COMBIMET 19", VERSAMET 19", UNIMET 19", UNIDESK, UNIMET, UNIMET-PLUS, DATAMET

These screws can also be used to replace the standard slotted case assembly screws supplied with our UNICASE enclosures — if pozi drive screws are preferred.

Additionally, this screw pack may be useful if your enclosure has been customised with M3 threaded inserts and pillars.

Supply 100 M3 x 6 mm pan head fixing screws (pozi drive PZ1).

M5600010

PCB/Panel Fixing Screws, M3
product added to your basket

Zinc coated
6mm
M5600015 Case Feet Kit 1

M5600015

Case Feet Kit 1 Universal case feet for all types of plastic and metal enclosures with max. 4 mm wall thickness. Call us for a free sample.

Version Without tilt legs.

Supply Foot moulding (x4), TPE non-slip insert (x4), self-tapping screw (x4).

M5600015

Case Feet Kit 1
product added to your basket

Light grey RAL 7035
34x17x16mm
M5600045 Case Feet Kit 2

M5600045

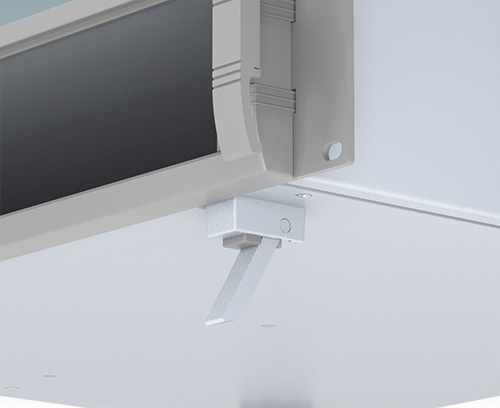

Case Feet Kit 2 Universal case feet with tilt legs for all types of plastic and metal enclosures with max. 4 mm wall thickness.

Tilt legs:
F Max. 200 N (TÜV SÜD tested: ASTM D642-00 - compression test)
Topple load 3.69 kg (TÜV SÜD tested: DEF STAN 00-35 Part 4 Issue 3 - topple test)

Call us for a free sample.

Version With tilt legs.

Supply Foot moulding (x4), tilt leg (x2), TPE non-slip insert (x4), self-tapping screw (x4).

M5600045

Case Feet Kit 2
product added to your basket

Light grey RAL 7035
34x17x16mm

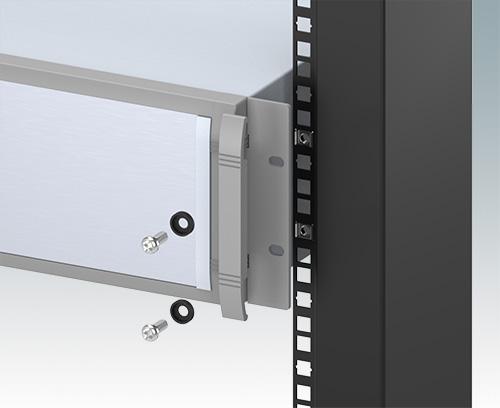

M5900016 19" mounting kit

M5900016

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm silver screw (x4) and black plastic cup washer (x4).

M5900016

19" mounting kit
product added to your basket
Black RAL 9005
M5900020 Front panel kit (2U)

M5900020

Front panel kit (2U) Anodised aluminium front panel kit for 2U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

M5900020

Front panel kit (2U)
product added to your basket

Matt anodised
392.5x2x67.1mm
M5900030 Front panel kit (3U)

M5900030

Front panel kit (3U) Anodised aluminium front panel kit for 3U Mettec and Unimet 19" cases. Supplied with two snap-in ABS trims which hide the assembly screws and act as a guide for membrane keypads or product labels.

Supply Front panel, 2 trims (fixings supplied with the cases)

M5900030

Front panel kit (3U)
product added to your basket

Matt anodised
392.5x2x111mm
M6000035 19" mounting kit

M6000035

19" mounting kit Mounting kit including all hardware for fitting a 19" rack case, subrack or front panel into a 19" rack.

Supply M6 caged nuts (x4), M6 x 16 mm screw (x4) and light grey plastic cup washer (x4).

M6000035

19" mounting kit
product added to your basket
Light grey RAL 7035
